Ingersoll Rand A300 Drilling Rig - For Sale


Name :	Ingersoll Rand A300 Drilling Rig - For Sale

ID :	WR1092

Year manufactured :	1994

Price :	Inquire for pricing

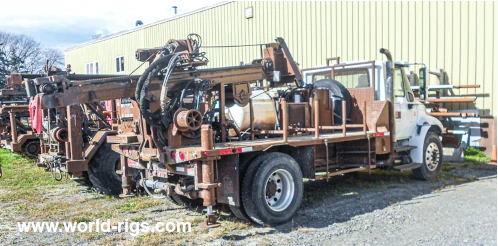

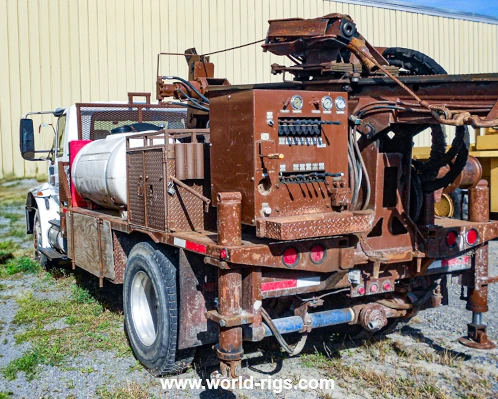

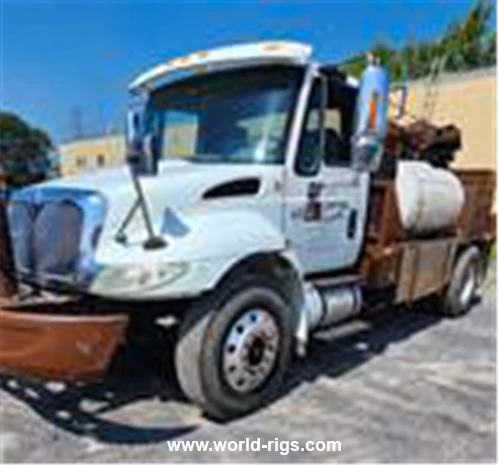

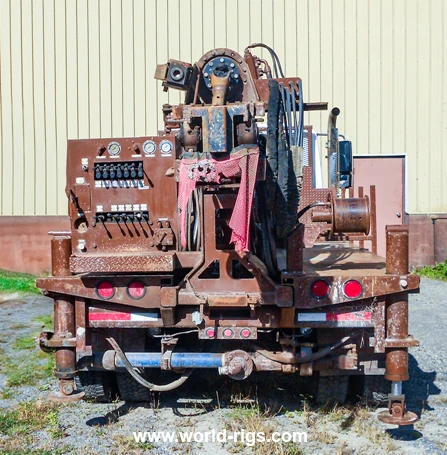

Specifications :	Ingersoll Rand A300 Drilling Rig for Sale Drilling Rig - Ingersoll Rand A300 - For Sale Ingersoll Rand A300 Drilling Rig - 1994 Built for Sale 1994 Built Ingersoll Rand A300 Drilling Rig for Sale Used Ingersoll Rand A300 Drilling Rig for Sale Ingersoll Rand A300 Used Land Drilling Rig for Sale Ingersoll Rand A300 Drilling Rig for Sale in USA Description : 1994 Ingersoll Rand A300 Drill Rig Mounted On A 2007 International 4300 Truck With 98,331 Miles Drill Rig Has 8948 Hours Top Head Drive With 800 Ft Lbs. Torque 6000 Psi Hydraulic Pump 300-Gal Water Tank 2 Winches 3l6 Moyno Pump Slide Bas With Cross Slide Head Rig Has Probe Hammer And Cathead Deck Mounted Toolboxes Under Deck Auger Racks Telescoping Tower 16 Ft Working Height A-300 Monitoring Drill Specifications : Power System : Power transfer : Transfer case and pump drive Hydraulic pumps : Variable displacement : 30gpm Fixed displacement : 40gpm Reservoir : 100 gallons Filtration : 10 micron element Dimensions : Length : 25ft. 0 in. Width :8ft. 0 in. Height (derrick down) : 10ft. 9 in. Height (derrick vertical) : 14ft. 10 in. Weight (less truck) : 8,000lb. Weight (Including truck) : 16,000lb. Leveling System : Hydraulic jacks : 3(1 front; 2 rear) Diameter/stroke : 5"x30" Pad diameter : 10 in. diameter Derrick : Tubing section : (2)5"x10"x0.25" wall Length : 12.0 ft. Rotary head travel : 8ft. Feed System : Pulldown/Pullback : 18,000 lb. Head travel speed : 50ft/min. Feed motor : Hydraulic; variable speed Feed chain : Roller Rotation System : Motor type : Hydraulic planetary gear torque : 8,000ft-lb. (96,000 in-lb.) Speed range (standard) : 0-75 rpm Side slide (hydraulic) : 12" overall Spindle adapter : 8 bolt flange Hoist : Capacity : 8,000 lb. Speed : 85ft/min. Cable : 1/2"x 60ft. Options : Cat head : 8"x8-3/4" drum Pump : Moyno 3L6 "A" rod rack capacity : Capacity of 20 pcs.(5ft) Twin auger racks capacity : 90ft. of 6¼ x5ft.augers Three speed rotary head : 0-215 rpm; shift-on-the-fly Derrick extension : 6ft hydraulic telescoping Tool boxes : 24"x18"x18"(each) Auger centering guide : For 4⅜" to 8¼" hollow stem augers Location : USA

WorldRigs has Ingersoll Rand A300 Drilling Rig - For Sale
