Description :
DeepRock DR 200 Drill Rig Rated For 200 ft Kohler 16 Hp Engine Mounted on a Trailer Set Up For Environmental Drilling in Low Clearance Areas Runs 5 ft drill rods
Notes:The table slip is sized for 1.5" and we do not know the thread. It looks to him to be a IF type thread @ 1-1/4" fluid course. Tool string wise he would suggest re-tooling through Deep Rock. He has a few random tools for it.
DR Model 20
Applications : The DR 20 and DR 20-2 are designed for small diameter shallow holes in unconsolidated formations using the rotary mud method. Rotary air drilling can be accomplished utilizing an auxiliary air compressor. The DR 20 and DR 20-2 are designed for fast drilling, utilizing lightweight drill stem and the DeepRock wrenchless automatic breakout system.
Capabilities : 2* and 4* wells to 200ft. Larger diameter wells to shallower depths. For the larger diameter or deeper (200ft) wells, the DR 20-2, utilizing the larger mud pump, is recommended. The larger pump results in faster drilling with quicker hole cleaning capabilities.
Speed of drilling, diameters and depths obtainable will vary with soil conditions, tooling used and operator proficiency.
Standard Equipment :
Carrier : Single Axle Trailer 2500# Axle 3500# Axle Diesel Drill Rig. Hydraulic Tank and Axle are unitized MIG Welded Structural Tubing
Power : 13 HP Gas engine powers all hydraulics recoil start 4.5 HP Gas engine powers 2x2 Mud Pump, recoil start
Leveling Jacks : 3 Manual Screw Type
Mast : Structural Steel with Skid Plate Hydraulic Cylinder raises and lowers mast Tophead Stroke - 76 inches
Tophead Drive : Single Speed Hadraulic motor Rotation Speed - 115 RPM Torque - 5000lb.in.-13 HP Gas Torque - 6500lb.in.-14 HP Diesel Side feed swivel Direct Drive, Double Bearing 1¼" Fluid Passage Wrenchless Breakout with J-Latch, Saver Sub,Bowl and Slips
Pulldown /Pullback : Hydraulic Cylinder Pulldown - 2200 lbs- Gas Engine Pullback - 3500 lbs - Gas Engine Pulldown - 2800 lbs - 14 HP Diesel Engine Pullback - 4400 lbs - 14 HP Diesel Engine

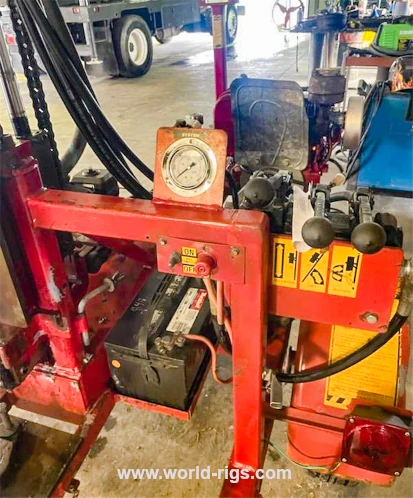

Control Console : Located at right rear of drill Operator friendly, simple controls Hydraulic and Engine Gauges
Dimensions and Weights – Standard Unit : Height – Towing Position -5.5 Height – Drilling Position -10.9 Width - 5ft Length - 9.5ft Weight - 1100 to 1400 lbs.
Options : Electric Start for 13 HP Gas Engine 1½x2x8½ Mud Pump 14 HP Air Cooled Diesel(s) Mast Extension with Winch Swing Away Head Night Drilling Illumination 5ft, 1.9" Diameter Drill Stem with 4130CA-21 Tool Joints(16lbs) Additional Tooling and Bits
Location : USA
WorldRigs has DR 200 Drilling Rig - For Sale
Images
DR 200 Drilling Rig for Sale
Drilling Rig - DR 200 - For Sale
Used DR 200 Drilling Rig for Sale
DR 200 Used Drilling Rig for Sale
DR 200 Land Drilling Rig for Sale
DR 200 Drilling Rig for Sale in USA
Used DR Drilling Rig for Sale
DR 200 Drilling Rig for Sale
Drilling Rig - DR 200 - For Sale
Used DR 200 Drilling Rig for Sale
DR 200 Used Drilling Rig for Sale
DR 200 Land Drilling Rig for Sale
DR 200 Drilling Rig for Sale in USA
Used DR Drilling Rig for Sale
Description :
DeepRock DR 200 Drill Rig Rated For 200 ft Kohler 16 Hp Engine Mounted on a Trailer Set Up For Environmental Drilling in Low Clearance Areas Runs 5 ft drill rods
Notes:The table slip is sized for 1.5" and we do not know the thread. It looks to him to be a IF type thread @ 1-1/4" fluid course. Tool string wise he would suggest re-tooling through Deep Rock. He has a few random tools for it.
DR Model 20
Applications : The DR 20 and DR 20-2 are designed for small diameter shallow holes in unconsolidated formations using the rotary mud method. Rotary air drilling can be accomplished utilizing an auxiliary air compressor. The DR 20 and DR 20-2 are designed for fast drilling, utilizing lightweight drill stem and the DeepRock wrenchless automatic breakout system.
Capabilities : 2* and 4* wells to 200ft. Larger diameter wells to shallower depths. For the larger diameter or deeper (200ft) wells, the DR 20-2, utilizing the larger mud pump, is recommended. The larger pump results in faster drilling with quicker hole cleaning capabilities.
Speed of drilling, diameters and depths obtainable will vary with soil conditions, tooling used and operator proficiency.
Standard Equipment :
Carrier : Single Axle Trailer 2500# Axle 3500# Axle Diesel Drill Rig. Hydraulic Tank and Axle are unitized MIG Welded Structural Tubing
Power : 13 HP Gas engine powers all hydraulics recoil start 4.5 HP Gas engine powers 2x2 Mud Pump, recoil start
Leveling Jacks : 3 Manual Screw Type
Mast : Structural Steel with Skid Plate Hydraulic Cylinder raises and lowers mast Tophead Stroke - 76 inches
Tophead Drive : Single Speed Hadraulic motor Rotation Speed - 115 RPM Torque - 5000lb.in.-13 HP Gas Torque - 6500lb.in.-14 HP Diesel Side feed swivel Direct Drive, Double Bearing 1¼" Fluid Passage Wrenchless Breakout with J-Latch, Saver Sub,Bowl and Slips
Pulldown /Pullback : Hydraulic Cylinder Pulldown - 2200 lbs- Gas Engine Pullback - 3500 lbs - Gas Engine Pulldown - 2800 lbs - 14 HP Diesel Engine Pullback - 4400 lbs - 14 HP Diesel Engine
Control Console : Located at right rear of drill Operator friendly, simple controls Hydraulic and Engine Gauges
Dimensions and Weights – Standard Unit : Height – Towing Position -5.5 Height – Drilling Position -10.9 Width - 5ft Length - 9.5ft Weight - 1100 to 1400 lbs.
Options : Electric Start for 13 HP Gas Engine 1½x2x8½ Mud Pump 14 HP Air Cooled Diesel(s) Mast Extension with Winch Swing Away Head Night Drilling Illumination 5ft, 1.9" Diameter Drill Stem with 4130CA-21 Tool Joints(16lbs) Additional Tooling and Bits
Location : USA
WorldRigs has DR 200 Drilling Rig - For Sale
