Description

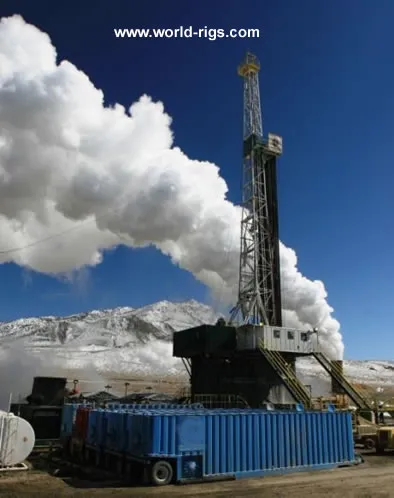

Drawworks
-N-75 Brewster 1000 Horsepower, single drum with 1-1/4” drilling line,
and a two engine compound and a Wichita twin disc brake.
Wichita brake 7-337-210-100, Powered by (2) Caterpillar
C-15 ACERT EPA tier 3 engines, with OWI torque converters C-195-100

Mast
- IDS, 136’ x 18’ 6” x 500 K Static hook load.
Crown Cluster - (5) 42” cluster sheaves, with a 52” Fast line sheave.
500,000lb capacity.
Deadline Anchor - National Oil Well, Capacity: 750,000 lb

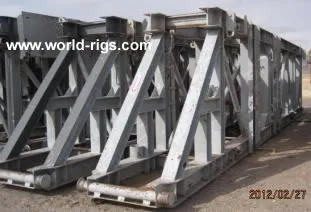

Substructure
- 28’ x 42’6” x 24’, Clearance under rotary beam 24’, Rotary casing load
400,000 lbs with 200,000 lbs set back simultaneously

V-Door & Catwalk - 6’ x 50’ x 18” with 18” tall racks
Drilling Line Spooler With 5000 Feet - 1-1/4” x 6 x19 IWRC, EIPS

Generator House
- 2 Caterpillars, C-15 engines with 455 KW AC generators 480 volt, Year 2006

Traveling Equipment
- Texas First Industry, 250 ton Hook /block combination with 1-1/4” sheaves.
36” diameter sheaves.  (1) 5-1/4” x 40’ Hex Kelly with square bushing drive

Rotary Equipment
- SJ-Petro 27-1/2” rotary table with master bushing and bushing locks.
Swivel - 250 Ton, Texas First Industrial SL-250

Mud System
Mud Pumps - (2) Emsco Type HHF-1000 triplex mud pump rated at
1000 horsepower, powered by a Caterpillar C-27 ACERT, EPA tier 2,
with National torque converters C245-64F, Engines 2006
Charge pumps 5x6x11  50hp Electric driven

Mud Tanks - (2) Tanks with 785 bbls capacity; (1) Suction tank 405 bbl capacity.
(2) Shaker tank 380 bbl capacity. Both tanks are completely covered with grating
and have hand rails.

Auxiliary Equipment Storage
Air Compressors House - 2 Sullivan-Palatek 25D rotary screw air
compressor w/ 25HP electric motor and tank.

Dog House - (1) 10’ x 31’ skid mounted dog house, (1) 8’ x 31’ tool house with
oil containment

Change House - With crew lockers

Quarters - 1 bedroom/1 bathroom W/ Complete office

Fuel Tank - Capacity: 7000gl, Fuel system pump, Filtering system: twin cent,
Pumps: Dual filters per

Water Tank - 380 bbl capacity, with (2) pumps (1). 4” x 5” centrifugal pump powered
by 40 hp electrical motor. (2).
 2” x 3” centrifugal pump powered by 20 hp electrical motor.

Instrumention And Control, Recording Equipment - Pason EDR Unit

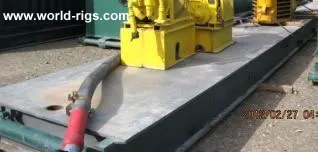

Accumulator Unit And Control - Type-80 (Koomey style) 5 station 80 gallon
accumulator, with 10 - 11 gallon bottles. (1) triplex pump and (2) air pumps

Drill Pipe And Tubulars - 4-1/2” or 5” drill pipe, 6-1/2, 8” & 9” collars are available
as required by the Operator

Subs For The Handling Equipment - Bit Subs, Cross over subs, Lifting subs, Pipe Rack

Drilling Floor Equipment
Spinning Wrench - Pipe Spinner
Wire Line Unit - Manufacture: Oil Works, Inc, Model: 1200, 12000 ft. 092 wire
Kelly Spinner - Kelly Spinner OWI 1500

Additional Equipment Included:
Bug Blower - Oil Works, Inc
Transformer - Manufacture: HPS, Inc., 480 volts, 208Y/120V, Three Phase transformer
Junk Basket
Winches: x2, Ram-Winch-Houston TX, Model: AG74352
Containers -Spare parts
