National 55 800 HP Mechanical Drill Rig for Sale
800 HP Mechanical Drill Rig for Sale
Description

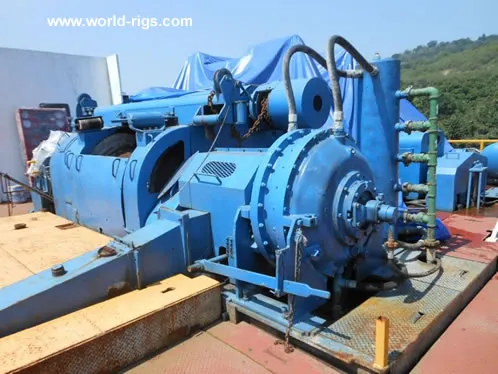

Drawworks :
National 55 with Parmac Hydromatic Brake model D631401-x, p/b (2) Cat D379’s, 550 HP each,
National Drillers Console, Martin Decker 500,000# weight indicator, National Drillers Console

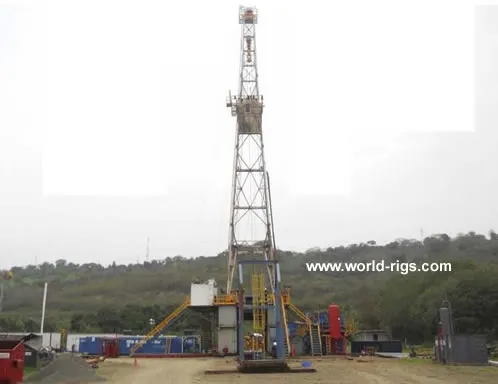

Mast :
Lee C Moore 450,000# SHL, 6 sheave cluster 42” diameter crown block, racking capacity
of 12,000’ of 4 ½” drill pipe

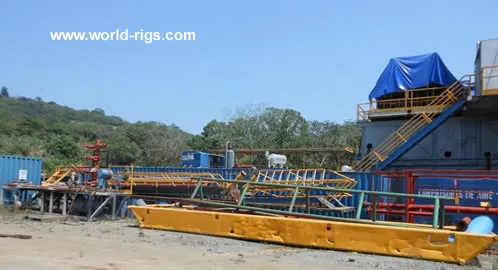

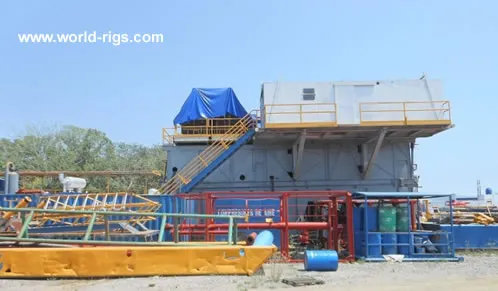

Substructure : Lee C Moore box on box
Block : McKissick 250 Ton
Hook : 350 Ton
Swivel : National Oilwell 300 Ton
Kelly Spinner : Oilworks model 1500
Kelly : DrillCo 5 ¼” hexagonal , 40’
Kelly Bushing : hexagonal
Rotary Table : Emsco Model T2750 250 Ton

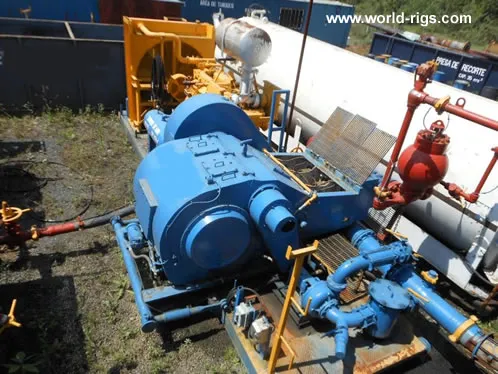

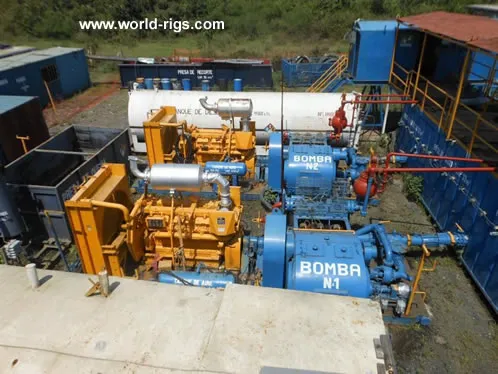

Mud Pumps :
Pump #1 - Matsum M1000 p/b Cat D398B-PCTA 975 HP at 1200 rpm
Pump #2 – National Maxum M1000 p/b Cat D398 630 HP

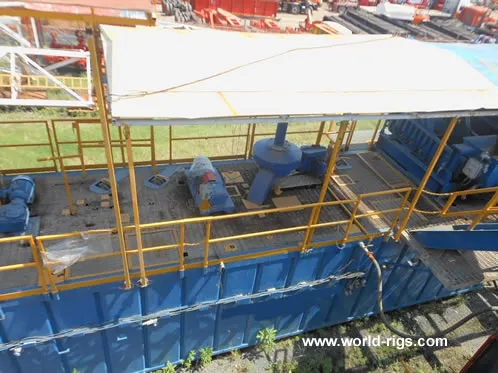

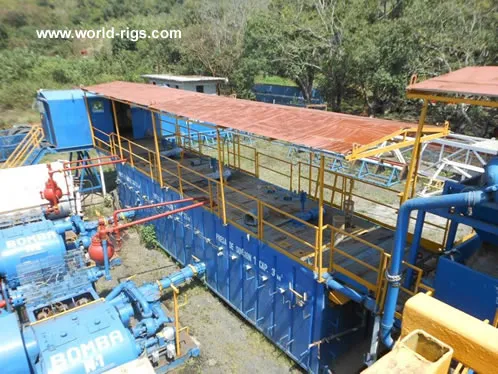

Mud System :

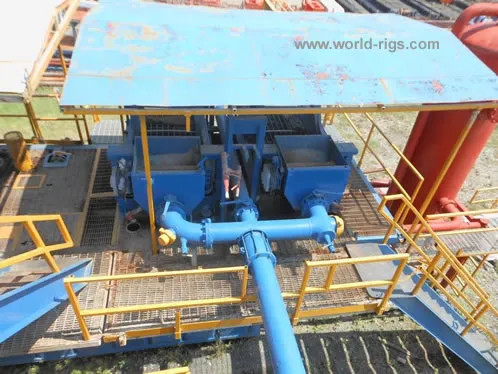

Shakers – Derrick Corporation Super G 1800 rpm, 60 hz
Degasser

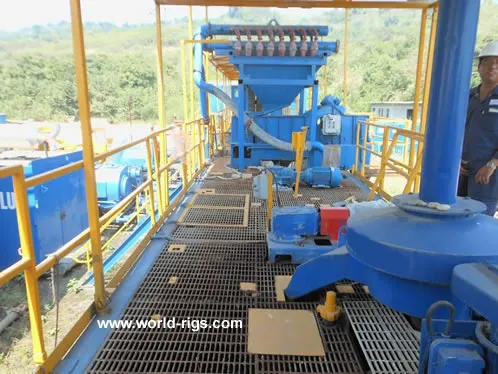

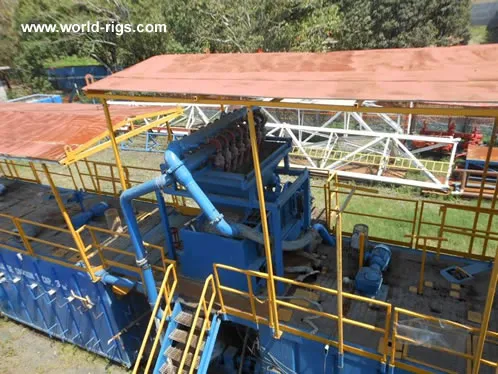

Desilter – Derrick 16 cone
Desander – Double Life 2 cone, 10”

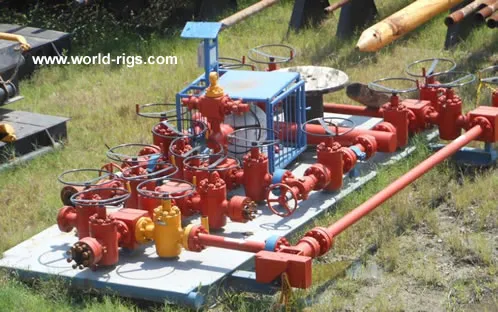

Choke Manifold - Barton 5000 psi, 14 valve
Gas Buster
Vibrator Hose – 4” diameter, 65’, 5000 psi
Suction Pit – 86 cubic meters
Mud Hopper
Mud Pit – 86 cubic meters
Shale Pit – 35 cubic meters
Ecological Tank - 20 meters cubed tank
Flare Stack
BOP :
Doyles Model GK 11”, 10,000 psi annular, Doyles Type-U 11”, 10,000 psi double ram,

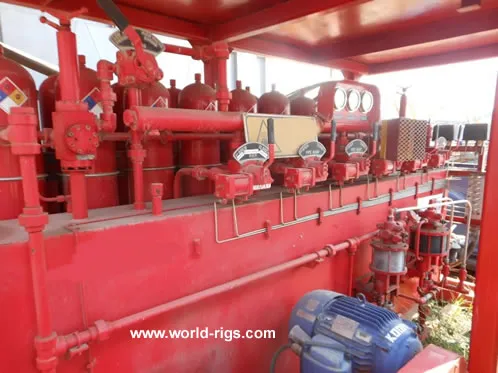

Advanced Pressure Inc accumulator
Remote Koomey : Control Panel
Generators :
Generator #1 - Cat 3406, 480 V, 60 hz,
Compressor - Sullivan Palatek model 30DGG-TE, 120 psi, .42 cubic meters, 60hz
Generator #2 – Cat C18, 900 HP, 670 KW
Compressor - Gardner Denver model EDE 99N, 120 psi
Compressor - Action Air model 3250, 120 psi,

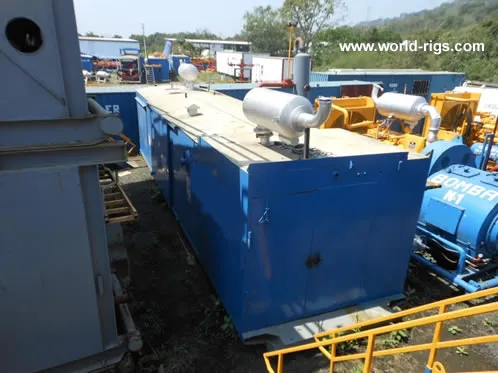

Gen house – 3 meters x 11.47 meters x 2.66 meters
Tanks & Houses :

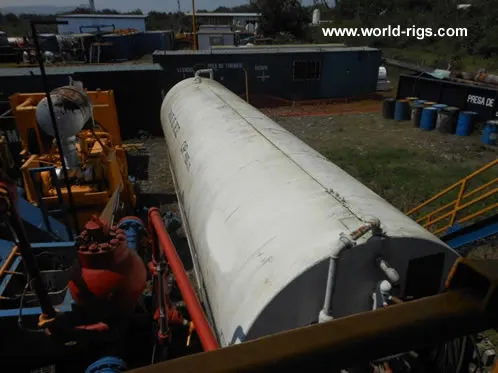

Diesel Tank - 44.3 cubic meters
Water Tank – 59 cubic meters
Upper Dog House – 2.25 Meters x 9.14 Meters x 2.21 Meters
Tool House – 2.43 Meters x 6.03 Meters x 2.58 Meters
Tool House – 2.42 Meters x 12.13 Meters x 2.58 Meters
Ancillary Equipment :
Drilling Spool – 1 ¼” drill line
Air Hoists – (2) Ingersall Rand 5 Ton
Torque Converters – (2) National Oilwell model C245125
Deadline Anchor – National
Catwalk – 55’L x 6’W x 3’H
Stand Pipe – 4”
Tongs – Access Oilworks, 4” Model HT-65
Pipe Racks – 8.54 meters x 1.07 meters x .96 meters
Generator Camp - Cat SR4B, 480V, 60hz
Generator Camp - Cat model LC7 generator rated at 480V, 600KW, 60hz |
