2008 Moor Carrier Mounted Drilling Rig
650hp Carrier Mounted Drilling Rig for Sale
Description :
2008 Moor Double Triple
650 HP Carrier Mounted Drilling Rig
Carrier :

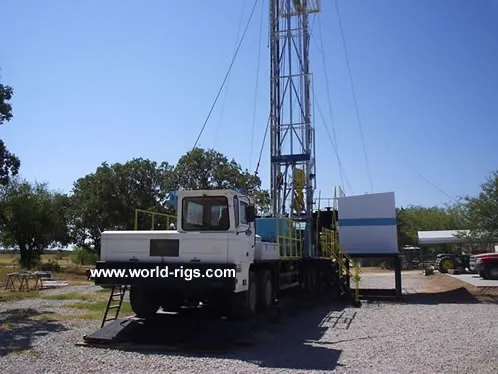

Moor 2008 Double Triple serial # TAS5530B Telescoping mast and mobile rig.
Moor 5 axle 2 front 3 back with 6 hydraulic leveling jacks 16,000ft 9/16 sand
line and new 11/8 swage down type drilling line or tubing line 6 line string up.
Rebuilt wench for equipment pick up with 1/2 cable, model INM2 #
3-3C-12-C-142P and dead line weight indicator.
Derrick : 104ft x 215,000lbs. equipped with 100 ton 3 sheave blocks.
Engine : 650hp 60 series Detroit serial #06R0949363
Transmission : Allison 5 speed automatic

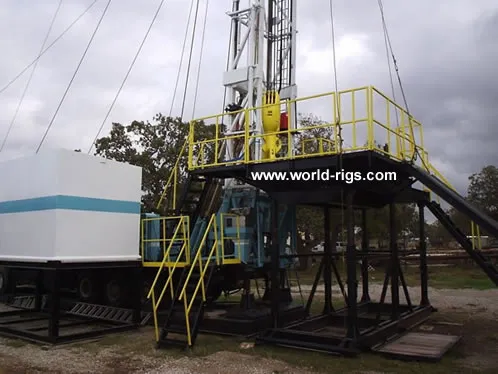

Substructure : Pin in new scoping substructure 7ft wide and 11ft 3in flaps up
x 21ft long
Rotary Table :

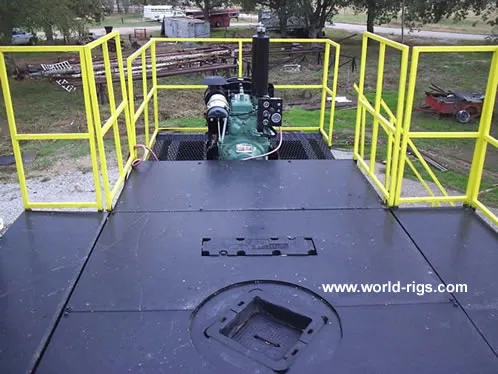

17 1/2 Oilwell rotary table with new locking device, powered by new 453 Detroit
engine. model #50335001 with new power take off serial #893813
Mud Boat : 9ft 4in wide x 60ft long - New
Mud Pump :

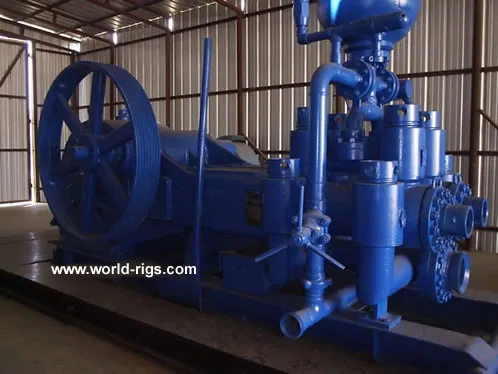

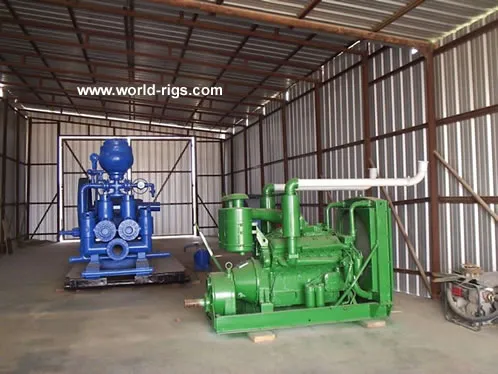

Gardner Denver 16" pump with high pressure fluid end, powered by 500hp Detroit engine.
Crew House :
New 8ft wide x 10ft long mounted on I beam substructure 9ft wide 14ft long
Auxillary Equipment :
1- 27/8 elevators
1- 23/8 elevators
1- 31/2 elevators
1- 23/8 to 27/8 & 31/2 slips gibberson
1- 31/2 rotary slips
1- bj rod tongs
1- foster tubing tongs
1- sucker rod stuffin box type bop for 5/8 to 1 in rods
1- 23/8 and 27/8 rod table
1- rod elevators for 5/8 to 1 in rods
1- shop made rod back off tool
1 -fishing tool for 5/8 rods to 1in
1- elevator bells 13/4 x 72 in long
1- tubling slips with changebale insets 23/8 to 27/8
1- drill pipe tongs, manual for 31/2 to 51/2
1- climbing device for derrick
1- kill switches at driller station
2- 30ft hp hose and 2-15hp hose
1- manifold, hp values and connections
1- light plant for lighting 50kw
1- derrick lights and floor lights
1- 3in square kelly 42ft long
1- 100 ton swivel
1- cellar pump |
