Gardner Denver 700 Drilling Rig
800 hp Mechanical Drilling Rig for Sale
Description
Gardner Denver 700 Drilling Rig
800 HP, Mechanical, Box on Box
14,000’ Capacity with 4 ½” Drill Pipe
Drawworks

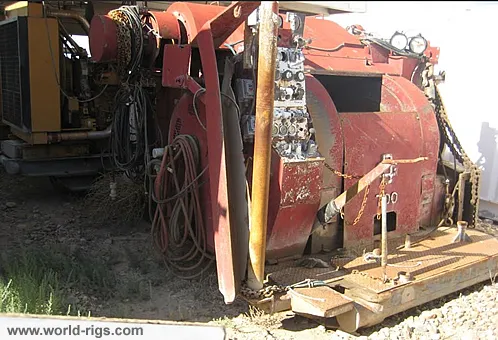

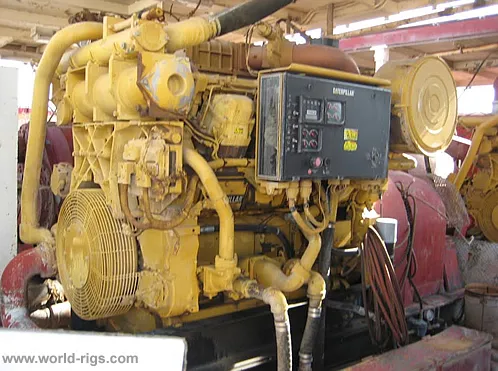

Gardner Denver 700 with 342 Parmac Hydromatic Brake powered by (2) Cat C-15

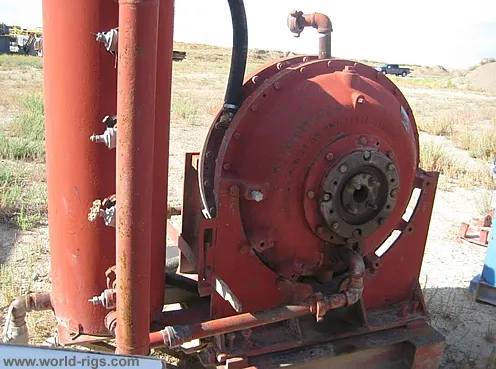

engines with (2) National 195-80 torque converters – 800 HP
Substructure & Mast

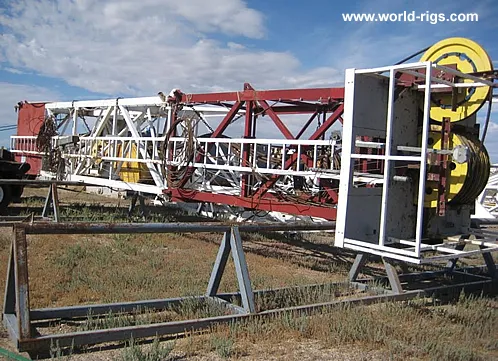

Pyramid 131’ mast, 550,000 GNC, 1 ¼” line
Pyramid 20’H substructure
Generators

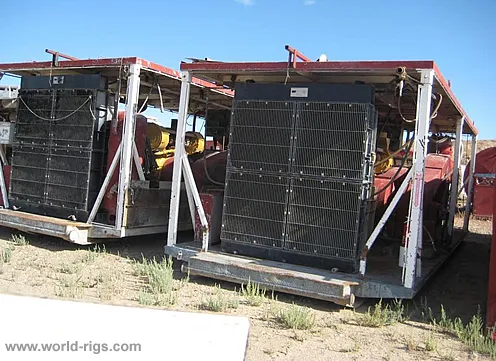

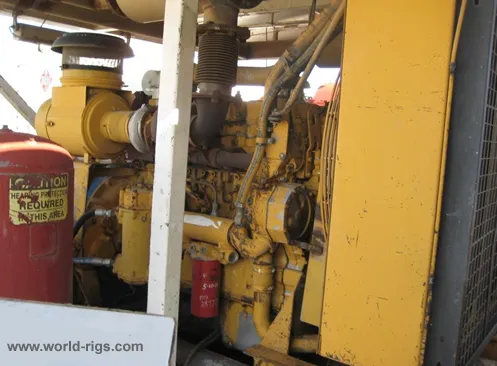

(2) 320 KW AC Generators powered by (2) Cat C-15 diesel engines
Mud Pumps

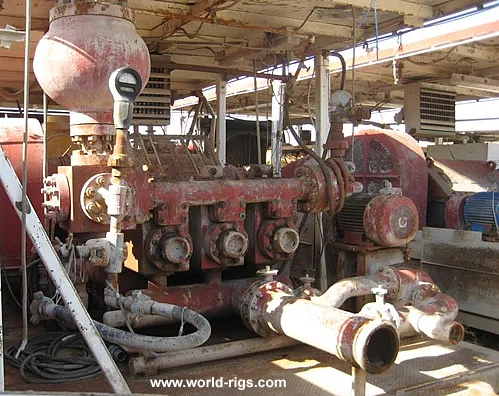

(2) Gardner Denver PZ-9, driven by (2) 3508 Cat Diesel motors
Rotating & Traveling Equipment
Chinese Rotary Table – 27 ½”
Emsco Block and BJ Hook – 250 Ton
Ideco Swivel – 300 Ton
5 ¼” x 42’ Kelly Varco HD Pin Drive Bushings
Blowout Prevention

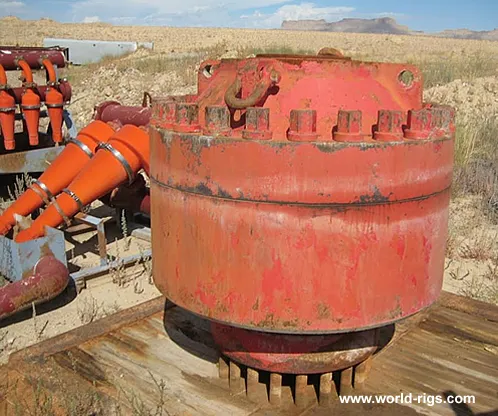

13 5/8” annular BOP – 10000 psi
13 5/8” double gate ram BOP – 10000 psi
13 5/8” single

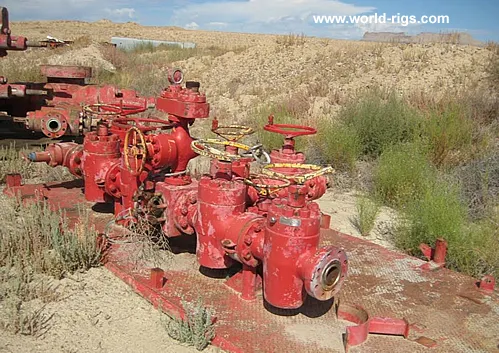

4” x 3” – 10000 psi complete manifold with gauges and chokes
Doghouse, Water, Fuel & Mud Tanks

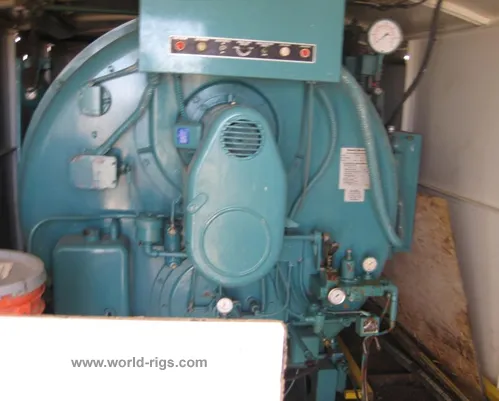

Heated Doghouse
(1) Fuel tank – 12,000 Gal
(1) Water Tank – 500 Bbl

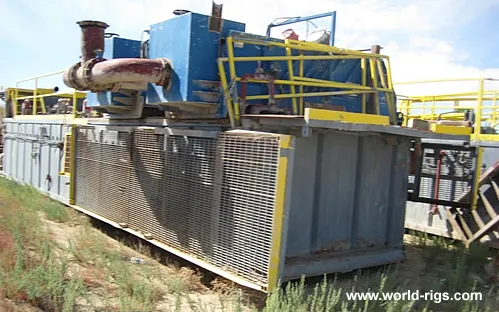

(2) 10’ x 5’ x 40’ mud tanks complete with (4) 5” x 6” electrical driven centrifugal
pumps manifold to low pressure mud system with electrically driven mud
agitators, mud guns – 650 Bbl capacity

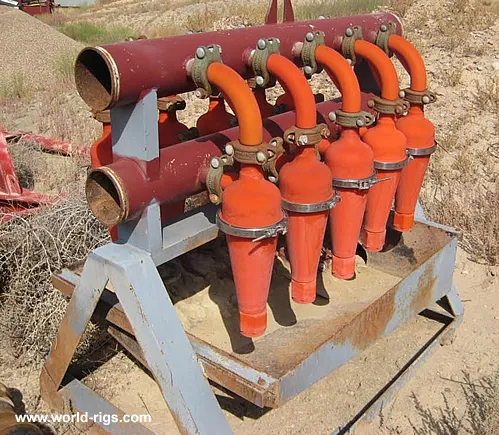

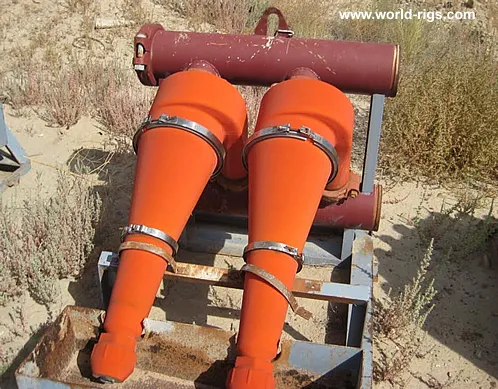

(2)Fluid System linear shale shakers, (1) Fluid System desander 10” cones, (1) Fluid
System Desander 2 cones, (1) Fluid System desilter 10 – 4” cones
Handling Tools/Auxiliary Equipment
BJ 48” Type B tongs
Pilot II Automatic Driller
Sure Shot 14” A-1 Survey Instrument
MD Totco Type D Weight Indicator
Drill Pipe & Collars
300+ Jts. 4 ½”, 16.6# drill pipe
(3) 8” x 30’ drill collars
(22) 6 ¼” x 30’ drill collars
Rig Manager’s Camp
|
