Ideco H44 Carrier Mounted Drilling Rig for Sale
700 hp Carrier Mounted Drilling Rig
SOLD
Decription
Ideco H44 ; 700 HP Carrier Mounted Drilling Rig
Drawworks :
Ideco H-44 Single drum, 700 HP, lebus grooved 1-1/8” line, foster makeup
& breakout catheads, air drillers control console, crown-o-matic, brake.
Mast :

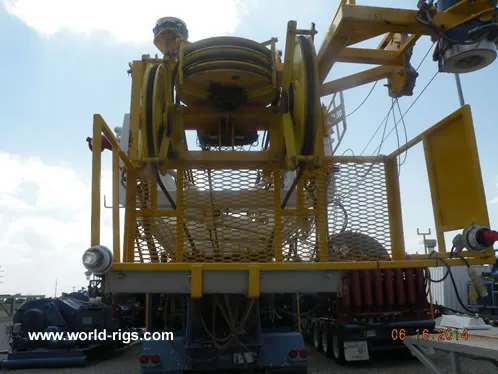

Ideco KM108-280, 108’H telescoping derrick, 280,000# SHL, crown block with
sheave cluster & fastline sheave, (2) 3 stage raising rams, hydraulic scoped,
crown safety platform, racking board, tong counterweights, ladder,
derrick climber, standpipe & manifold
Carrier :
All above mounted Ideco rambler tandem axle front & 4 axle rear
DIR carrier p/b (2) caterpillar 3406 diesel engines with electric start,
radiator, gauges, (2) Allison transmissions, (6) hydraulic leveling jacks,
gallon fuel tank, hydraulic tank, hydraulic winches, 11’4”W x 42’6”L mud boat,
deadline anchor, 80R22.5 tires

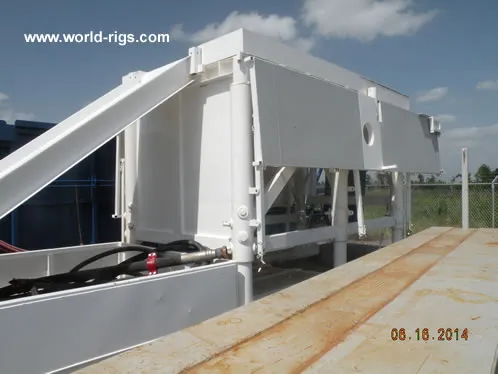

Substructure :
Crown 12’W x 15’H x 32’L with BOP Trolley, Rotary Beams, V-Door Ramp,
Stairs, Safety Rails
Pump :
(Primary) Ideco 800 triplex mud pump, 800 HP with (3) 7” x 9” forged steel
fluid ends, Quick Change Caps, hydril k-20-500 5,000 psi pulsation
dampener, mission 5” x 6” charging pump, p/b Emerson 50HP electric motor,
Oteco 3” shear relief valve, master skidded with Engine

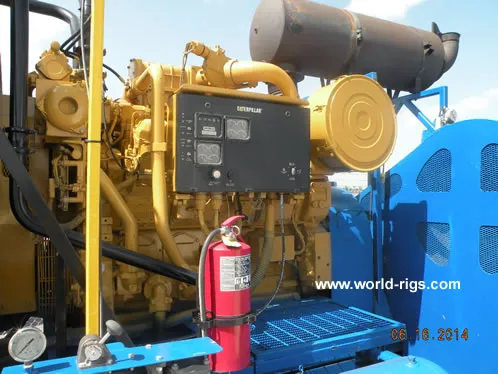

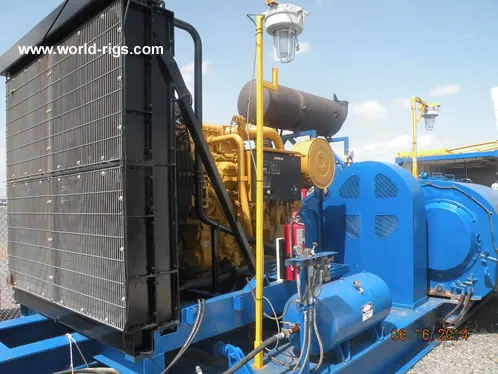

Pump Power : Caterpillar D379 diesel engine with air start, radiator, gauges,
shopbuilt 8’W x 34’L pump skid
Rotating Equipment :
Rotary Table - Ideco 20-1/2” rotary table with split master bushings
Swivel - National PC-225, 225 ton swivel
Kelly Spinner - Foster hydraulic Kelly spinner
Hex Kelly - 5-1/4” x 40’L hex Kelly
Kelly Drive - Vardo HD Kelly drive bushing square drive
Kelly Valves - 5,000 psi upper Kelly valve, 5000 psi lower Kelly valve
Traveling Equipment :
Ideco 160 ton block/hook combination, 98”L Elevator Links
Well Control Equipment :
BOP - hydril GK-10 Annular Blowout Preventer, 11” x 5M
Drilling spool - 11”ID x 38”H x 5M drilling spool

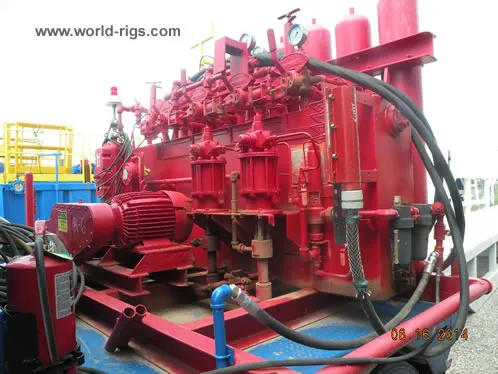

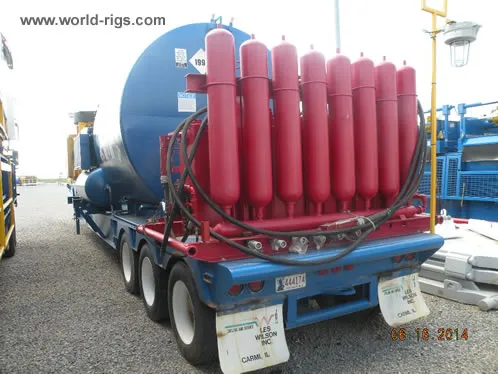

Accumulator – Koomey 4-station accumulator with (8) bottles, triplex
pump p/b 30hp electric motor, air pump, gauges, lights, skidded,
mounted 4’W x 9’8”L skid
Remote Control Panel - 4 station mounted doghouse
Choke Manifold - 5000 psi choke manifold with (1) 4 way cross,
(3) 2-1/16” x 5M gate valves, (2) 2-1/16” x 5M manual adjustable
chokes, skidded.
Kill valves – (2) 2-1/16” x 5m gate valve
Choke valves – (1) 3-1/16” x 5M gate valve
Houses :
Toolpusher’s House - Shopbuilt 12’W x 40’L toolpushers house,
fully furnished, skidded
Doghouse - Shopbuilt 8’W x 32’L doghouse with 4’L covered porch,
(16) lockers, knowledge box, bench storage, heater, lights, skidded
Party House – shopbuilt 8’W x 14’L with parts bins, heater lights, skidded
Generator/Utility House :
Engine No.1 – Cat SR-4B, 210 KW AC Generator p/b Caterpillar 3406 diesel
engine with electric start, radiator, electronic control panel
Engine No.2 – Cat SR-4, 210 KW AC Generator p/b Caterpillar 3406
Diesel Engine with electric start, radiator, electronic control panel

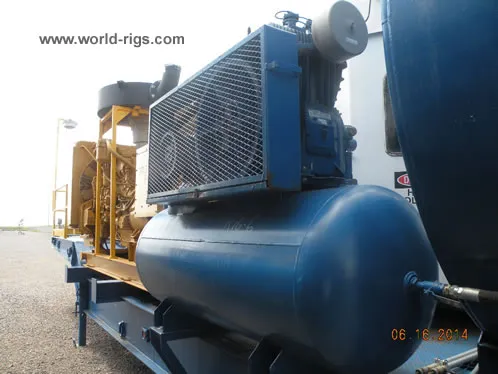

Air Compressor – Quincy 390 p/b siemens 20 HP electric motor
Electrical Control Panel – Home Line
Transformer – Hevi-Duty 112.5 KVA
Above mounted on shopbuilt 8’W x 42’L tri-axle utility trailer
Mud System :
Suction Tank – shopbuilt 10’W x 6’H x 41’6”L, 427 bbl with 14’L covered porch, (3)
compartment, (4) National mud agitators p/b Teco 10HP electric motors, flat bottom,
internal plumbing, top mounted walkways, stairs, safety rails, lights, skidded.
Centrifugal Mixing Pump – (2) 5” x 6” centrifugal mixing pumps p/b siemens 75 HP
electric motors
Shaker Tank – shopbuilt 10’W x 6’ h x 38’L, 391 bbl with 10’L covered porch,
(3) compartment, flat bottom, internal plumbing, top mounted walkways, stairs,
safety rails, lights, skidded
Shale Shaker – National D235-LP-L1 single, single screen linear motion shale shaker
Water/Fuel Tanks :
Water Tank – shopbuilt 8’W x 8’H x 26’L, 285 bbl with lights, skidded
Centrifugal Water Pump – mission magnum 3” x 4” p/b Siemens 30 HP electric
motor, mounted water tank

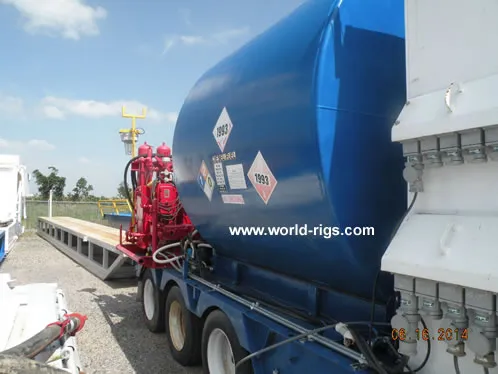

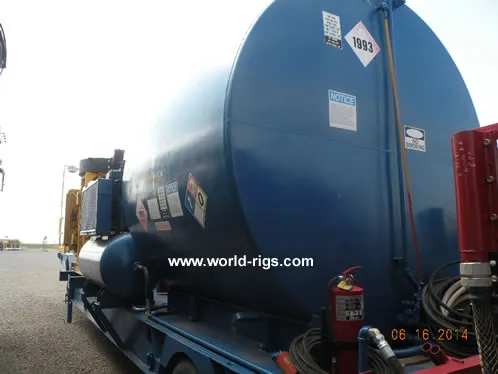

Fuel Tank – shopbuilt 9’Dia x 8’L, 3,812 gallon tank with 4’L porch, (2) fuel transfer
pumps, skidded
Instrumentation :
Weight Indicator – MD Totco 3.25,000
Automatic Driller – Pilot II
Recorder – Totco 4-Pen
Mud Gauge – 5000 Psi
Handling Tools :
Rotary Tongs – Byron Jackson type B
Elevators – 4”, 250 Ton BN, CL
Pipe Slips – (2) 4”
Collar Slips – 8-Segment, 10-Segment
Safety Clamp – 9-segment
Mud bucket
Ancillary Equipment :
Catwalk – shopbuilt 5’W x 36”H x 51’L with 2-sections, steel deck
Pipe Racks – 3 sets of (6) 42”H x 28’L
Pipe Tubs – (5) shopbuilt 7’4”W x 39’L, skidded
Junk Box – shopbuilt 8’W x 18’L
Measuring Device with 15000ft of .092 wireline
Air Hoist – Ingersoll Rand JU40
Pressure Washer EPPS
Rotary Hose – 3-1/2” Dia. X 56’L
Vibrator Hoses – (2) 3-1/2: Dia x 17’L
Drill Line – 3000 ft of 1-1/8”
Rathole & Mousehole
Rig Lights – fluorescent & mercury vapor with wiring
Miscellaneous fire extinguishers, spare parts, hand tools, etc |
