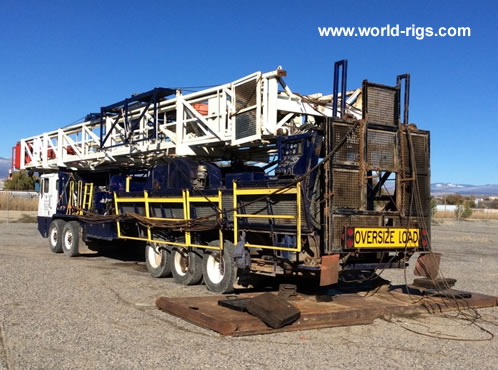

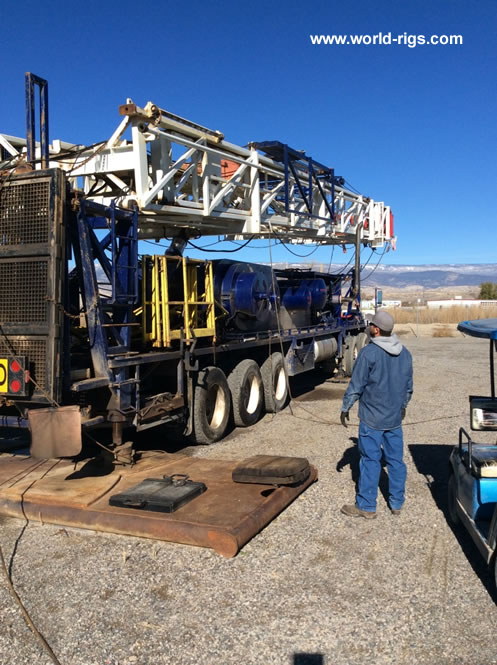

2011 Watson Corsair 400 Workover Rig For Sale
475hp Watson Drilling Rigs for Sale
Watson Workover Rigs for Sale
Built in late 2011. Went into service 2012.
Rocky Mountain Rig typically stacked from December to April.
This rig was stacked December 23, 2014.

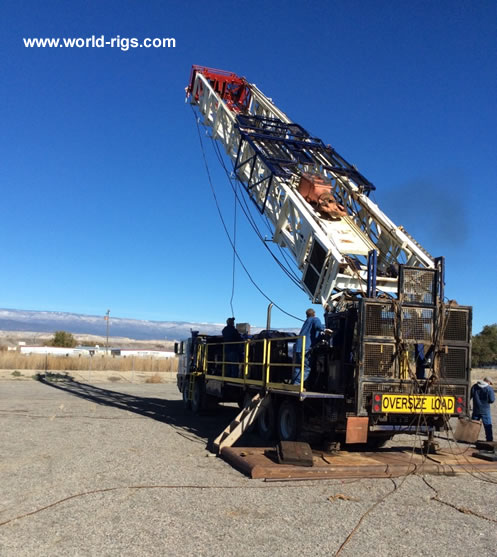

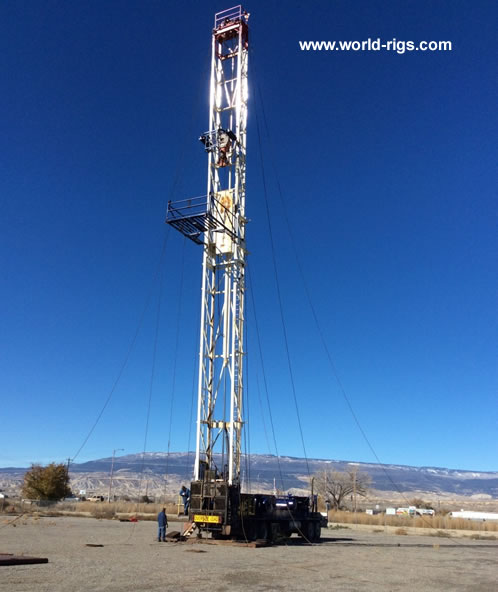

Mast was raised for photos in yard November 2015.
Rig has extremely low hours and low mileage.
Manufacturer:
Watson Hopper
Description:
Corsair 400, 104 ft. Mast
Year:
2011, Company owned.
Body Type:
5 Axle Back-IN – 250,000# capacity
Engine:
Detroit Diesel MTU 60 Series
475 Hp rated at 1800/2300 rpm. Overhead cam, turbocharged. Electronically integrated platform.
Hours:
3,913 hours
Transmission:
Allison 5610 with TC-680, 6 forward, 1 reverse gears.
Mileage:
2,085 miles

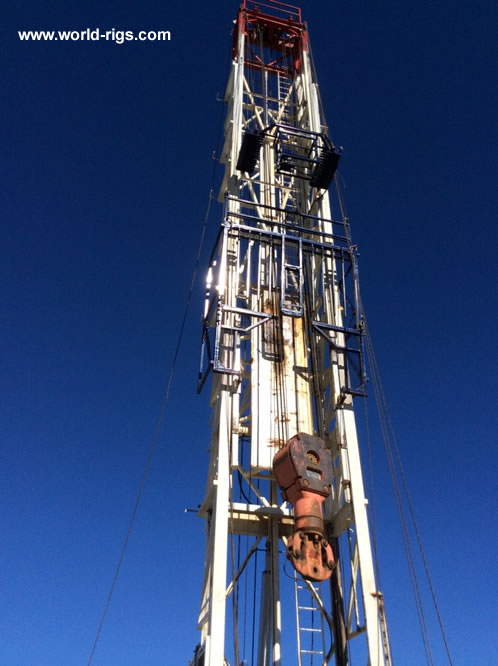

Mast:
Hopper 104 ft., 250,000 lbs. static load with 8 lines and 187,000 lbs. with 6 lines.
Tubing and sucker rod boards fitted with 2 inch 6,000 psi rated stand pipe.
Working platform:
9 ft-6” standard height w/ maximum 15ft extended height, controls can reach maximum height.
Draw works:
435 Hp Corsair 400 draw works 15,000 ft. rating, New lines strung January 2015
Sand line:
15,000 ft. capacity
Brakes:
224 Twin Disc w/ Kobelt single drum assist
|
