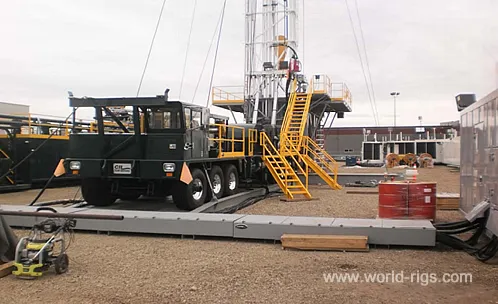

Backyard Equipment Package for Sale
Telescoping Substructure & Accessories - For Sale
Section 1 - Substructure & Accesssories

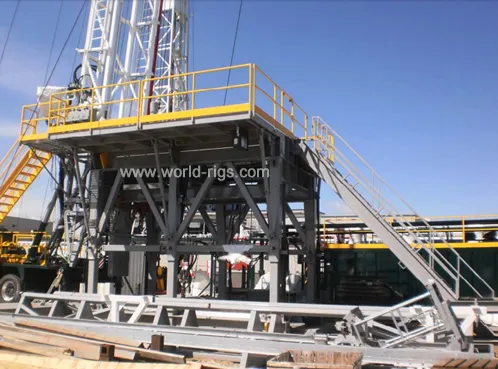

1.1 Telescoping Substructure API 4F 4th Edition
Rotary capacity : 425,000 lbs
- Setback capacity : 300,000 lbs
- Height : 16’
- Certified plaque engraved with A.P.I monogram 4F 4th Edition, PSL 1, E2/U2
- Four hydraulic rams to raise and lower sub structure
- Two hydraulic rams to raise and lower side floor wings
- Hydraulic controls six valve bank with flow divider
- Install two snub posts in between main hole and mouse hole
- Install BOP handling system for 11” x 5000 PSI stack
1.2 Rotary Table
- Supply and install one 17 1/2”Hecker or American Block rotary table
- Rotary Table c/w split Master bushing and insert bowl.
- Supply and install rotary torque system
1.3 Chain Case for Rotary
- Supply and install drop down chain case from rotary
1.4 Electrical
- Supply and install (three) four foot explosion proof fluorescent lights in cellar area
1.5 T Sill
- Fabricate and supply 40’ t sill with all lugs to support the free standing mast
1.6 Ramp
- Fabricate and supply ramp with 4” welded pump line running down the side
1.7 Paint
- Substructure has been painted gray

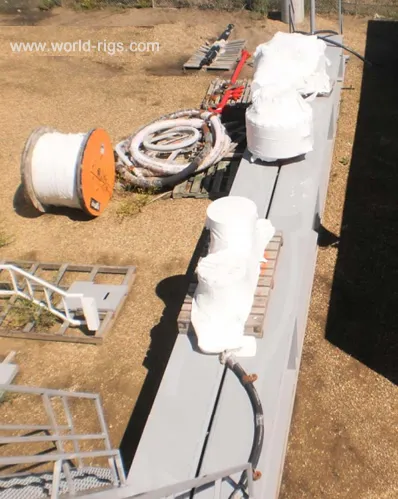

Section 2 - Catwalk / V-Door
2.1 Catwalk / V-Door
- Supply 45ft. catwalk with fold up v-door with pipe cut out
Section 3 - Overhead Equipment

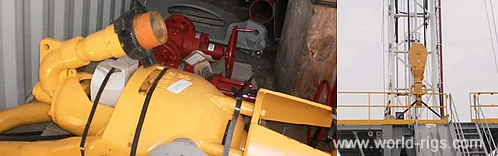

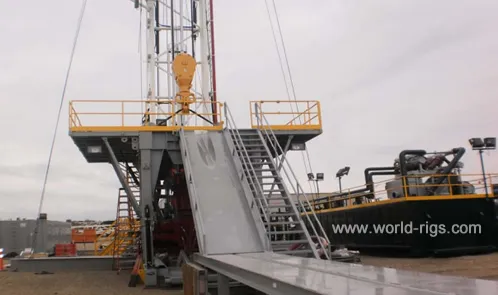

3.1 Block/Hook
- Supply 160 ton TSM block / hook combination
- Four each 30” sheaves for 1” drill line
3.2 Swivel
- Supply 150 TON TSM Rotary Swivel
- Swivel c/w Kelly spinner stand
- Quill sub 4 ½” Reg. left hand thread – 6 5/8” Reg. Left

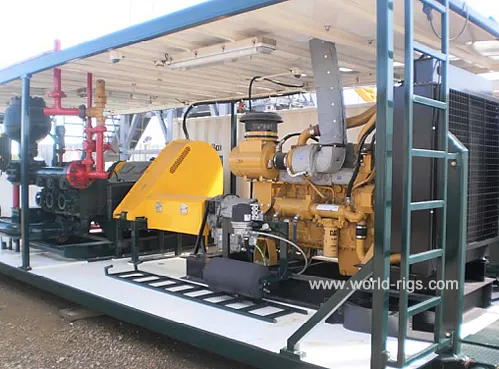

Section 4 - Mud Pump
4.1 Diesel Engine
- Supply (1) one Caterpillar Câ€15 series engines rated at 540 HP
4.2 Pump Drive
- Supply and install one Allison OFS 4700 Transmission

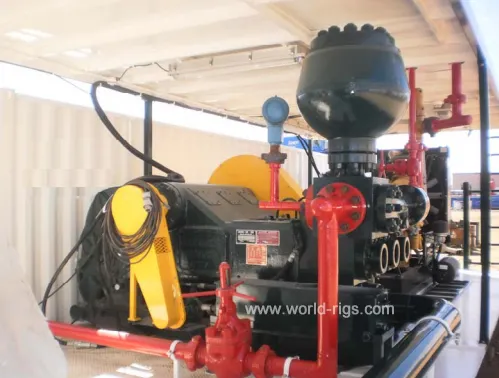

4.3 Pump #1
- Supply one new Gardner Denver PZâ€7 mud pump
4.4 Mud Pumps Skid & Accessories
- Total building dimensions to be 37’ long 12’ wide
- Supply one oilfield skid 40’ X 12’ using 4 beam 12”@50 lb
- Install ¾”x 7” strapping on bottom of skid runners
- Cross members 10” @ 33 LB flooring to be 3/16” checker plate
- Supply and install pump with 4” valve, 2” pop valve, 2” bleeder valve and type D
mud gauge
- Supply one precharge pumps 60 hp 6 X 5 X 11 with suction screens
- Fabricate all precharge and suction lines from mud tank
- Fabricate all high pressure lines on skids. Pressure test chart and xâ€ray done on all
high pressure lines
- Supply 5000 PSI shock hose in between pump and ramp with integral ends
- Supply one liner wash pump and liner wash tank with plumbing
- Supply one K20 dampener and cross
- Supply and install one diesel day tank with hosing for circulating system
4.5 Electrical
- Supply and install (4) four foot fluorescents in each building
- Supply and install one distribution panel
4.6 Paint
- Mud Pump skid has been painted avocado green

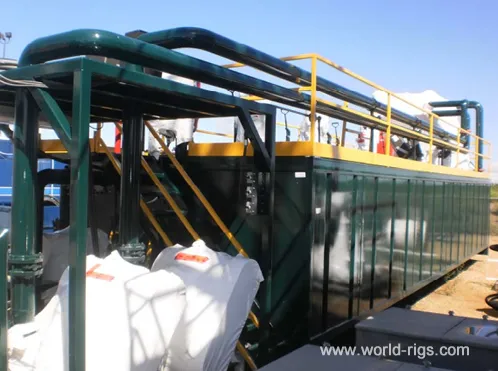

Section 5 - Mud Tank
5.1 Mud Tank Specifications
- Total tank dimensions to be 50’ long 12’ wide
- One oilfield skids 53’ X 7’10” using three beam 12” @ 50 lb.
- Cross members 10” @ 33 lb with 1/4” formed plate flooring
- Walls on tank corrugated 1/4” plate tank perimeter tbg frame
- Fabricate 11 gauge building over top of mixing hopper and pumps
- Fabricate and install hopper door access on side of mix building
- Supply and install exhaust fan
- Fabricate and install two doors on front of mud mix building
- All unions for piping on tanks will be hammer style
- All suction lines will have bridge gate valves and be sumped
- Supply and install 30” poor boy degasser
- Suction lines inside tank 10” for pump and 6” for mixing
- One 4” mud roll line with 2” mud guns
- One 6” hopper lines with buttery fly valves
- One discharge manifold for both pumps
5.2 Tank Capacities
- Pill tank 30 bbls.
- Suction tank 120 bbls.
- Settling tank 105 bbls.
- Settling tank 110 bbls
- Shaker tank 100 bbls.
- Sand trap 10 bbls
- Trip tank 25 bbls.
5.3 Equipment
- One DFTS mud conditioner
- Mud cleaner consist of 16 cone Desilter and 2 cone Desander
- Three MA – 10 hp 380 volt RG mud agitators
- Supply and install five jet guns
- Supply and install single hopper mixing system
- One 8” X 6” X 14” 60 HP 460 volt overhead motor driven by belts for Mixing pump
- Two 6” x 5” x 11” 50 HP 380 volt overhead motor driven by belts (Desilter & Desander pumps)
- One explosion proof 10 HP trip tank pump
5.4 Electrical
- Supply and install four fluorescent lighting on telescoping posts
- Supply and install all electrical hard wiring and jumper cords
- Supply and install distribution panel at mixing end of tank
- Supply remote switch for trip tank pump to driller’s panel
5.5 Paint
- Mud tank skid has been painted avocado green
Section 6 - Generators / Combination Building
6.1 Diesel Engine
- Supply Two Caterpillar Câ€15 engine rated at 540 HP
6.2 Generators
- Supply Caterpillar generator prime power is (50Hz) 355 kW
6.3 Electrical
- Supply one transfer switch 600 amps
- Supply one 380 Volt panels with pin and sleeve plugs
- Supply one 380/222 panel with pin and sleeve plugs with 100 amp outlet for lease
accommodation shacks
- Supply and install plug box on building for cord ends
- Supply spare starters and plug in for 60 HP and 30 HP
- Supply and install four foot fluorescents inside building
- Supply and install two sodium vapour lights on roof
- Supply all extension cords from gen building to outside support buildings
6.4 Building
- Fabricate triple beam skid 48’ long x 16’â€6” wide from 12” beam
- Install 6” roll ends and cover entire skid with 3/16” checker plate
- Shear, form and stand building 45’ long x 12’â€6” wide x 8’6” high
- Install tubing roof perimeter and sloped roof panels
- Install (3) divider walls inside building for (3) separate rooms
- Supply and install steel doors/frames into each room
- Fabricate 2 ft. wide cable tray on top of combination building
- Install 6x4 bumper posts on both ends of skid
6.5 Lightplant Room
- Lightplant room is 12’ wide x 20” long

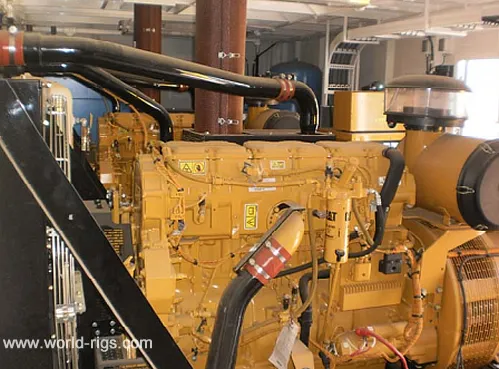

- Supply and install (2) two Caterpillar Câ€15 – 355 kW, 380V, 3 phase diesel
generators
- Fabricate and install 140 gallon fuel tank in corner of room
- Supply and install Sullivan Palatek 30 hp rotary screw air compressor with 120
gallon tank
- Install hinged door on side of building for electrical cabling access.

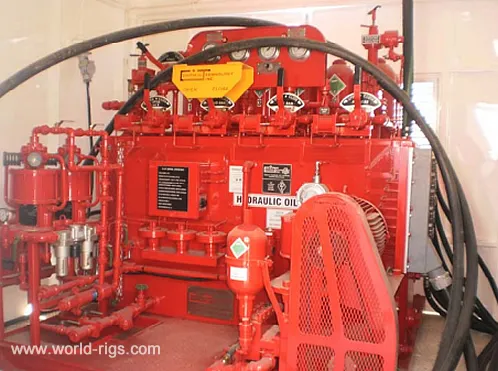

6.6 Accumulator Room
- Accumulator room is 12’ 6” long x 12’ wide and 8’ 6”
- Supply and install 4 station 120 gallon Control Technology Accumulator
- 10 each 11 gallon accumulator bottles
- One Tâ€25 Weatherford triplex charge pump
- Two 8 ½”, 40:1 air pumps
6.7 Paint
- Combination building has been painted gray
Section 7 - Well Control

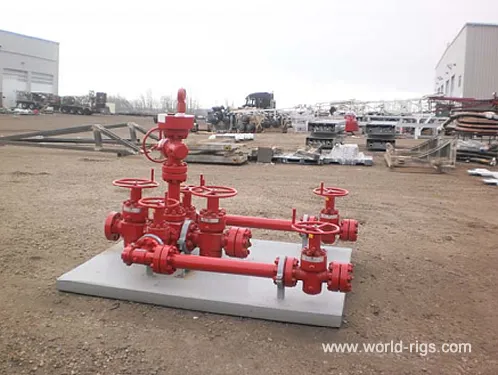

7.1 Choke Manifold
- Oilfield skid dimensions to be 10’ long 6’ wide.
- Supply one single gut 2” X 3” choke manifold c/w manual choke

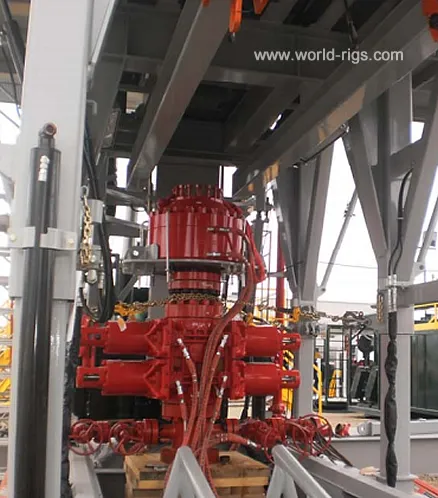

7.2 Blowout Preventors
- Supply one 11” 5000 PSI new Cameron Townsend Tâ€84 double ram preventer with
one set 3 ½” rams and one set of blind rams
7.3 Annular
- Supply one 11” 3000 PSI new Cameron (Townsend) Tâ€90 Annular
7.4 BOP Accessories
- Supply one 3 1/8” SS flanged 30’ 5000 PSI choke hose
- Supply one adapter spool 11” x 5,000 psi – 11” x 3,000 psi
- Supply one 11” 5000 PSI drilling spool with 3 1/8” outlets
- Supply one 3 1/8” 5000 PSI HCR gate valve (hydraulic)
- Supply and install 3 1/8” 5000 PSI manual gate valve
- Supply two 2 1/16” 5000 PSI manual gate valve
- Supply one 2 1 /16” 5000 PSI check valve
- Supply one DSA 2 1/16” X 3 1/8”
- Supply all studs and ring gaskets
Section 8 - Casing Stabbing Board

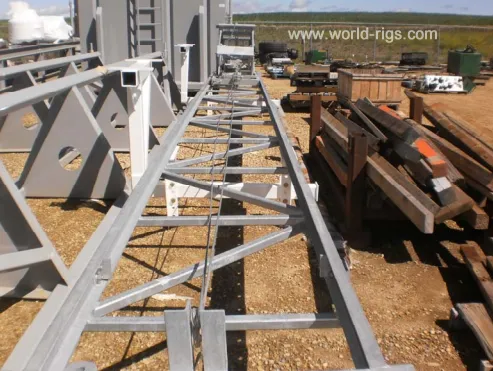

8.1 Casing Stabbing Board
- Air operated casing stabbing board
Section 9 - Water/Fuel/Change House Skid
9.1 Water Tank
- Supply 100 barrel skid mounted water tank
- Supply and install two 4 x 3 Centrifugal transfer pumps
- Supply and install discharge and suction manifolds
- Tank will be built from ¼” plate
- Tank access hatch and drain plug

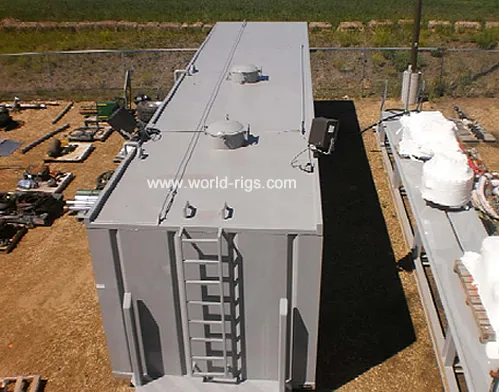

9.2 Fuel Tank
- Supply skid mounted fuel tank 100 barrels
- Supply and install two 3/4 hp 110v fuel pumps 1 ¼” X 1”
- Supply and install discharge and suction manifolds
- Supply one fuel water and solids separator
- Tank will be built from 1/4” plate
- Tank access hatch, drain plug and sight glass
9.3 Change House
- Change room is 12’ wide x 12’ 6” long
- Fabricate and install fold down lunch table
- Supply and install padded bench
- Supply and install 12 change lockers
Section 10 - Kelly Bar & Bushings
10.1 Kelly Bar & Kelly Drive Bushings
- 4 ¼” Hex Kelly 37’ overall c/w shipping scabbard.
- Square Drive Bushing for 4 ¼” Hex Kelly & 17 ½” rotary table |
