SOLD

Model : T650W Drill Rig
Manufacturer : Reichdrill
Year : 2014
Condition : Used

Description :

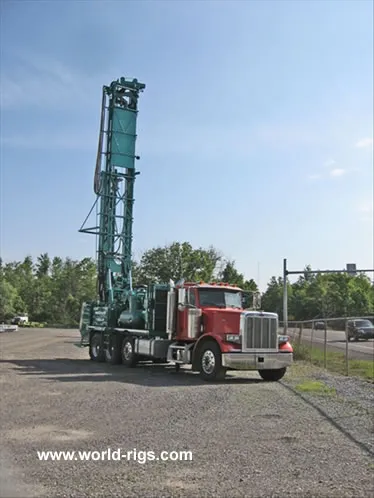

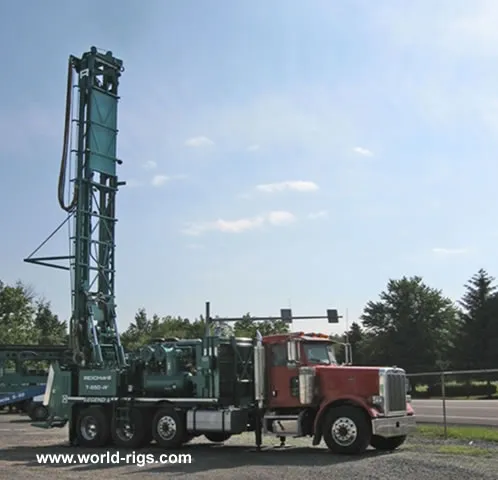

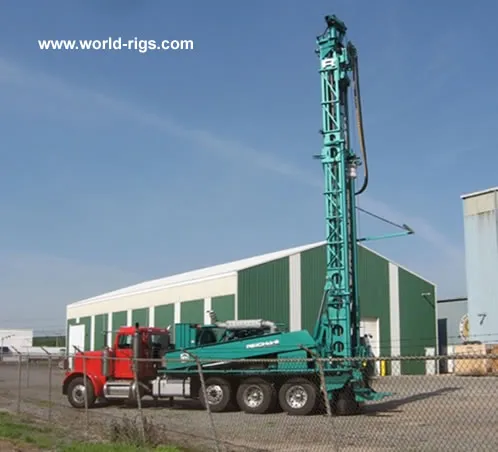

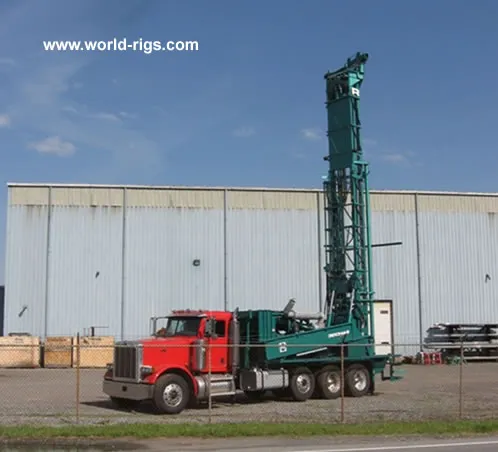

(Rebuilt in 2014) Reichdrill T-650-W Subframe Type Drill Rig
For Mounting On Conventional 6x4 Chassis Truck

With Standard And Selected Optional Equipment:
Drill Power Unit : CAT C15 Diesel Deck Engine, Rated 580hp @ 1800 Rpm,
S/N : With Exhaust Wrap Kit

Comressor : Sullair Air Compressor, Rated 1050 Cfm / 350 Psi,
Mesabi Cooler For Operation Up To 110° Ambient Temperature With
Thermostatic Fan Control
Mast : 34 Ft. With 28 Ft. Stroke, 22” Table
Rotary Head : 0 -106 Rpm @ 85,795 Lb.In. Torque (55 Gpm Pump)
9 Pod Carrousel 4” X 20’ With Auto Index, Recihdrill Style
15 Piece Pipe Rack With Grab Rail
Night Lighting (4) Halogen
8,500 Lb. Winch With 270° Swing Jib With Isolated Control
Hoist 55,000 Lb. W/ 160hs Hoist Chains, 35,00 Lb. Feed Pulldown Pressure

Pipe Lifting Rod
Hydraulic Cylinder W/ Cable Breakout
20 Gpm Water
Injection Pump W/ Suction Strainer
Aluminum Vandal Cover
Auxliary Air Regulator
Air Operated Side Winch With Hydraulic Raise/Lower
2 Each - Hammer Holder 7” I.D.
Platforms & Walkway Group, Folding
Right Hand Deck Ladder
Rotation Torque Limit Control

Wireless Radio Remote W/ 2 Speed Winch Down
Regen System
1 Each - 4” Split Table Bushing
1 Each - 4” Dia. X 24” Long, 4” Api If Pin, 2 7/8” Api Of Box Spindle Sub
2 Each - Combined Safety, Parts And Operations Manual, In Cd Form Only
Fuel Tank, Dual 130 Gal. Tanks, (260 Gal. Total)
Tool Box, Under Rod Box
Jacks : 2-Rear 36 In. Stroke, 2-Front 48 In. Stroke

Lubricants : Compressor-Synthetic Pao 32; Hydraulic - Chevron Clarity 46 (Aquamarine)
Frame Mounted Piping For Webasto Diesel Fired Engine Heater
Battery Isolated Keyed Switch
Engine Block Heater For Truck, 110 V.
Mounted On a 2006 Peterbilt 379 Truck 6x4,
183” Ca, with Caterpillar C-15 Acert Diesel Engine @ 575 Hp.
Eaton/Fuller 8 Speed Lo/Lo Transmission
12,000 Lb. Front
Axle, 46,000lb. Rear Axles With Steerable Lift Axle.

Accessories :
1. 1 Each - 4 1/2” Split Table Bushing.
