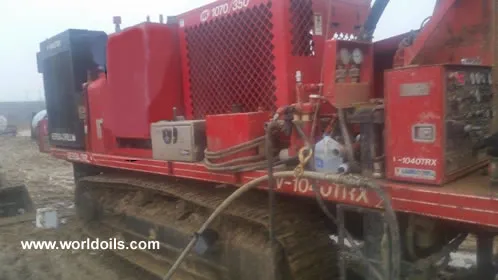

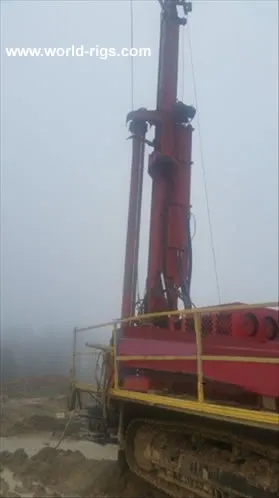

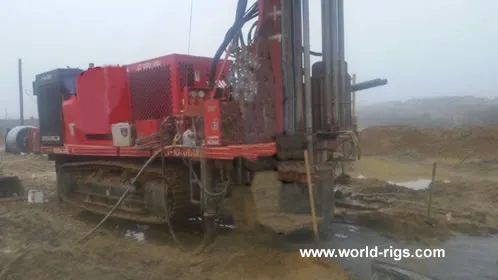

Versa Drill V-1040TRX Drill Rig for Sale
Used Drilling Rig 2011 Built for Sale

Model : V-1040TRX Drill Rig
Manufacturer : Versa Drill
Year : 2011
Condition : Used

Description:

2011 Versa- Drill V-1040TRX Drill Rig
Deck Engine- 5839 Hours
Compressor- 100 hours, brand new replaced in December 2014
Rods- 400' ft of 3.5 in

Drill Specification
Deck Engine: CAT C-15 (540 HP) A 2,100 w/Dedicated 150 gallon fuel tank, to include fuel cooler.

Combination Compressor Clutch/Pump
Drive Box:
Air compressor clutch engage/disengage (manual) and hydraulic pump gear box.

Hydraulics:
Complete hydraulic system mounted on two(2) hole gear box with integral air compressor clutch
engage/disengage (manual), deck engine fly wheel driven.

Derrick:
10”x16” tubular construction 34’ overall length, 26’ overall head travel and 55,000 lb. rating.

Feed System:
Hydraulic cylinder driven 3” gear track & 4 pinion gears (patented), w/40,000 lb.
pullback 22,100 lb pull down.

Standard
Top Head:
High Performance 3-Speed Top head w/ 2 ½” bore hole:
High Torque 8,100 ft.-lb @ 132 RPM
Mid Torque 6,200 ft.-lb @ 173 RPM
Low Torque 4,280 ft.-lb @ 250 RPM

Control Panel:
Left hand mounted panel with functionally grouped gauges and controls with twin
fold-up platforms.
Leveling Jacks:  Four (4) 36” stroke hydraulic leveling jacks with independent controls.
Two (2) mounted behind cab and two mounted at rear of rig.

Centralizer Table:
Swing out rear section and retracting front section with dual cylinder and 10” retract capability.

Carousel:
Hydraulic rotating drill pipe carousel system, set up for fifteen (15) pieces of 3 ½” x 20’ drill pipe.

Drill Pipe Rack:
Hold 15 pieces of drill pipe, includes stabilizer shoot located on the inside of rod box

Main Winch:
Hydraulic winch, 12,000 lb. capacity, bare drum.  Includes jib boom w/hydraulic swing and extend.

Auxiliary Winch:
4,000 Auxiliary winch w/ swing jib & additional night light

Air Compressor:
1070 CFM/350 PSI Ingersoll-Rand self contained modular compressors

Water Injection:
Bean 25 GPM Water Injection with foam
Line Oiler:  Seven (7) gallon capacity

Extra’s:
1.  Hammer Holder (2-6” holders)
2.  18” Aluminum catwalk w/ failing
3.  Pro Heat Engine Heater
4.  Hydraulic quick disconnects for operating auxiliary/mud pump functions
5.  Carousel back loading option w/wired remote pendant
6.  Rig will be set up with stand pipe and plumbing for connecting to auxiliary mud pump &
table mounting brackets for mud pit.
7.  200 Gallon fuel tank
8.  Helper stand add on & bracket for future pump

Location : USA
