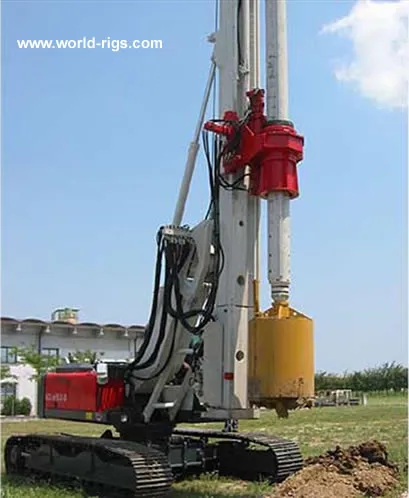

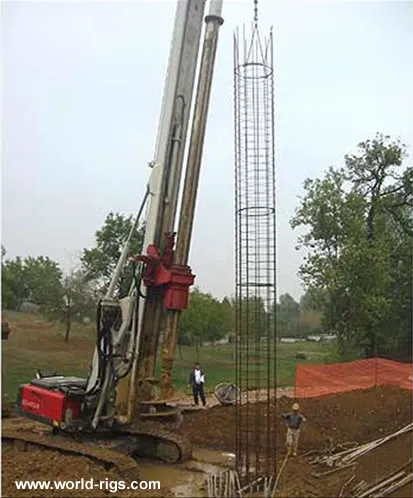

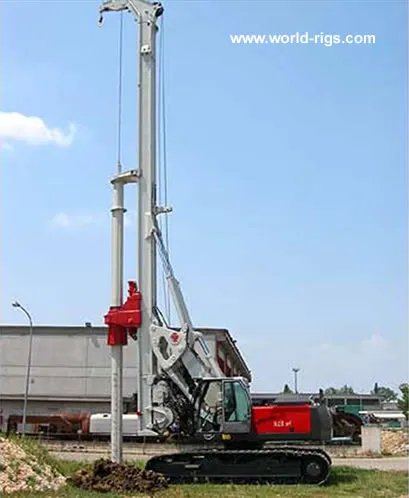

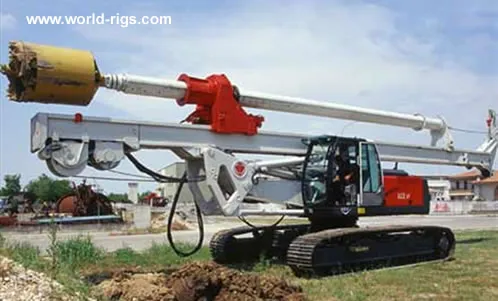

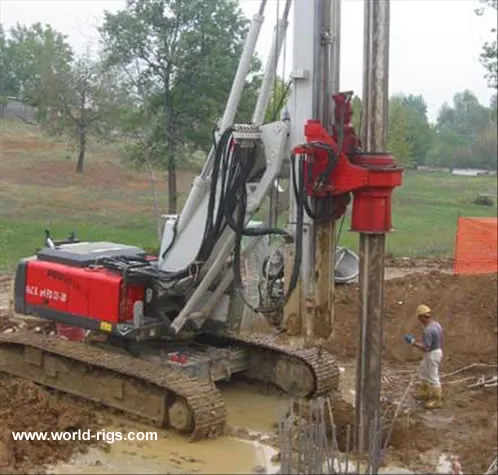

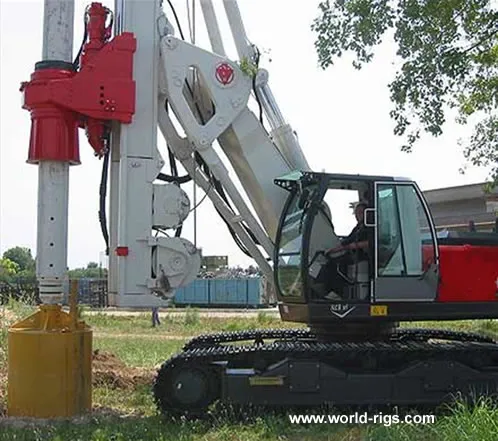

Generic NCB FD 120 Foundation Drilling Rig For Sale
Used NCB FD 120 Foundation Drilling Rig for Sale
Model : NCB FD 120 Foundation Drill Rig
Manufacturer : Generic
Condition : Used
Description :
NCB FD 120 Foundation Drill Rig
Worked 80 hours
Mounted on a Crawler unit with very good undercarriage
Technical Data FD 120
Base :
Type : NCB
Diesel engine : Deutz TCD 2012 L06
Rated power : 147kw @ 2300 rpm
Fuel tank capaciy : 450l
Hydraulic oil tank capacity : 300l
Undercarriage :
Width with retracted tracks : 2490mm
Tracks length : 3590mm
Shoes width : 600mm
Max. travelling speed : 3.5km/h
Hydraulic Plant :
Main pumps : 1x248 lt/min at 2300 rpm
Main pumps : 2x172 lt/min at 2300 rpm
Auxilliary pump : 1x40 lt/min
Max. working pressure : 320 bar
Hydraulic Winches :
Main winch : 12000 daN
Main winch rope diameter : 22mm
Main winch rope speed : 70 rpm
Service winch : 6000 daN
Service winch rope diameter : 17mm
Service winch rope speed : 66 rpm
Hydraulic Rotary Head :
Torque : 12000 daNm
Drilling speed : 8-30 rpm
Spin-off speed : 110 rpm
Stroke : 3500mm
Pull down max. extetraction force : 16000 daN
Pull down max. crowd : 20000 daN
Drilling Dimensions :
Max. diameter : 1300mm
Min.diameter : 500mm
Max. depth with Interlocking Kelly bar : 33.59m
4x9.5mt,Kelly box 150x150
Transport Dimensions :
Height : 3204mm
Length : 11450mm
Width : 2500mm
Weight : 28 ton approx
Location : Middle East Region
|
