| Specifications : |
Schramm T130XD Drill Rig & Package for Sale
Used Drill Rig & Package for Sale in USA
Model : T130XD Drill Rig
Manufacturer : Schramm
Year : 2006
Condition : Used
Description :

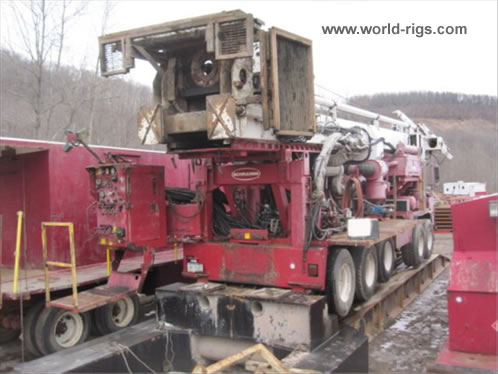

2006 Schramm T130XD Drill Rig
Heavy Hoist Top Drive
MTU/Detroit Ddc1mtu 12v-2000 Diesel Deck Engine @ 760 Hp
Gauges & Safety Shut Down
50' Ft Clear Head Travel To Accommodate Range Iii
Hydraulic Pipe Handling Winch
Pullback Loads Are Directed To Ground & Not To Carrier Frame (Hydraulically Raised & Scoped)
32,000 Lbs Of Pull Down & 130,000 Lbs Of Pull Down
Rotation System Dual Low Speed With High Torque Motors
Single Pipe Loading Arm
Air & Mud Fluid Lines
Operators Console
Mounted On A 2006 CCC (Crane Carrier Company) Truck With 5-Axles
Vin: 1CYDGV6866t047126
Cat C-12 Diesel Engine
117,500 GVW
Fuller 8 Speed Transmission
425/65r-22.5 Front, 11r/22.5 Rear Tires,
Disc Wheels
Sold Together As A Package Which Includes:
- 2'h X 11'8"W X 49'l Back On Sub Base With Hydraulic Outrigger Positions, Skidded

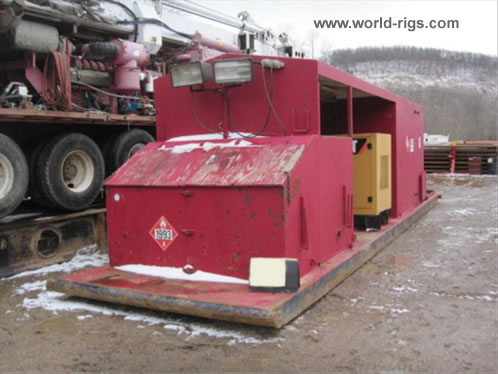

- 8'w X 30'l Round Top Generator House: Cat 60kw Ac Generator, Model D200-P3
Powered By Cat C4.4 Diesel Engine, Switch Gear, Lighting Panels & Controls,
Mounted Skidded

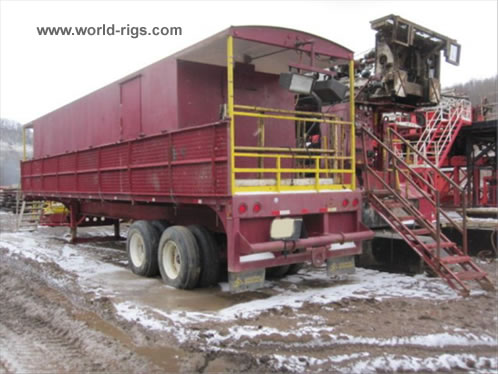

- 8'w X 32'l With 8'l Covered Porch Doghouse Constructed In 3 Sections: Doghouse
With Knowledge Box, Bench Storage, Storage Shelving, Change Room With
Lockers & Storage Facilities, Parts & Mechanical Room, Work Bench, Parts Storage,
Area For Repairs & Maintenance, Heater & Lights, Mounted On A 2008 Stanton
Dynamics T/A Trailer - Vin: 1s9sf41268s8334149, 8'w X 40'l W/ Stairways,
Folding Walkways, Safety Railings, 11r/22.5 Tires, Disc Wheels
Location : USA
|
