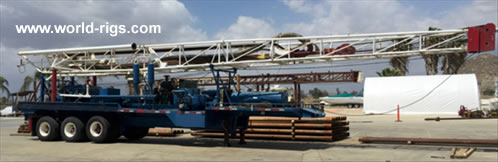

Gefco/Speedstar Jed-A Reverse Circulation and Mud Rotary Drill Rig
Speedstar Used Drilling Rig For Sale
Model : Jed-A Reverse Circulation Drill Rig
Manufacturer : Speedstar
Model Year : 1978
Condition : Used
Description :
1978 Gefco/Speedstar Jed-A Reverse Circulation and Mud Rotary Drill Rig
Trailer Information:
- 3 Axles
- Engine Hours: 14,091
- John Deere Diesel: 225 hp
Drawworks / Mast Information:
- Drawworks Model: Gefco
- Max Hook Load: 80,000 lbs
Drilling Equipment:
- 5-1/2 X 8 FWI Pump
- 18" Rotary Table GD retractable
- Western Hydro Swivel: 6WC with 6” RC Kelly with bushings
Tools & Support Equipment:
- Little Giant Swivel 3" with mud kelly and bushing
- Drill Pipe - Mud Rotary- 4-1/2" OD bottle neck, 4-1/2
- IF” :: 39 joints x 25’ = 975’ 2 joints 7” 6 5/8" reg collars x 27” and misc piping
- Weber pipe trailer with dog house
- 10’ with blow off head
- Misc subs and tongs Air lifting head
- Rotary table bushings
- 5-1/2" IF elevators
- Slips
- 25’ dual swab
- Reverse circulation Kelly and swivel
- Drill Pipe - Reverse
- 5-1/2 IF 5” ID drill pipe x 20' x 45 each
- 10’ 5-1/2" IF, 5” ID drill pipe x 2 each
- 5” ID 8” OD drill collars x 6-5/8 x 17’(+/-) x 3 each
Location : USA |
