Model : SS 40K Drill Rig
Manufacturer : Gefco
Condition : Used

Description :

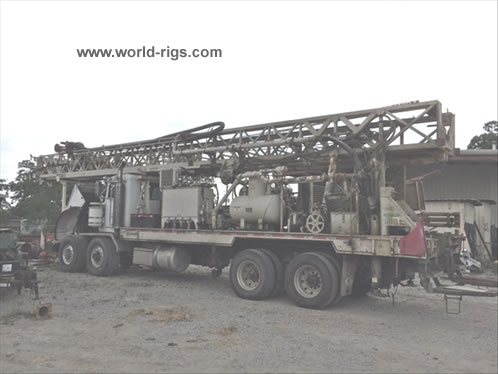

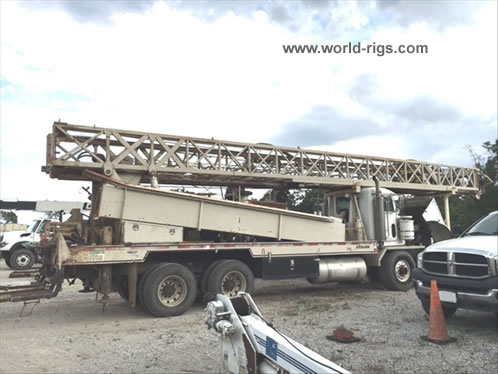

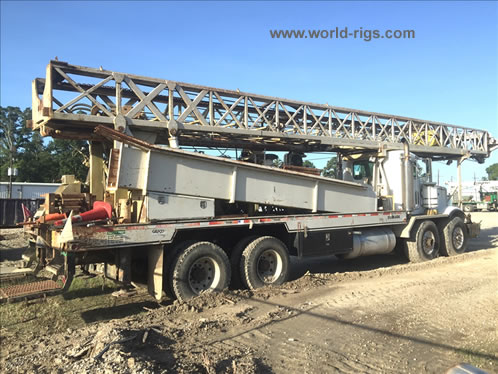

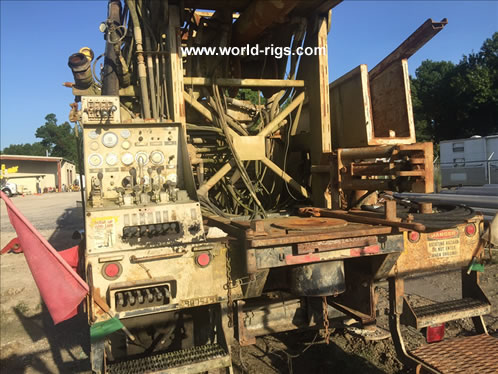

Gefco SS 40K drill rig
Mounted on a 2001 twin steer Peterbuilt 357 Truck
CAT C15 diesel engine @ 550 HP
Sullair 1000 CFM / 350 PSI Air Compressor
Mission Magnum 4X3X13 Mud Pump Mechanical seal
FMC 4 cylinder 18 GPM Water Injection Pump
7 Gal capacity air operated Lubricator
Rebuilt - Tophead Drive 6” through hole (dual motor)
20,000 lbs. winch single line pull, hydraulic drive, capable of 2 part reeving for 40,000 lbs
Hoist / Pulldown:  Top head hoist / Holdback 40,000 lbs & Pulldown 20,000 lbs
Single arm loader and carousel to handle (4-1/2”) drill pipe
Rebuilt - Power Take Off: Gear driven with pressure lubrication
Auxiliary Winch: Braden model BG8 winch mounted on mast
All Hydraulic Pumps & Motors replaced in May 2016

Location : USA
