Bauer BG11H Crawler Drilling Rig - 2015 Built for Sale
Name :
Bauer BG11H Crawler Drilling Rig - 2015 Built for Sale
ID :
WR666
Year manufactured :
2015
Price :
Inquire for pricing
Specifications :
Bauer BG11H Crawler Drilling Rig for Sale
Bauer BG11H Crawler Drilling Rig - 2015 Built for Sale
2015 Built Bauer BG11H Crawler Drilling Rig for Sale
Bauer Used Drilling Rig for Sale
Used Bauer BG11H Crawler Drilling Rig for Sale
Drilling Rig - Bauer BG11H Crawler for Sale in USA
Bauer Land Drilling Rig for Sale in USA
SOLD
Model : BG11H Crawler Drill Rig
Manufacturer : Bauer Maschinen
Year : 2015
Condition : Used
Description :

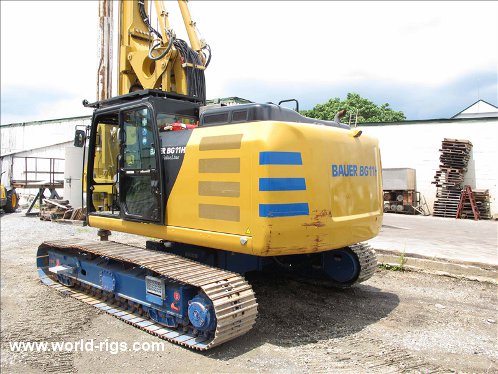

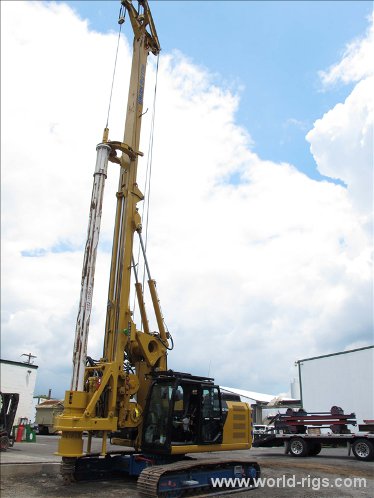

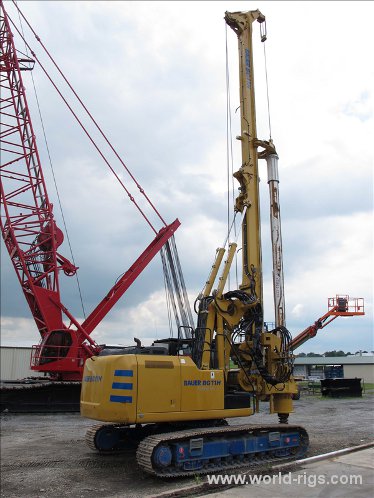

2015 Bauer BG11H Crawler Drill Rig
1600 hours
Rig is outfitted with a 4-section kelly bar and has the KDK110 drive on it.
Max. drilling diameter: 1,650 mm / 5.4 ft
Max. drilling depth: 40.0 m / 131.2 ft
Torque: 110 kNm / 81,130 ft-lbf

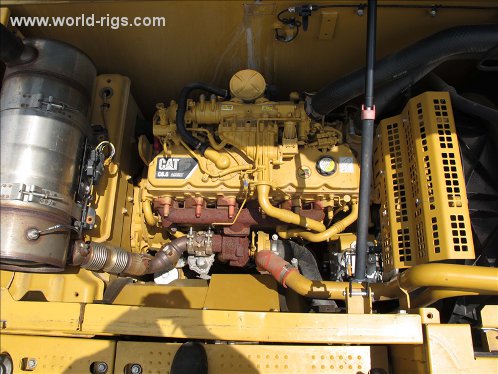

Engine: CAT Tier 4 interim – C6.6 ACERT CAT Tier 4 final – C7.1 ACERT
Power: 122 kW @ 1,800 U/min 163.6 HP @ 1,800 rpm
Height: 16.5 m / 54.3 ft
KDK rotary drive: – Single gear drive with strong and robust design and
high mechanical and hydraulic efficiency
Protection of the rotary drive with an integrated Kelly damping system
Adjustment to various soil conditions with 2 selectable modes of
operations Winches
Superior and tested effective line pull and line speed
Load classification M6/L3/T5 for main winch for heavy-duty,
continuous operation
A special grooving system on the main winch drum and a rope pressure
roller reduce wear on the wire rope
Pinned connection for easy mounting and dismantling of the winch on the mast
Transparent ring for easy oil check (main winch) Kinematic system
Bauer proven H-kinematic system with backstay cylinders and boom cylinders

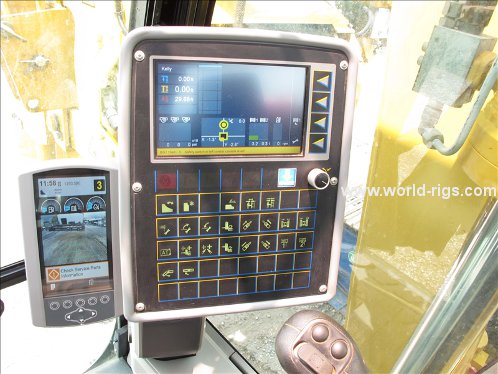

for best stability Bright color monitor
Electronic load sensing on main and auxiliary rope
Indicator for position of uppercarriage Upper Kelly guide
No additional limit switch necessary
Undercarriage – Solid Bauer-design for 360° drilling operating radius
Telescopic with hydraulic cylinders
Large footprint to resist high overturning moments – High traction forces
Ergonomic cabin design – FOPS compliant – Bright color monitor
Clear arrangement of instruments and displays
Excellent visibility to drilling spot – Ease of operation
Uppercarriage – HSE features – Heavy duty base frame optimized
for BG attachment
Rear view camera, beacon flash light and warning horn
Multigrade oil for reducing fuel consumption – Easy access to uppercarriage
Two mast sections with pin joint for optimized transport height
Hydraulically operated upper kelly guide – Lower noise emission
Crowd system with crowd cylinder – Crowd system “upside-down” installation
Easy handling for transport without disconnecting hydraulic hoses
Operating weight 39 t (as shown) 85,980 lbs
Location : USA
WorldRigs has Bauer BG11H Crawler Drilling Rig - 2015 Built for Sale
