Derex 2630-22 Arthur Drilling Rig for Sale
Drilling Rig - Derex 2630-22 Arthur for Sale
Used Derex 2630-22 Arthur Drilling Rig for Sale
Derex 2630-22 Arthur Used Drilling Rig for Sale
Derex Arthur Drilling Rig for Sale
Derex Used Land Drilling Rig for Sale
Derex 2630-22 Arthur Drilling Rig for Sale in USA
Description :

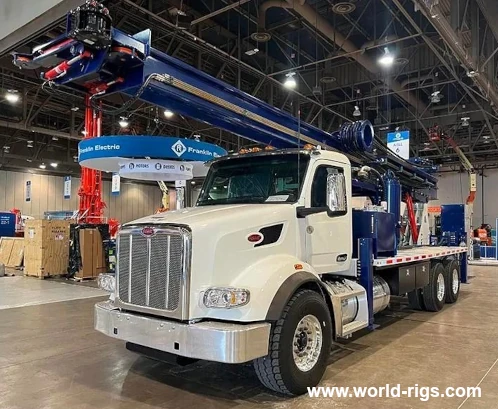

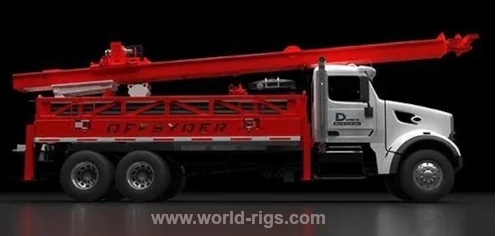

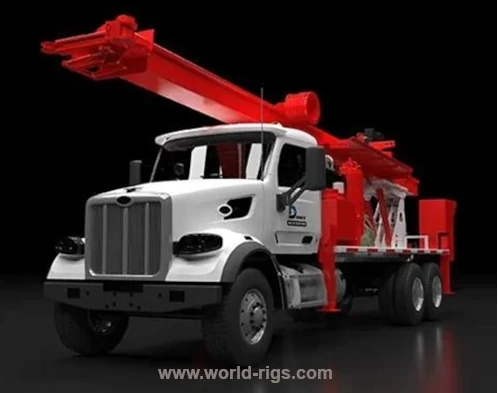

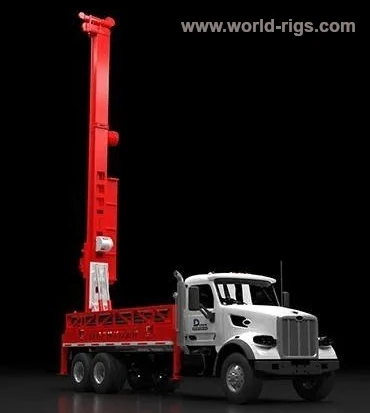

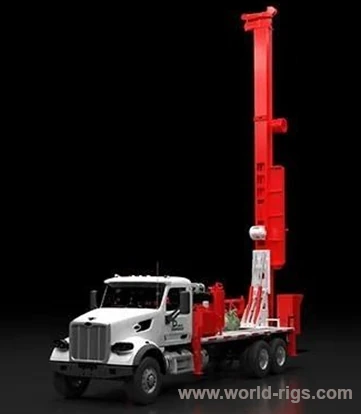

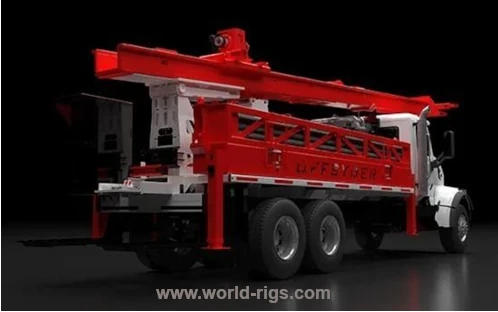

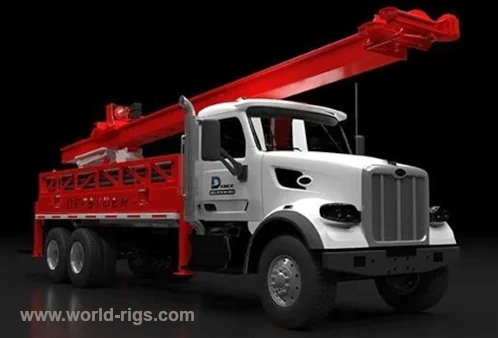

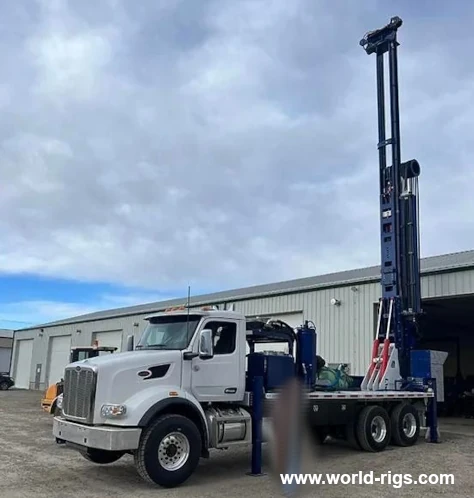

Derex 2630-22 Arthur (Air – Rotary – Top – Head) Drill Rig
Truck
Peterbilt 567
Paccar 13 Litre.
Allison 6 speed automatic
Air ride
Transfer Case
Namco (oilfield quality)
Safe Shift
Hydraulic System
Sundstrand, Bosch Rexroth plus gear pump
Top Head
Variable torque and RPM with 2” thru-hole
0-160 rpm @ 8,000-lbf torque
Derrick & Feed System
26ft top head stroke
30,000-70,000 lbs pullback
20,000-lbs pulldown
120 FPM
Air Compressor
Vanair/ Sullair 750 cfm / 350 psi @ 1,800 rpm and
1050 cfm / 350 psi @ 2,200 rpm
Main Winch
12,000 lbs
Hydraulic 135° jib
2,500 lbs
Remote on helpers side for winch
Control Panel
Straight hydraulic controls (no electrics to fail)
Marine grade electric switches (for lights)
Murphy engine monitor display
Twin platforms
Leveling Jacks
Four 36” stroke independently controlled
Night Lights
6 LED night lights
Toolboxes
30”x 18” x 18”
Overall Dimensions
Length: 38ft
Width: 8ft 6”
Derrick up height: 42ft
Derrick down height: 13ft 4”
Water Injection
9-GPM FMC injection pump
Gross Weight
44,000lbs - 46,000lbs
Pre-Order Drill from EWDAdditional Options
4 – 6 Month Leadtime from Date Ordered
Sand Line Winch
1,500ft sand line
Mud Pump
3x2x13 centrifugal 300 gpm/300 psi
Centerline piston 150 gpm/600 psi
Line Oiler
Many oilers available
Water InjectionOffsyder Rod Handling System
18 gpm FMC injection pump
Drill Pipe Packages
Wire Feeder and Box
Hydraulic or Gas Welders
Location : USA
|
