Derex 1340-14X DR (Dual Rotary) Drilling Rig - For Sale
Name :
Derex 1340-14X DR (Dual Rotary) Drilling Rig - For Sale
ID :
WR1019
Year manufactured :
New
Price :
Inquire for pricing
Specifications :
Derex 1340-14X DR (Dual Rotary) Drilling Rig for Sale
Drilling Rig - Derex 1340-14X DR - For Sale
New Derex 1340-14X DR (Dual Rotary) Drilling Rig for Sale
New Derex 1340-14X DR Drilling Rig for Sale
Derex 1340-14X DR Drilling Rig for Sale
New Derex Land Drilling Rig for Sale
Derex 1340-14X DR (Dual Rotary) Drilling Rig for Sale in USA
Description :

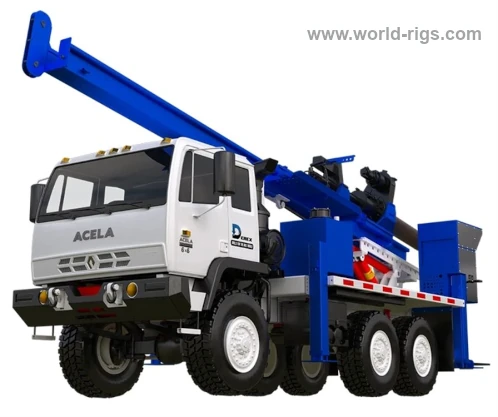

Derex 1340-14X DR (Dual Rotary) Drill Rig
Truck Acela Monterra 6×6 No Emission Controls 330HP Caterpillar 7.2L Turbo-Charged Diesel Engine Full-Time All-Wheel Drive Allison Automatic 7-Speed Transmission U.S. Army “Ultra-Reliable” Certification 22″ Ground Clearance
Deck Motor Cummins 6.7 litre 300 HP tier 4
Hydraulic System Bosch Rexroth plus gear pump
Top Head Variable torque and RPM with 2” thru-hole 0-125 rpm @ 3,500-lbf
Lower drive Variable torque and RPM with 10” thru-hole 0-23 rpm @ 20,000-lbf
Diverter Simple seal design with 4” NPT discharge to control cuttings.
Derrick & Feed System 13ft top head stroke (handles 10ft x 3" OD drill pipe) 40,000-lbs pullback 20,000-lbs pulldown 100 FPM
Derrick slide/ dump 4ft Derrick slide for angles up to 45°
Main Winch Manual jib 2,500 lb. Remote on helpers side for winch
Control Panel Straight hydraulic controls (no electrics to fail) Marine grade electric switches (for lights) Murphy engine monitor display Twin platforms
Leveling Jacks Four 36” stroke independently controlled
Night Lights 6 LED night lights
Toolboxes 30”x 18” x 18”
Overall Dimensions Length: 24ft 11” Width: 8ft 6” Derrick up height: 24ft 6” – 28ft 6” with Derrick slide Derrick down height: 11ft
Water Injection 9 gpm FMC injection pump
Gross Weight 28,000lbs - 30,000lbs
Casing Diameter 4", 5" & 6" (with 8" & 10" option for surface casing)
Pre-Order Drill from EWDAdditional Options 4 – 6 Month Leadtime from Date Ordered
Sand Line Winch 1,500ft sand line
Mud Pump 3x2x13 centrifugal 300 gpm/300 psi Centerline piston 150 gpm/600 psi
Air Compressor Options Vanair / Sullair 600cfm / 250psi @ 1,800rpm Vanair / Sullair 733cfm / 150psi @ 2,200 rpm
Line Oiler Many oilers available
Water InjectionDrill Pipe Packages 18 gpm FMC injection pump
Wire Feeder and Box
Hydraulic or Gas Welders
Location : USA
WorldRigs has Derex 1340-14X DR (Dual Rotary) Drilling Rig - For Sale
Images
Derex 1340-14X DR (Dual Rotary) Drilling Rig for Sale
Drilling Rig - Derex 1340-14X DR - For Sale
New Derex 1340-14X DR (Dual Rotary) Drilling Rig for Sale
New Derex 1340-14X DR Drilling Rig for Sale
Derex 1340-14X DR Drilling Rig for Sale
New Derex Land Drilling Rig for Sale
Derex 1340-14X DR (Dual Rotary) Drilling Rig for Sale in USA
Derex 1340-14X DR (Dual Rotary) Drilling Rig - For Sale
Name :
Derex 1340-14X DR (Dual Rotary) Drilling Rig - For Sale
ID :
Year manufactured :
New
Price :
Inquire for pricing
Specifications :
Derex 1340-14X DR (Dual Rotary) Drilling Rig for Sale
Drilling Rig - Derex 1340-14X DR - For Sale
New Derex 1340-14X DR (Dual Rotary) Drilling Rig for Sale
New Derex 1340-14X DR Drilling Rig for Sale
Derex 1340-14X DR Drilling Rig for Sale
New Derex Land Drilling Rig for Sale
Derex 1340-14X DR (Dual Rotary) Drilling Rig for Sale in USA
Description :
Derex 1340-14X DR (Dual Rotary) Drill Rig
Truck Acela Monterra 6×6 No Emission Controls 330HP Caterpillar 7.2L Turbo-Charged Diesel Engine Full-Time All-Wheel Drive Allison Automatic 7-Speed Transmission U.S. Army “Ultra-Reliable” Certification 22″ Ground Clearance
Deck Motor Cummins 6.7 litre 300 HP tier 4
Hydraulic System Bosch Rexroth plus gear pump
Top Head Variable torque and RPM with 2” thru-hole 0-125 rpm @ 3,500-lbf
Lower drive Variable torque and RPM with 10” thru-hole 0-23 rpm @ 20,000-lbf
Diverter Simple seal design with 4” NPT discharge to control cuttings.
Derrick & Feed System 13ft top head stroke (handles 10ft x 3" OD drill pipe) 40,000-lbs pullback 20,000-lbs pulldown 100 FPM
Derrick slide/ dump 4ft Derrick slide for angles up to 45°
Main Winch Manual jib 2,500 lb. Remote on helpers side for winch
Control Panel Straight hydraulic controls (no electrics to fail) Marine grade electric switches (for lights) Murphy engine monitor display Twin platforms
Leveling Jacks Four 36” stroke independently controlled
Night Lights 6 LED night lights
Toolboxes 30”x 18” x 18”
Overall Dimensions Length: 24ft 11” Width: 8ft 6” Derrick up height: 24ft 6” – 28ft 6” with Derrick slide Derrick down height: 11ft
Water Injection 9 gpm FMC injection pump
Gross Weight 28,000lbs - 30,000lbs
Casing Diameter 4", 5" & 6" (with 8" & 10" option for surface casing)
Pre-Order Drill from EWDAdditional Options 4 – 6 Month Leadtime from Date Ordered
Sand Line Winch 1,500ft sand line
Mud Pump 3x2x13 centrifugal 300 gpm/300 psi Centerline piston 150 gpm/600 psi
Air Compressor Options Vanair / Sullair 600cfm / 250psi @ 1,800rpm Vanair / Sullair 733cfm / 150psi @ 2,200 rpm
Line Oiler Many oilers available
Water InjectionDrill Pipe Packages 18 gpm FMC injection pump
Wire Feeder and Box
Hydraulic or Gas Welders
Location : USA
WorldRigs has Derex 1340-14X DR (Dual Rotary) Drilling Rig - For Sale
Images
Derex 1340-14X DR (Dual Rotary) Drilling Rig for Sale
Drilling Rig - Derex 1340-14X DR - For Sale
New Derex 1340-14X DR (Dual Rotary) Drilling Rig for Sale
New Derex 1340-14X DR Drilling Rig for Sale
Derex 1340-14X DR Drilling Rig for Sale
New Derex Land Drilling Rig for Sale
Derex 1340-14X DR (Dual Rotary) Drilling Rig for Sale in USA
