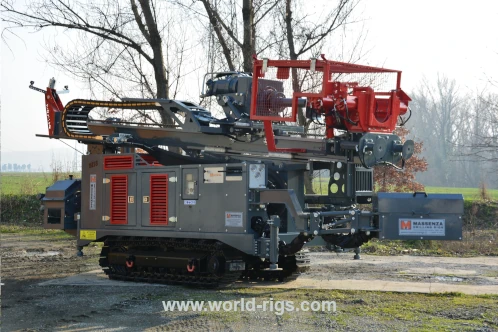

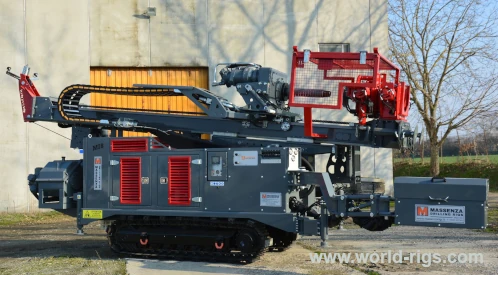

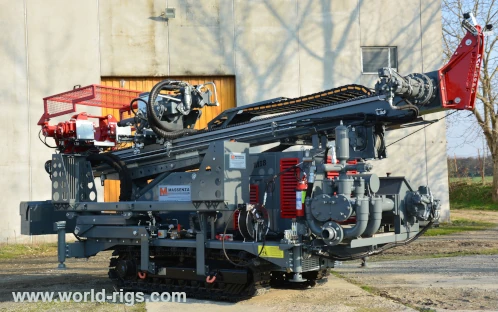

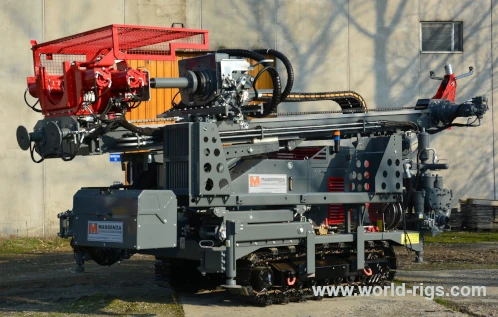

Brand New Massenza Hydraulic Drilling Rig Model Mi8 for Sale
Massenza Hydraulic Drilling Rig for Sale
Drilling Rig - Massenza Hydraulic - For Sale
New Massenza Hydraulic Crawler Drilling Rig for Sale
Massenza Hydraulic Drilling Rig Model Mi8 Mounted On Tracks for Sale
Brand New Massenza Hydraulic Drilling Rig for Sale
Massenza Hydraulic Crawler Drilling Rig Model Mi8 for Sale
Description :
Used for water well research, geological findings, mineral research and
geothermal applications.
Work Methods:
Rotary drilling with direct circulation by Water, Mud, Air or Foam
Down the Hole Hammer Drilling
Auger Drilling
Core Drilling
Main Framework:
Made out of electrically welded high quality steel structural members
and tubular pieces.
N°4 hydraulic stabilizers of which two are fixed and the other two
can be manually widened for the leveling and positioning of rig,
complete with check valve and support plate.
Stabilizers dimensions 3 3/4" x 3 5/32" x 2 3/8", stroke 1 ft 3 3/4",
lifting force 26,566 lbs each.
Pre-arrangement for drill pipe box.
Control Panel Fixed:
Unified type, complete with valves, distributors, pressure gauges, diesel
engine and rig control instrumentation and controls for rig positioning.
Diesel Fuel Tank:
Fuel tank 39.6 US Gallons.
Crawler Undercarriage:
Tracked crawler unit complete with hydraulic circuit of translation and
controls on the portable unit.
Steel tracks width 11 13/16"
Total width 5 ft 5 15/16"
Length 8 ft 4 9/16"
Traction force 15076 lbf
Speed 0.74 m/h (1.2 km/h)
Maximum Drilling Depth with mud pumps is : 260 mts (850 ft).
|
