| Specifications : |
Mobile B-61 HDX Drilling Rig for Sale
Mobile B-61 HDX Drilling Rig - 1991 Built - For Sale
Drilling Rig - Mobile B-61 HDX - for Sale
1991 Built Mobile B-61 HDX Drilling Rig for Sale
Used Mobile B-61 HDX Drilling Rig for Sale
Mobile B-61 HDX Used Land Drilling Rig for Sale
Mobile B-61 HDX Drilling Rig for Sale in USA
Description :

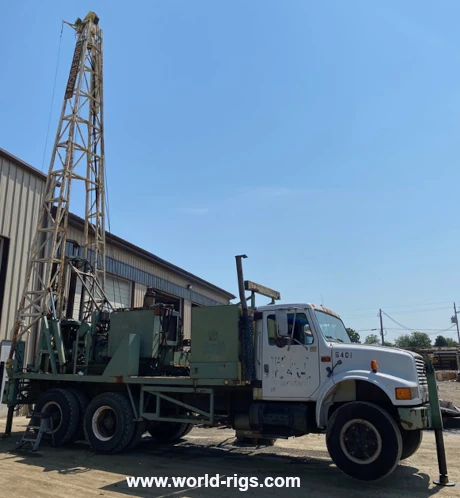

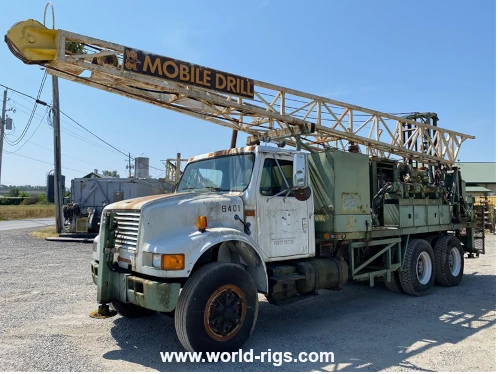

1991 Mobile B-61 HDX Drill Rig - S/N: 91009
PULLMASTER Main & RKI Secondary Winches

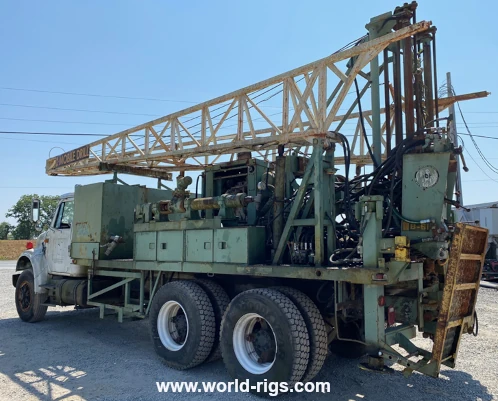

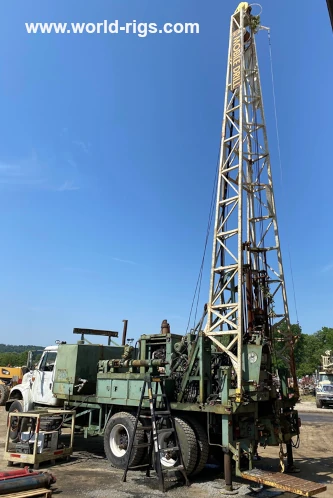

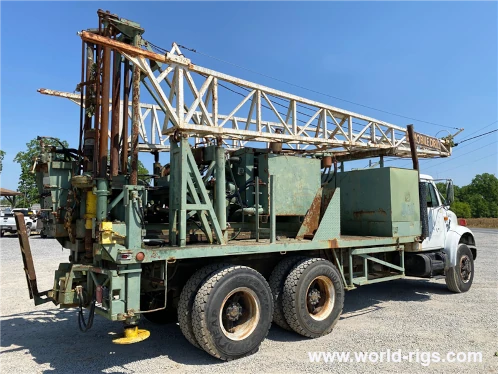

30ft H Hydraulic Raised Stiff Mast

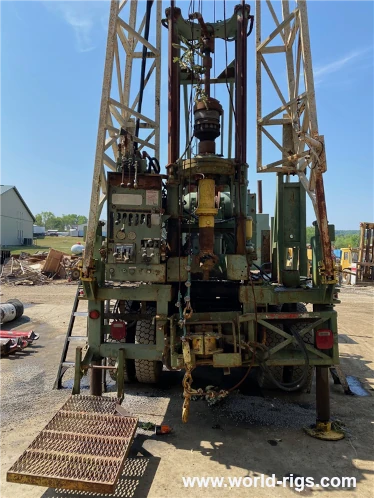

Integrated Table
Hydraulic Tong Assembly

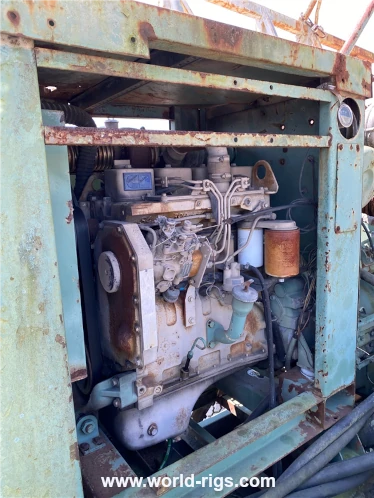

2005 CUMMINS 3.9L Diesel Engine
HPU
MOYNA Hydraulic Water Injection Pump
Water Tank
Drilling Capacities :
Rotary Drilling with 2-5/8” diameter drill rod…… 1350 ft. (410 m).
= we can provide new drill pipe like this at additional cost
approximately $250 USD per 5 ft. stick.
Core Drilling with AW size tools or AQ wire line… 2250 ft. (685 m).
Core Drilling with NW size tools or NQ wire line… 1350 ft. (410 m).
Continuous Flight-Auger Diameter Range…... up to 14” (355 mm).
Max. Depth w/ 6” Dia. (152.4 mm) Augers…………………………….. 360 ft. (110 m).
Max. Depth w/ 8” Dia. (203.2 mm) Augers…………………………….. 250 ft. (76.2m).
Note: Drilling Capacities are based on maximum depths obtained in
actual field test and will vary with local subsurface conditions.

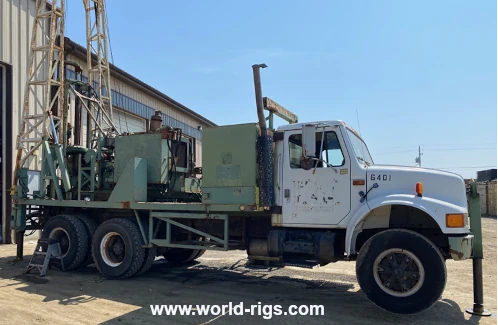

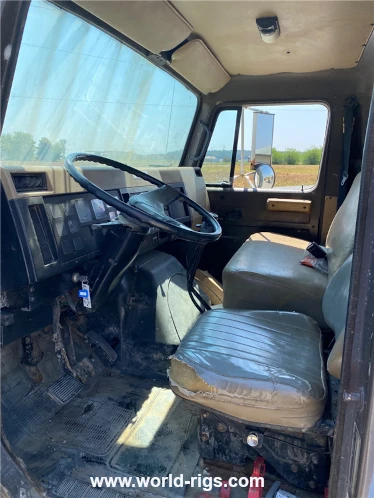

Mounted on a 1991 INTERNATIONAL 4900 6x4 T/A Truck - VIN-1HTSHN4R3MH371512
IHC 6-Cyliner Diesel Engine
EATON 8-Speed Transmission
(3) Hydraulic Leveling Jacks
10.00R20 Front & 11R22.5 Rear Tires & 210" WB
Dayton Wheels (75,751 Odometer Miles)
Note: If you are wanting to do direct rotary drilling with drill pipe
and roller cone bit or DTH hammer then you will need an add auxiliary
mud pump or auxiliary air compressor. If you do not have mud pump or
compressor then we do have some options in stock we can offer at
additional costs :
Ingersoll-Rand 400 CFM / 200 PSI air compressor, enclosed, trailer mounted.
Ingersoll-Rand 600 CFM / 125 PSI air compressor, enclosed, trailer mounted.
Ingersoll-Rand 750 CFM / 300 PSI Air Compressor mounted on 1996 Volvo
truck p/b Cat 3406E.
Sullair 900 CFM / 350 PSI air compressor, enclosed, skid mounted.
Gardner Denver FXFF 4 x 5 Duplex mud pump p/b CAT 3304, skid mounted.
Gardner Denver FXF 4 x 5 Duplex mud pump p/b Waukesha 4-cylinder diesel
engine, skid mounted.
Location : USA |
