Description :

Main Specifications :
Model TZJ 30/1700
Drilling Depth 5" pipe 8,000 ft, 4-1/2" pipe 10,000 ft
Max hook load 396,800#
Power (2) 525 hp 2100 rpm
Mast height 125 ft
Traveling system 6 x 5
Effective lines 10
Diameter of the drilling line 1-1/4"
Hoisting speed of hook 0.2-1.2 m/s
Table diameter 27 1/2"
Height of substructure 19.7 ft
Ambient temperature -20C to +50C

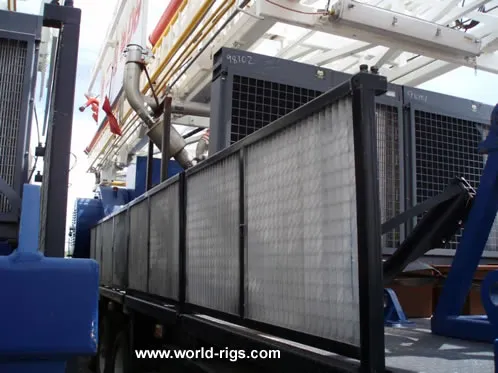

Engine : Detroit 60 series 525 hp

Transmission

Compound Box
Model BJX260B
Max. input rotary speed 2500 rpm
Max. net output torque 28000N-m

Rotary table gear box
Model ZX140
Max input rotary speed 2100rpm
Max net input torque 10360 lb.ft
Clutch axial disc type A TD318

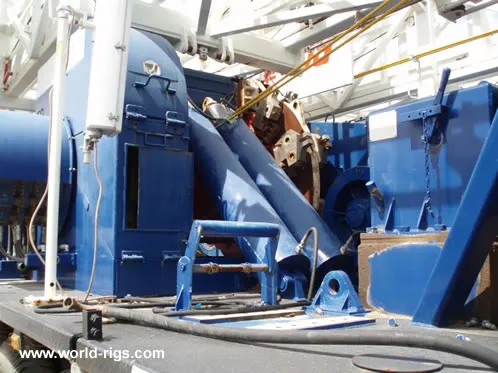

Drawworks (SKF bearing is used)
Model JC285/11
Fast line pulling force 280kN
Max rotary speed 450rpm
Drum diameter and length 22" x 41"
Main drum clutch model axle thrust disc A TD330H
Main drum brake hydraulic brake
Brake disc diameter x thickness 58" x 2.4"
Max working oil pressure 6MPa
Barke pair number 6
Sand drum pulling force 24250 lb
Drum diameter x length 16" x 53"
Sand drum clutch model TPQ124
Wireline capacity 3000M (9/16")
Sand drum brake hydraulic disc brake
Brake ram diameter x length 38" x 8'3"

Hydraulic brake
Model Parmac V-80
Max speed 2300 r/min

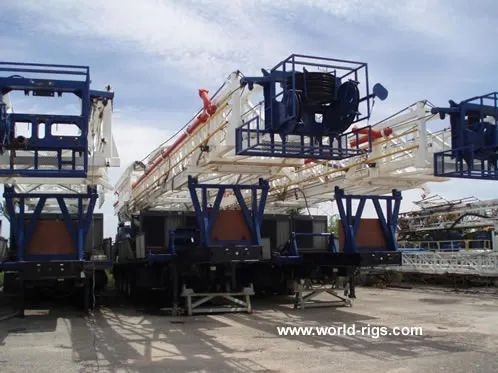

Mast
Model JJ18038
Max load 396,800 lbs
Height 125 ft
Racking platform 72.2 ft. x 75.5 ft x 78.7 ft
Capacity 9,870 ft (4 1/2" DP), 8200 ft (5" DP)
Wind Capacity 88 mph

Accessory on the Mast
Escaping device for racking platform TS-00, 1 set
Anti-falling device TS-30, 1 set
Hoisting tong oil cylinder, each 1 set for inner and outside tong
Hydraulic winch hoisting pulley, 5 ton, 2 each
Max load for arm crane, 5 ton
Mast standpipe, 4" NPT 35 Mpa (7,000 psi?), single standpipe
Hose, 4" NPT/35 Mpa (7,000 psi?) 1 piece, L=18m
Deadline anchor and weight indicator JZG24, 1 set
Hydraulic catwork Y1516D, 15 ton piece

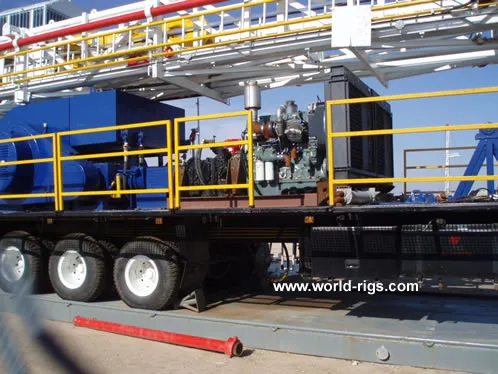

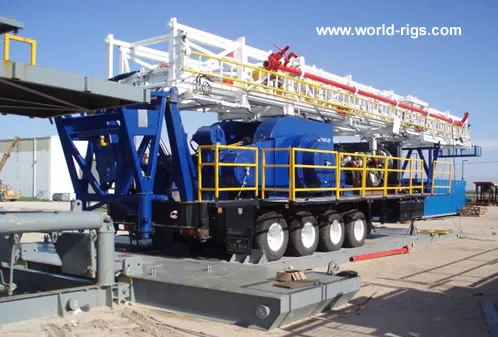

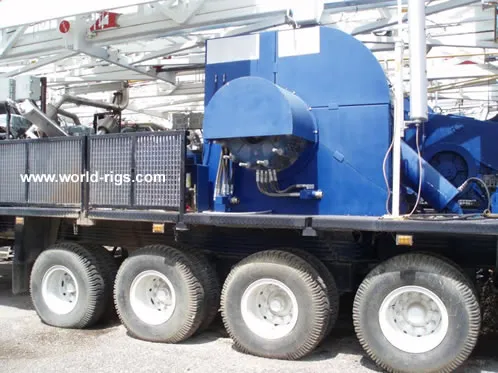

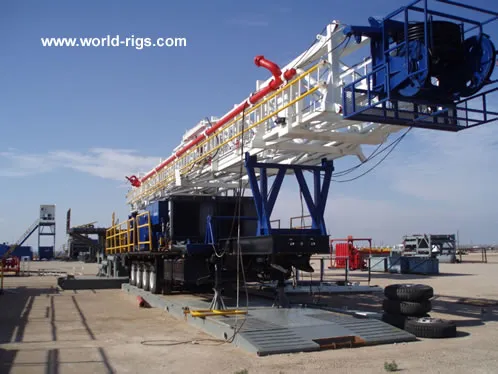

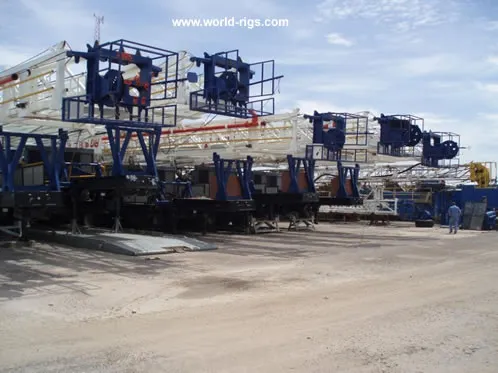

Trailer
Model ES9660
Rated load 147,880 lb
Front three axels triple-steel board and balance suspension, 30,800 lb
Rear one axle air servo-steering axel, 26,450 lb
Departure angle 20 degrees
Minimum ground clearance 14.5"
Tire 12-20 (double tire)

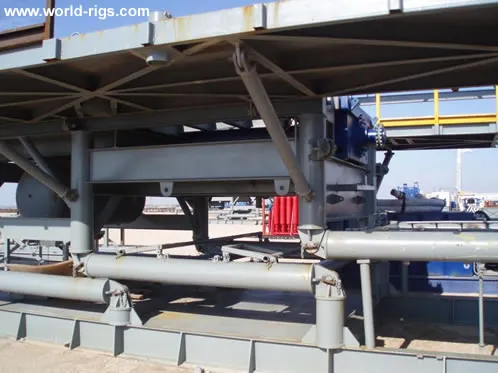

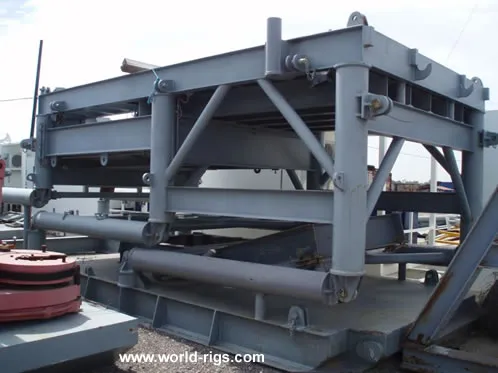

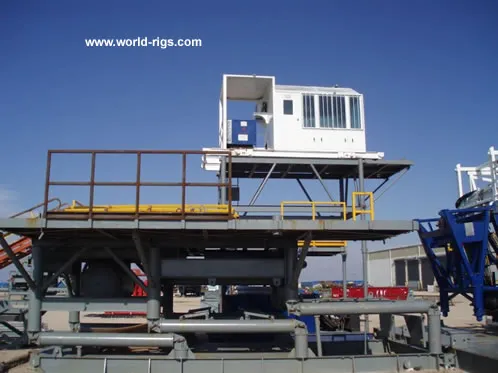

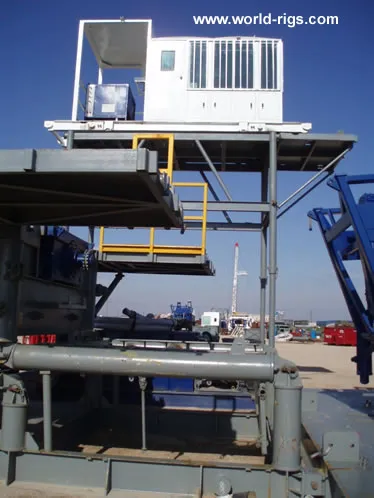

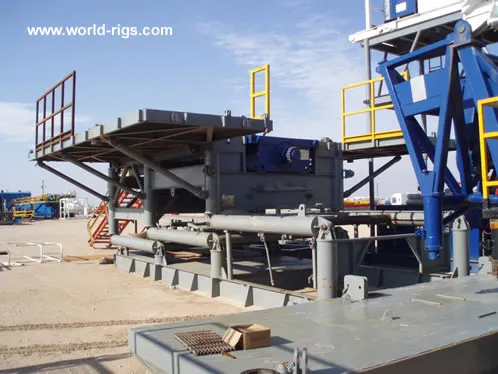

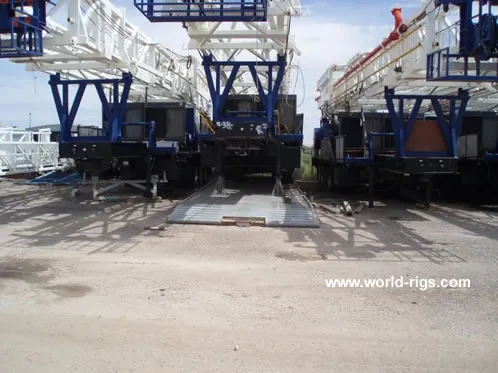

Substructure
Model ZZT180
Max load 396,800 lb
Working platform height 19.7 ft
Structure type six stand mechanical rising
Platform size 24 ft x 20 ft
Height below rotary beam 15.7 ft

Other Accessory
Escape slide away, 1ea.
Substructure ladder, 2ea.
Ladder for driller, 2ea.

Crown Black
Model TC180
Max load 396,800 lb
Pulley quantity 7 ea (including one sandline pulley)

Hook Block
Model YG225 (Integral type)
Max load 500000 lb
Pulley diameter and quantity 36", 5 piece

Swivel (SFK bearing used)
Model SL226
Max load 500000 lb
Stream bore 3"
Rated working pressure 7000 psi (35 Mpa)

Rotary Table (SKF bearing used)
Model ZP275
Opening diameter 27 1/2"
Max rotary speed 300 rpm
Max load static load 1000000 lb
Max torque 20265 lb/ft

Wireline
Main wireline diameter 32mm, 1000m
Wireline core adopts structure 6 x 19S + 1WRC and grade EIPS

Hydraulic system
Master oil pump
Oil pump displacement 208 L/min
System pressure 2000psi (14 MPa)

Hydraulic winch (3 ton, 5 ton 1 each)
Model YJ3B
Rated pressure 2,000 psi, 2,000 psi
Max lifting capacity, 6,812 lb., 11,020 lb

Hydraulic Cathead
Max pulling force 33,000 lb
Effective travel 83"
System pressure 2,000 psi

Hydraulic System
Model Y3030
Travel 11.8"
System pressure 2,000 psi

Pneumatic system
The pneumatic system consists of air line, air resource line, air compressor line,
brake line of carrier, drawworks control line crown block saver line and
emergency brake line, mud pump line and relative parts etc.

Well-head
Drilling six-parameter instrument, 1 set
(Hook load, pump pressure, rotary table torque, rotary table speed, tong torque, pump stroke)
Elevator line DH250, 250 ton, 1 pair
Drill pipe elevator DD 2 7/8", DD 3 1/2", DD 5", each 1 pair
Hydraulic drill pipe tong ZQ100 (including hydraulic) 1 set
Hydraulic casing tong TQ35, 1 set
Air spider QQFP60-89/90, 1 set
Handle  tool, 1 set

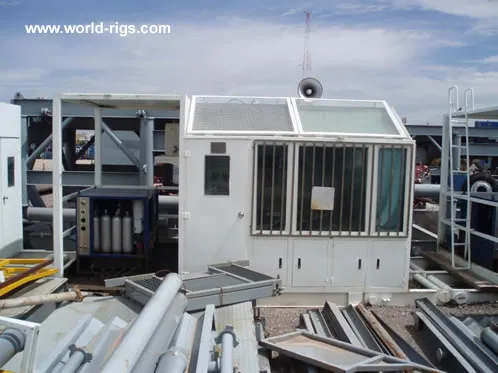

Lighting for main unit
Lighting components, lighting lamp, switch and pug on well-site are all ex-proof
product manufactured by professional plant. Seven lights on the mast, five lights
on the substructure and two lights on main unit are all ex-proof daylight lamp.
