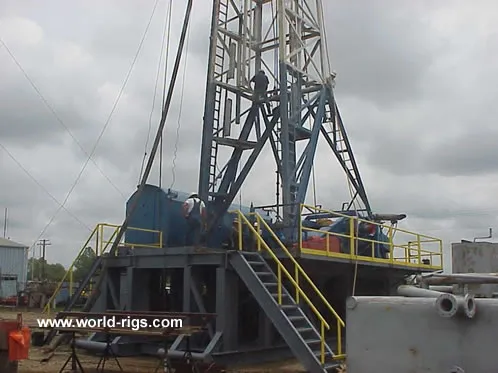

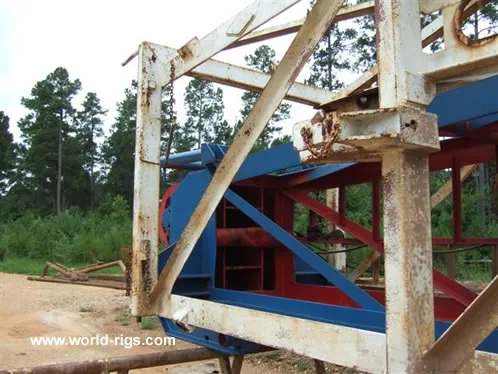

MAC Mechanical Drilling Rig for Sale
450 hp Drilling Rig for Sale in USA
Description

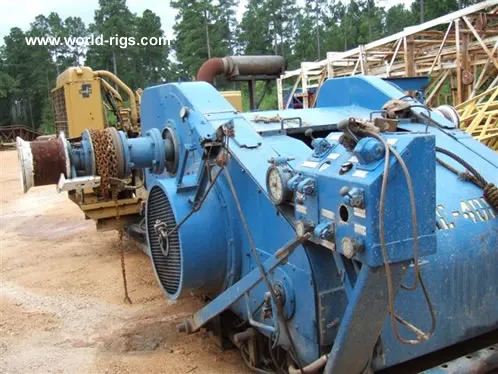

Drawworks :

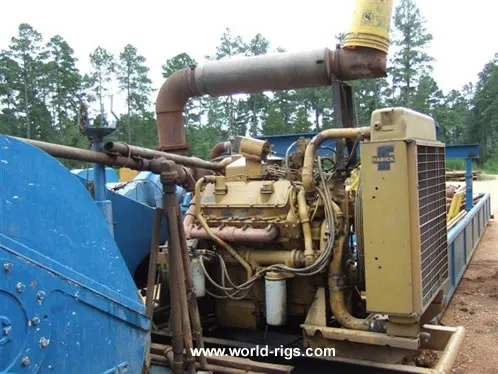

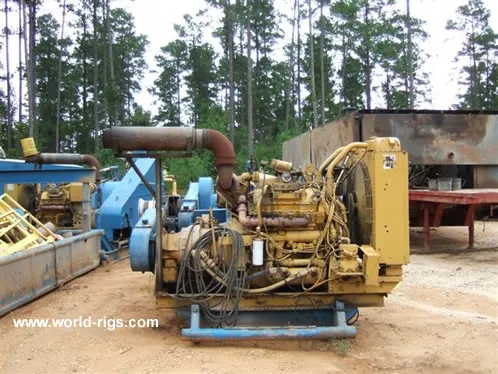

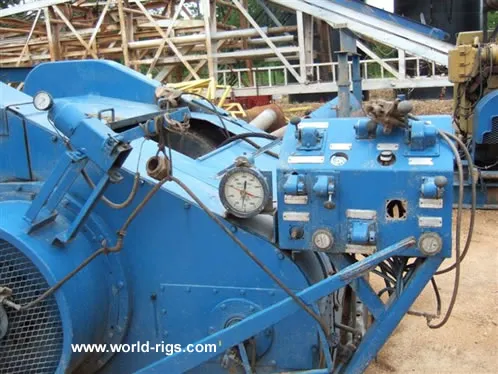

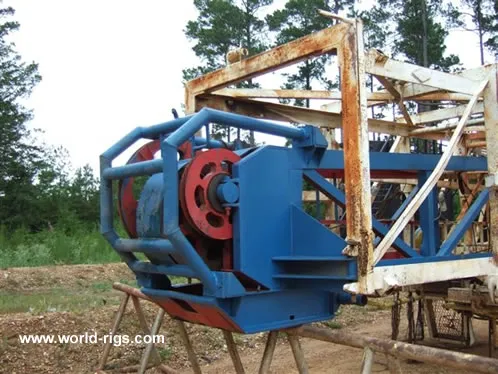

Mac 400 with hydromatic (water) brake, catheads, powered by a Caterpillar 3408 rated
at 450 HP with air clutch and torque converter

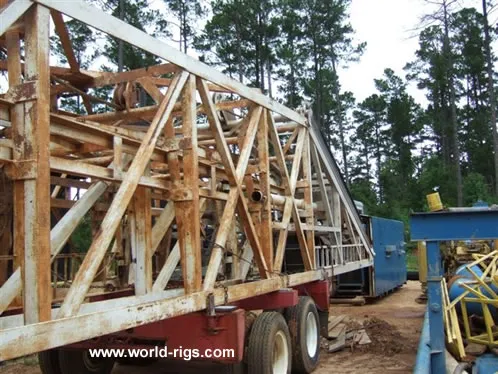

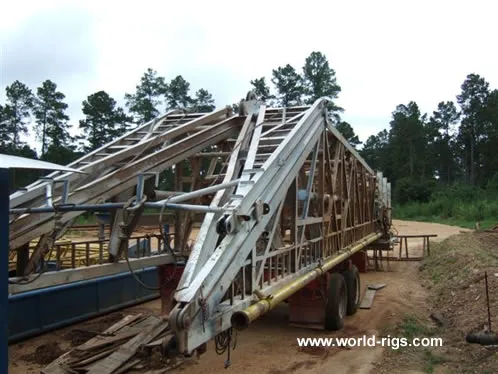

Mast :

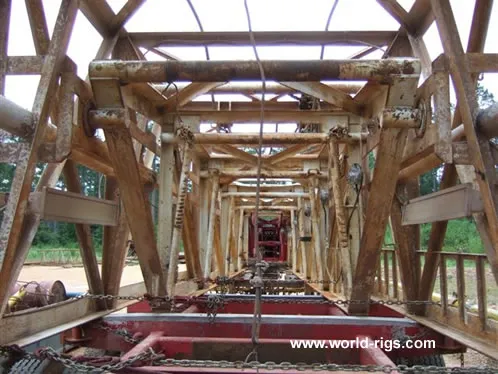

P-J Services, 98’ free standing derrick, 280,000#, angle iron steel beams, scopes
with king pin and two axle dolly. Racking capacity of 8500’ of 4 ½” drill pipe

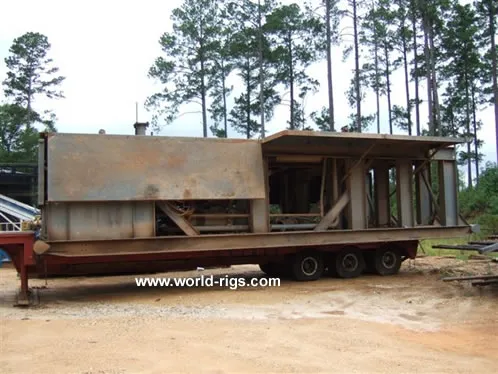

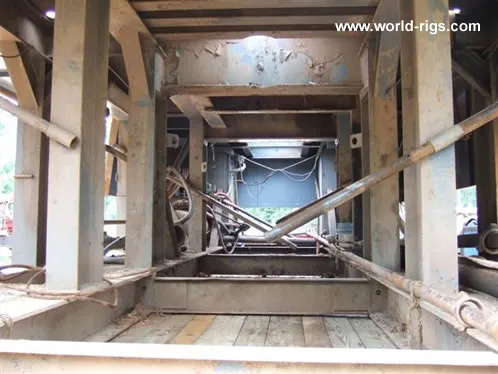

Substructure :

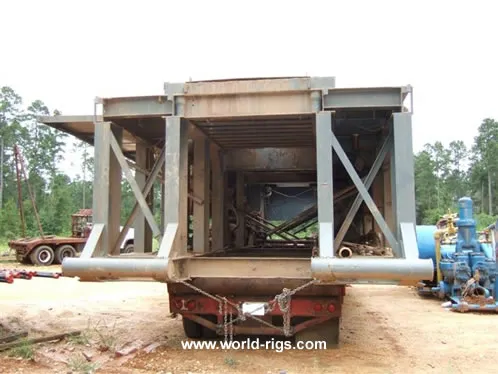

One piece, I beam box type. 8’H x 15’W x 34’L with 4’ fold down wings, enclosed parts house
and large volume tank with Quincy 350 air compressor driven by electric motor in substructure.
Rotary Table :
Brewster 17 ½”, rotary bushing-square, 4 ½” square Kelly
Block/Hook :

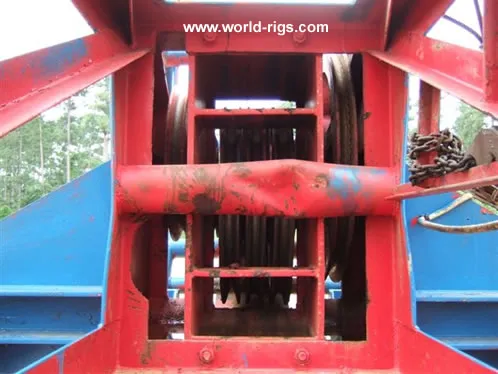

Three sheaves (6 lines) grooved for 1 1/8” line
Swivel :
TSM 150 ton with new wash pipe and packing
Generator :
125 KW powered by Detroit 6-71 in steel house with all switchgear and transformer.
Steel house includes parts cabinets, work area, and storage
Mud Pump :

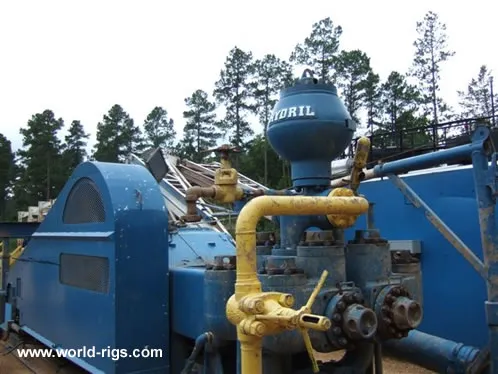

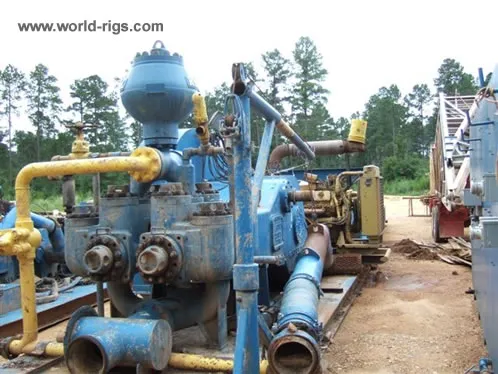

Gardner Denver FXN 7 ½” x 14’ duplex powered by a Cat 3408 (450 HP) with air clutch
Mud System :
Single cone desander, Mission Magnum mud mixing pump, mud stirring guns
(rig uses earthen pits)
BOP :
Regan 10” annular (new annular rubber)
Top Dog House :
Scopes down into 400 barrel water tank, heater lockers, knowledge box
Drill String :
200 joints 4 ½” x-hole, 16.60 ppf drill pipe, yellow band, 12 assorted subs,
lower Kelly valve, inside BOP
Ancillary Equipment :
Kelly hose (new), vibrator hoses (3), 2500’ of 1 1/8” drill line (new), mouse hole, mouse
hole driller, weight indicator, tong torque gage, bear automatic driller, one pen drill recorder,
Sure Shot deviation instrument, mud gages, (3) sets pipe racks, Type C rotary tongs, rig lights
(derrick, sub, mud pump, gen house), drill collar slips, (2) sets drill pipe slips, Quincy 325
air compressor with electric motor, slick line wire line unit mounted on single axle trailer. |
