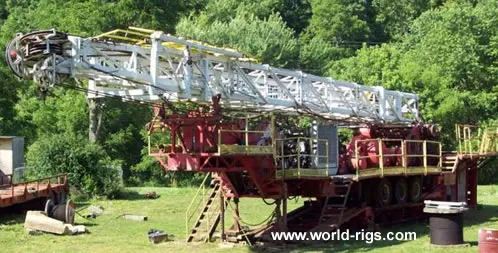

Wilson Mogul 42 Double Trailer Mounted Rig for Sale
550 hp Mechanical Drilling Rig
Trailer Mounted Rigs for Sale
Description :
Wilson Mogul 42 Double Trailer Mounted Rig
550 HP, Mechanical, +/- 6,000' Trailer Mounted Drilling Rig
A. Draw Works :
Single Drum Draw Works
Foster Model 27 AH break out Cat heads (serial # 1404)
Manual Braking System
1,500’ 1” drilling line, spooled, never used, still in protective coating
Driller’s console, with controls
B. Power :
Detroit Model 12V71 diesel engine
Engine rated for 550 peak Horse Power
Radiator and Electric starter
Allison Model TC955 torque converter

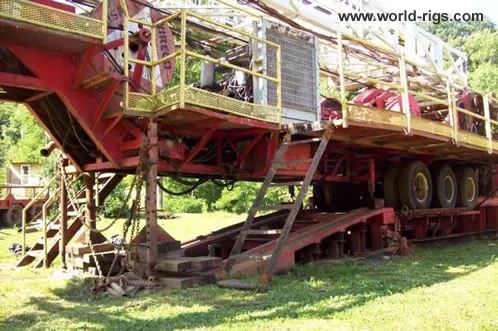

C. Substructure :
10’ Height
16’ Width (with walkways extended)
12’ Length
2 piece substructure
Box type structure, with rotary table beams
10’ W x 40’L back on ramp
Removable Stairways
Folding walkways
Safety railings
Lighting
Includes rat hole / mouse hole digger

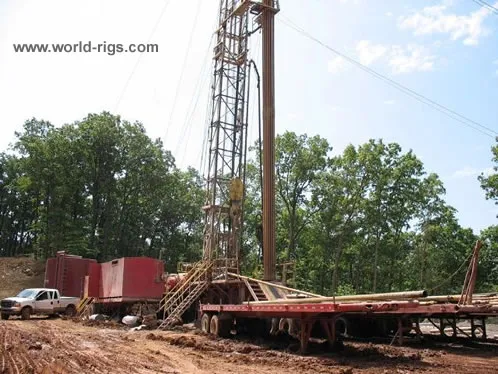

D. Mast :
Wilson 102’ Height hydraulic derrick (serial #991-102-300)
Hydraulically raised with multiple scooping raising arm
Crown Block and Safety Platform
Pipe racking board
Standpipe
3” (ID) x 50’ long Kelly hose
Tong counterweights
Vapor proof lighting
Martin – Decker weight indicator
E. Rig Mounted Equipment :
Hydraulic Break Out Cylinder
Winch
Hydraulic Storage Tanks
Fuel tanks
Air compressor – Bendix Westinghouse Model TUFLO 1000
Deadline anchor
Hydraulic leveling jacks
Folding walkways, with stairs and safety railings
Rig Mounted on Tri Axle Trailer
Travelling and Rotating Equipment:
- Chain Driven Rotary Table - Gardner Denver Model 175
- Split Master Bushing
- Swivel - Gardner Denver Model SW 125
- Kelly - Brand New 40’Length x 4 1/4” Square Kelly
- Drive Bushing
- Travelling Blocks - 3 sheave blocks, grooved for 1” line
- WEBB-WILSON Hydra Hook Elevator Bales
- Rig set up to add an extra travelling block to increase all capacities
- Air Head Oiler
F. Casing, Pipe and Equipment :
7,000’ +/- 3 ½ OD drill pipe
3 ½ ” IF connection
4 ¾ ” OD flush drill collars, 3 ½” IF connections, slip recessed
6 ¼ ” OD with 4 ½ “ X-hole connection drill collars
2 Standard 32’ pipe trailers
1 Extended 35’ center trailer
G. Well Control Equipment :
Williams 11” annular BOP
Washington Rotating head assembly, complete with 16 ¾” air bowl
Assortment of Flanges including
Companion flange 13 5/8 x 13 3/8
Companion flange 13 5/8 x 9 5/8
Companion flange 13 5/8 x 7 inch
H. Custom Rig Doghouse :
8’W x 24’L trailer mounted dog house
Easy Access Front Porch
Rear porch where generator is mounted
Custom Built House for all tools
Storage areas
Breezeway
3000 gal fuel cell
Geolograph
Work Bench
Drilling Supplies
Night work lights
All mounted on 40’ trailer
I. Generator :
Stateline 10 KV generator with all necessary Switching gear, gauges and controls, mounted on Rig Doghouse Porch
Miscellaneous Equipment and Parts:
- Tool Trailer
- Soap tank with MYERS Model C20-8CR injection pump and 1 ¼ “ lubricator
- Soap pump powered by Waukesha Engine
- Assortment of casing elevators and single side door elevators
- 2” air pump
- Assortment of change over subs
- Dead man stakes and cable for rig tie down and secure lines
- Webb Wilson Type B tongs with assortment of tong jaws
- 4 ½ “ bottleneck drill pipe elevators
- Drill collar slips
J. Air System (available at additional cost) :
2001 Ingersoll Rand Airpac:
- Model number XHP1170
- Twin air compressors included
- Trailer Mounted
- Cat powered C15 engines capable of 525 HP
- Twin air units rated for 350 PSI and 1170 Cubic Feet each
- Both air unit have approx 7,600 hrs
- All units plumbed together
- compressor, complete with all necessary collers, gauges, valving and controls |
