Spencer Harris 7000 Drilling Rig for Sale
700 hp Spencer Harris Drilling Rig
Trailer Mounted Rigs for Sale
Description

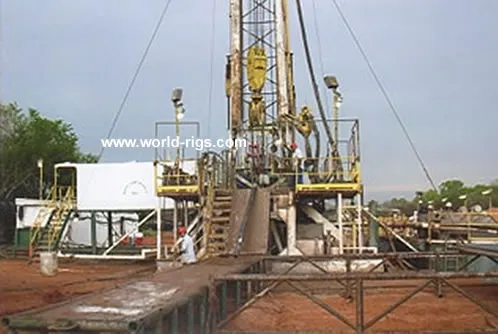

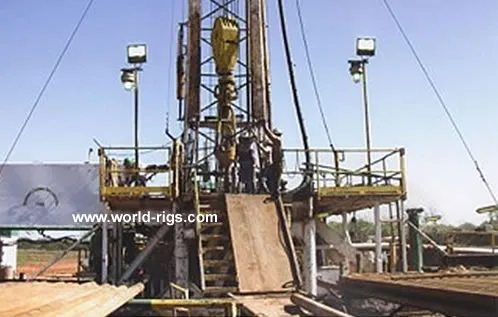

Spencer Harris 7000 Drilling Rig
700 HP, Recently Working, Trailer Mounted Rig, +/- 8,000’
Drawworks :
Ideco Hydrair H-35 single drum drawworks
Lebus grooved for 1" drill line
Parmac Triple 15" hydromatic brake
Torque-tite make-up and break-out catheads
Rotary drive attachment
Rotary drive clutch
Drawworks power :
Cat D3306t diesel engines, electric start : 2
Twin sisc F10017tci torque converters : 2
Two engine compound : 1
Air reservoir tank : 1
Derrick :
Spencer Harris derrick
96' H, 250,000 Lb. capacity
Hydraulically raised
Wire line telescoped
Crown block assembly
Racking board
Standpipe
Vapor proof lighting
Substructure :
Spencer Harris single piece substructure
9' height
Stairs
Handrails
Vapor proof lighting
Rotary beam clearance : 6' 4"
Oaw : 17'
Oal : 28'
Mounted and unitized on a master oilfield skid
Back-On ramp :
Spencer Harris back-on ramp
35" h
7' 7" w
31' 5" l
Rig trailer :
Spencer Harris triple axle trailer, S/N 28
Front hydraulic mounted leveling jacks : 2
Tires : 10.00 x R20
Budd wheels
Inverted 5th wheel
Rotary table :
Mud King Rt-175 rotary table : 17 1/2" x 44" centers
Split square drive master bushing
Kelly drive bushing :
Kelly roller drive bushing
Square drive for 4 1/4" Square Kelly
Block / hook :
Traveling block with unitized hook
Mckissick 4-30" sheave block
BJ 6150 unimatic hook : 150 ton capacity grooved for 1" wire line
Rotary swivel :
Oilwell 100-C rotary swivel : 100 ton capacity
6 5/8" Reg. L.H. connection
Elevator links :
2 1/4" x 96" Elevator links : 250 ton capacity
Mud pump # 1 :
Hh Ht-800 (F-800 Style) triplex pump
S/N Ht20060067 (Dom: 2006)
6 3/4" maximum liner size
8" maximum stroke
Forged steel fluids
Quick change caps
Lanzhou Kb-45 10 gallon 5,000 psi pulsation
Dampener
O'drill/MCM 3" 5,000 psi pressure relief valve
O'drill/MCM 4" 5,000 psi gate valve
Mission 5" x 6" x 11" centrifugal pump (Pinion driven)
Odrill/Mcm 1" x 1 1/2" liner wash pump (Pinion driven)
Pump drive sheave (Bullwheel)
Pump pedestal drive
Belt guard
Suction and discharge hoses
Power : Caterpillar D398b series diesel engine S/N 66b2463
Air start
Radiator
Air clutch
Clutch guard
Engine drive sheave
Instrument panel
Diesel day tank (Filled from main tank)
Air receiver tank
Vapor proof lighting
Mud pump # 2 :
National C-250 duplex pump
7 1/4" maximum liner size
15" maximum stroke
Mattco steel fluid end
Quick change caps
Air chamber
O'drill/CM 4" 5,000 psi gate valve
Liner wash pump (Pinion driven)
Pump Drive Sheave (Bullwheel)
Pump pedestal drive
Belt guard
Pedestal mounted crane JIB
Suction and discharge hoses
Beaver Strainer
Power : Caterpillar D3406b series diesel engine
Air clutch
Clutch guard air
Start instrument
Panel
Mounted and unitized on a oilfield master skid
Doghouse :
7' h x 8' w x 30" l top doghouse
Cantilever type
With lower junk bin
Knowledge box
Crew lockers
Propane heaters
Mounted on a oilfield master skid
Mud system :
Single tank mud system approx. 650 Bbl capacity
Compartment : 4
Dimensions :
6' H x 10' W x 63' Oal
Crimped walls
O'drill/MCM linear shale shakers : 2
O'drill/MCM single cone desander : 1
O'drill/MCM 8-cone desilter : 1
O'drill/MCM 5" x 6" x 11" centrifugal charge : 1
Pump powered by 50 H.P. X.P. electric motor
Mud trough
Bottom mud guns
Stairs
Ladders
Handrails
Vapor proof lighting
Clean-out gates
All above mounted and unitized on a 10" H x 10' W x 63' Oal master skid
Generator house :
10' w x 39' l generator house
Complete with the following :
Caterpillar D3306t diesel engine radiator : 1
Electric start
With Kato model 150S x 9E generator
150 kW
187 Kva
208/240/416/480 Volt
3 - Phase
60 Hz
Caterpillar EA150 starter panel
*Above mounted and unitized on CAT rails
Deutz 6 - cylinder turbocharged diesel engine radiator : 1
Electric start
With MECC ALTO SP model Eco 34-2SN/4 generator end
100 kW
125 Kva
277/480 Volt
3 - Phase
60 Hz
*Above mounted and unitized on a master skid
Master control panel
Distribution switch panels
Breaker boxes
Transformer
Metal parts bin storage
Catwalk : 42" h x 55" w x 42' l steel catwalk
Annular blowout preventer :
Annular blowout
Preventer Reagan 10" 3,000 psi W.P.
Flanged top and flanged bottom
Closing unit :
Closing unit
2 - Station
(Mounted on trailer)
Drill pipe :
Approx. 6,000' of 4" F.H. 14.00 Lbs./ft Range II
Grades E and G-105
Pipe tubs : Pipe Tubs : 3, Skid mounted
Drill collars :
(21) 6" - 6 1/8" O.D. X 30' l +- Drill collars
4" F.H. connections
Kelly :
4 1/4" x 40' l Square Kelly with scabbard
4 1/2" X.H. PIN
6 5/8" Reg. box connections
Instrumentation : Automatic driller
3 - Pen drilling recorder
Martin-Decker "Clipper" weight indicator
Handling tools :
Type B rotary tongs, Complete
3 1/2" - 10 3/4" LUG Jaws
Handling tools :
4" F.H. 18° drill pipe elevator
150 ton capacity
6" - 6 1/8" O.D. drill collar elevator
4 1/2" x 4" rotary drill pipe slips
5 1/2" - 7" rotary drill collar slips
Rotary hose : 3 1/2" I.D. x 45' l Rotary hose, 5,000 psi W.P.
Vibrator hose : 3 1/2" I.D. x 15' l Vibrator hoses, 5,000 psi W.P.
Pipe racks : 2 Sets, 42" h x 28' l triangular pipe racks
Drill line :
Wooden spool with 1" drill line : 1
*Mounted on trailer neck
Wireline unit :
Mathey electric/hydraulic wireline unit
092 Wireline
Starter box
Skid mounted
Mud Bucket :
Mud bucket dressed for 4" drill pipe |
