SK675 Carrier Mounted Drilling Rig
Service King 675 hp Drilling Rig
Description
SK675 Carrier Mounted Drilling Rig
675 HP, 10,000’ Capacity
Rig : Service King SK-675 manufactured in 2010

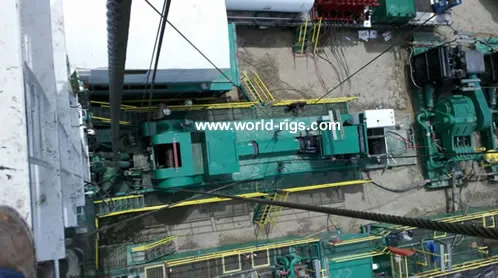

Drawworks : 665 HP SK-675 - 42X12 water cooled drums with Hercules
Quick release deadline anchor
Power : Detroit Diesel Series 60 - 665 HP 4500OFS Allison Transmission
Mast : 109’ telescoping – 315,000# Static Hook Load with auto racking board
Substructure : 8’ – 14’ cantilever with Base Beam, 350,000# Setback Capacity
Brake : Double Disc Assist 48X8
Rotary Table : 20 ½” Rotary Table
Swivel : 175 Ton
Blocks : 150 Ton 4 sheave 8 line with spring hook
Mud pumps : 2- 2010 Sentry SI-1000HP Triplex Pumps powered by
Detroit Diesel 12V2000, 1050 HP each

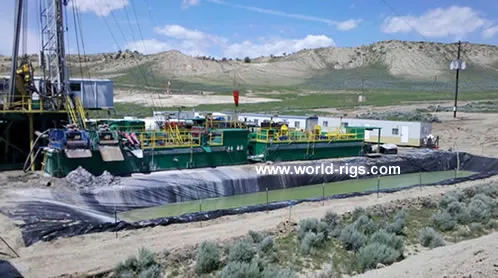

Steel mud pits : 2 Tank 550 barrel skid mounted mud system.
580 GPM MCM shale/Odrill dual tandem shakers. Wired to
meet API electrical standards
Mud mixing pump : 60 HP Electric Mixer 5 X 6 X 14
Kelly : 40’ 4 ¼ Hex
Light plant : Generac SD500KW powered by 600 HP Volvo
16.0 DTA with 455KW Cat SR-5 powered by CAT 3456
B.O.P. : 11” x 3000 psi Annular & 11” x 3000 psi Double/Shaffer
Accumulator : 2010 Burnsco single station, 8 bottle 3000 lbs
spool with remote closing controls
Kelly Spinner : Hydraulic Forward & Reverse
Automatic Driller : Pason - Satellite
Recorder : Pason – Martin Decker 3 pin
Water tank : 500 Barrels
Water pump : 3” Honda
Fuel tank : 3500 gallons
Cathead : Hydraulic
Elevators : 4” BN, 4 ½ “ BN, 5 ½ , 7” , 9 5/8” Casing
Slips : 4”, 4 ½” DP, 5 ½” – 7” DC, Casing up to 9 5/8”
Special equipment :
Doghouse
Rig Manager Wellsite Trailer
PASON
20’ Steel skidded supply/storage building & supplies
All subs, hand tools, tongs & equipment for rig |
