2006 Superior 1000M Drilling Rig For Sale
Superior Drilling Rigs for Sale
1000hp Drilling Rigs for Sale
Drawworks:
SUPERIOR 1000M New (2006) Single Drum Drawworks, 1,000 Hp
Lebus grooved for 1-1/4” Drilling Line, Air operated Makeup
& Breakout Catheads, Over-Running Clutch, Air
Driller’s Console, Crown-O-Matic, Right Angle drive for rotary table.
Compound:
2-Engine, In-Line Compound, w/ Right Angle Drive RT
Box For rotary & Draw works drive.
Brake:
PARMAC Dual V-80 Hydromatic Brake coupled together
Drawwworks Power:
No. 1 – CATERPILLAR C-18 Diesel Engine S/N# WJH01728,
600 Hp Rated, w/24 Volt Electric Start, Radiator, Gauges,
OILWORKS C-195-100 Torque Converter S/N3444
Air clutch
Hours# 21,597
No. 2 – CATERPILLAR C-18 Diesel Engine S/N# WJH01706,
600 Hp Rated, w/24 Volt Electric Start, Radiator, Gauges,
OILWORKS C-195-100 Torque Converter S/N1616
Air clutch
Hours# 21,664
Mast:
DRILLMASTER New 2008 SN#07632 20’1 1”W x 136’H Cantilever Mast,
With a Gross Nominal Capacity of 930,000 Lbs. and a
650,000 Lb. Static Hook Load, Max wind 91 Knots,
with ten (10) lines. Crown Block w/ (5)42” Sheave Cluster &
1-56”Fast line Sheave grooved for 1-1/4” diameter drilling line.
Each Crown Sheave wire rope groove is flame hardened.
Each Crown Sheave is fitted with Timken roller bearings and grease seals.
Derrick complete with Crown Safety Platform, 20 finger Racking Board W/ electric mule,
Bridal Lines, Tong Counter Weights, Survey Line Sheaves,
Tugger Sheaves, Ladder, Derrick Climber, Geronimo line,
4” Standpipe & Manifold and
Derrick Stand.
Last Certification 8/23/2012
Substructure:
DRILLMASTER New (2009) 29’10”W x 20’H x 48’8”L
(4) Box-On-Box Substructure w/ Rotary Beams, V-Door Ramp,
Stairs, (2) Air Receiver Tanks, NATIONAL Deadline Anchor,
Safety Rails, inside Catwalk Trolley, 7’W x 14’L built in Tool
Room (ODS) (3) Stairs, Outside wall Winterized, Jacking door,
12’ X 12’ Setback spreader, internal stairway, Vapor proof lighting,
Skidded with oilfield tail rolls
Pump: (Primary)
HT F-1000 Triplex Mud Pump New 2006,
S/N HT 20060088, 1,000Hp.
w/ LANZOU Pulsation Dampener S/N HT20060070,
MF 5,000 Psi. Pressure Gauge
FIVE STAR 6”x8”x14” Charging Pump S/N5268 p/b TECO 75 Hp. Electric Motor,
Chinese 3”Shear Relief Value, Master Skidded w/ (2) Engines belt compound
Pump Power
CATERPILLAR C-18 Diesel Engine S/N WJHO1283,
575 HP w/24 Volt Electric Start, Radiator, Gauges,
V-Belt Drive EATON 18CB500 Air Flex Clutch,
Mounted Pump Master Skid.
Hours # 17,376
CATERPILLAR C-18 Diesel Engine S/N WJH01322,
575 HP w/ 24 Volt Electric Start, Radiator, Gauges,
V-Belt Drive EATON18CB500 Air Flex Clutch,
Mounted Pump Master Skid
Hours#16,277
Pump (Secondary):
HT F-1 000 Triplex Mud Pump New 2006,
S/N HT 20060070, 1,000 Hp.
w/ LANZHOU Pulsation Dampener S/N HT20060069,
MF 5,000 Psi. Pressure Gauge
FIVE STAR 6” x 8” x14” Charging Pump S/N5268 p/b WORLDWIDE 75 Hp. Electric motor,
3” Shear Relief Valve, Master Skidded w/ (2) Engine belt compound
Pump Power:
CATERPILLAR C-18 Diesel Engine S/N WJH-00457,
575 HP w/ 24 volt Electric Start, Radiator, Gauges,
V-Belt Drive, EATON 18CB500 Air Flex Clutch,
Mounted pump Master Skid.
Hours#13,788
CATERPILLAR C1-8 Diesel Engine S/N WJH-00373,
575 HP w/ 24 Volt Electric Start, Radiator, Gauges,
V-Belt Drive, EATON 18CB500 Air Flex Clutch,
Mounted Pump Master Skid.
Hours#16,643
Rotating Equipment:
ROTARY TABLE
Chinese ZP 27-1/2”, New 2006, complies with API split master bushings,
W/ drive shaft coupling.
Swivel:
Ideco 300
Kelly:
5-1/4” x 42’ Hex Kelly W/ HDS Kelly Drive Bushing
Kelly Spinner:
OWI 1500 Kelly Spinner S/N 00475B w/ (2) Air Motors, New
Kelly Valves:
Upper Kelly Valve.
Lower Kelly Valve
Traveling Equipment:
Sentry Rig Equipment Company
260 Ton Capacity New 2006
4G260 Traveling Block w/ (5) 36” Sheaves, 1-1/4” Line,
Unitized “Hydra-Hook” 260 Ton Capacity
Blowout Preventer & Valves:
1 EACH -13-5/8" X 5000# Jiangsu Xianz hong Petroleum
Double Gate BOP, Top & Bottom Stud configuration
Including - 1set of 5" Pipe Rams Blocks & 1set of Blind Rams,
With 2 - 4" outlets on each side of Body of BOP
1 EACH - 13-5/8" Jiangsu Xianz hong Petroleum ANNULAR BOP
Includes rubber element
1 EACH - 13 5/8" X 5000# Type D DRILLING SPOOL W/ - 2" SIDE OUTLET & 3" SIDE OUTLET
[MATCHED TO CHOKE MANIFOLD
1 EACH - CHOKE MANIFOLD - 3" X 5000# COMPLETE
INC - STEEL FLEX LINE W/ FLANGES TO CONNECT
TO BOPS OR DRILLING SPOOLS
Closing Unit:
2008 Jiangsu Xianz hong Petroleum Model FXQ640-6
Closing Unit Accumulator, 6 Station,
Rig Floor Controls and monitor panel,
Complete W/ 15 Bottles, 30 HP Cat 3517 Charge Pump, 21 Air Pumps, & set up for Nitrogen Bottle Backup
Suitcase Closing Unit Skid 7’-1 0” x 35’ with junk basket
Choke Manifold & Valves:
Jiangsu Xianz hong Petroleum Choke Manifold w/ (1) 5-Way Cross, (3) 4-1/16”x 5M
Gate Valves, (4) 2-9/16” x 5M Gate Valves, (1) Manual
Adjustable Chokes, Hydraulic Adjustable Chokes, Mounted Oil Field Skid.
W/ 2 Kill Valves- & 2-Choke Valves mounted at drilling spool
Rig Houses:
Dog House, DRILLMASTER 9’ 1 1”W x 39’ 1 1”L
Doghouse / Change house Combination w/ 17’5”L
Driller’s House w/ Knowledge Box (5) Lockers, Bench Storage, Heater, Lights.
5’L Breezeway, 1 7’5”L Change House, w/Bench Storage, (16-Lockers,
Cabinets, Heater & Lights. Oil Field Skidded.
Generator/Utility Houses:
DRILLMASTER 1 1’10”W x 37’9”L x 11’ 6” T
Utility House w/Lights, Oil Field Skidded to include the following items.
No #1 380 Kw. AC CATERPILLAR Generator Package Powered by Caterpillar C-15 Diesel Engine S/N JRE01986 w/ 24 Volt Electric Start, Radiator, HD Air cleaner Gauges. Marathon 572RSL4025 Generator End SN# 550989-0506, complete with Oil Field skid.
Hours# 17,278
No #2 380 Kw. AC CATERPILLAR Generator Package Powered by Caterpillar C-15 Diesel Engine S/N JRE01985 w/ 24 Volt Electric Start, Radiator, HD Air cleaner Gauges. Marathon 572RSL4025 Generator End SN# 550989-0507, complete with Oil Field skid.
Hours# 16,933
NO. 1 GARDNER-DENVER EBE99N New 2006
Electro Saver II Rotary Screw Air Compressor S/N# S237421,
P/b TOSHIBA 30 Hp. Electric Motor, Mounted 240 Gallon Horizontal Tank.
Hours# 15,128
NO. 2 GARDNER-DENVER EBE99N New 2006
Electro Saver II Rotary Screw Air Compressor S/N# S237419,
P/b TOSHIBA 30 Hp. Electric Motor, Mounted 240 Gallon Horizontal Tank.
Hours# 14,400
SIEMENS Interlock Panel, 600 Amp 480 Volt Main Lockout Disconnects breakers.
ALLEN BRADLEY Electrical Load center with magnetic starter & breakers,
SQUARE D 225 amp 240 volt panel with breakers
SQUARE D 75KVA Transformer 480 volt to 240 volt
DRILLMASTER 7’9”W x 13”H x 43’1”L Electrical
Suitcase.
DRILLMASTER 2’5”W x 1 3”H x 36’3”L Electrical
Suitcases.

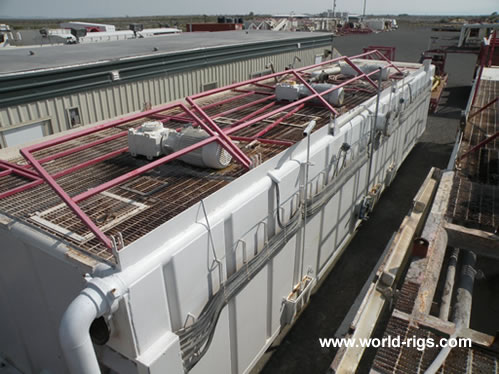

Mud System:
DRILLMASTER 9’6”W x 7’H x 34’5”L, 394 Bbl. Suction Tank
10’L Covered Porch, (3) Compartments,
(3) MAX 2000 Mud Agitators p/b TECO 25 Hp. Electric Motors,
Sloped Bottom, Top Mounted Walkways, Safety Rails, Lights, Oil Field Skidded.
FIVE STAR 6”x8”x14” Centrifugal Mixing Pump S/N 5284, p/b BALDOR 75 Hp. Electric Motor.
FIVE STAR 6”x8”x14” Centrifugal Mixing Pump S/N 5284, p/b BALDOR 75 Hp. Electric Motor.
With internal jetting system, 3 dump gates,
DRILLMASTER 9’6”W x 7’H x 34’7”L, 394 Bbl. Shaker Tank
10’L Covered Porch, (3) Compartments
MAX 2000 Mud Agitator Agitators p/b TECO 25 Hp. Electric Motors,
Sloped Bottom, Top Mounted Walkways, Safety Rails, Lights, Skidded.
With internal jetting system, 3 dump gates,
FIVE STAR 6”x8”x14” Centrifugal Mixing Pump S/N 5269,
p/b BALDOR 75 Hp. Electric Motor.
FIVE STAR 6”x8”x14” Centrifugal Mixing Pump S/N 5283,
p/b BALDOR 75 Hp. Electric Motor.
SHALE SHAKER, Fluid Systems Inc., Single Screen,
Linear Motion Shale Shaker S/N2450,
SHALE SHAKER, Fluid Systems Inc., Single Screen,
Linear Motion Shale Shaker S/N3089,
NOI DSN-ZH-10CTX Desander S/N 8714-5732,w/ (2) 10” Cones.
NOI DSL-10GG-4CTX Desilter S/N 8714-5731,w/ (10)4” Cones.
DRILCO “Deep Pit” Degasser p/b TECO 10 Hp. Electric Motor
Bubble Buster: Geothermal Type Bubble Buster
Mud House:
DRILLMASTER 9’ 1 1”W x 26’L Mud House w/Mud Hopper, Test Sink, Ventilation Fan, Electric Heater,
Lights, Double Side Door, (2) End Doors, Skidded. Includes 7’H Tri-Stand on one end the other end sets on suction tank.
Fuel Tank:
DRILLMASTER 7’1 1”Wx8’Hx30’L, 13,860 Gallon Fuel Tank
w/ (2) AMT 1/2 Hp. Fuel Transfer Pumps p/b BALDOR 1/2 Hp. Electric Motors,
with Three (3)Compartment, Combo Lubester Oilfield Skidded.
Water Tank:
DRILLMASTER 10’10”W x 8’1”H x 35’L, 529 Bbl. Water Tank
w/ 10’L Covered Extension, Pump Room, OilField Skidded
FIVE STAR 3”x4”x1 1” Centrifugal Water Pump
S/N 5420, p/b TECO 20 Hp. Electric Motor.
FIVE STAR 3”x4”x1 1” Centrifugal Water Pump
S/N5267, p/b TECO 20 Hp. Electric Motor.
Instrumentation:
Weight Indicator
Mud Gauges.
Ancillary Equipment:
DRILLMASTER 5’W x 2’4”H x 60’L, 2-Section Catwalk w/ Steel Deck and stands for string blocks.
Pipe Racks 5 Sets 29” x 30’ 1 set 29” x 12’ 1 set 41” x 30’
FIVE STAR “Retriever” Electric Measuring Device S/N 862, w/ 15,000 Ft. of. 092 Wire line
2 sets drill pipe elevators 5”
2 sets of drill pipe slips 5”
2 sets of drill collar slips 7” & 9”
2 sets tongs with all head for pipe & casing
2 sets of safety clamps
Mud box with 5” rubbers
108” X 4” elevator bails
Crossover, bottom hole, lifting Subs
Air Hoist Air Wrench, Model HUL40, S/N-REM10370, 9000 lb. Pull Rating
Air Hoist Air Wrench, Model KSUL, S/N-REM13962, 10,500 lb. Pull Rating
4,000 Ft. of 1-1/4” Drill Line, Mounted Spooler Stand
3-1/2” X 5,000 Psi. Rotary Hose
Vibrator Hose 2 Each 3 ½” x 18’
Rat hole
Mouse hole
8 rig matting boards
Small hand tools & wrenches
Fluorescent & Mercury-Vapor Rig Lights & Wiring Explosion proof
Atco Office/ living shack all electric w/ oil field skid
|
