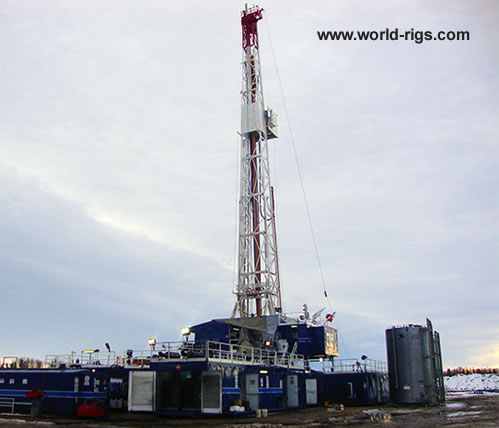

4000m Cantilever Triple Drilling Rig For Sale
Cantilever Triple Drilling Rigs for Sale
850hp Drilling Rigs for Sale
Description:
Drawworks : Superior 700
Engine : Detroit Series 2000 850 HP
Mast : Dreco 510
Height : 133'
Max. Hook Load : 157,460 daN 10 Lines
Substructure : Dreco One Piece w/ 2' pony subs
Max Setback : 115,000 daN
Rotary / KB beam to ground : 4.87 m
Clear Working Height : 4.20 m
Pumps : (2)F-1000
Engine : Cat C-27, Cat 3412 E
Mud System : Talsma twin tank, 110 m3 usable fluid
Tank :
Shakers : DFTS 275 XG Dual Deck Linear
Pumps : 2 Mission Magnum 6x5x11
Trip Tank : 3 m3
Pill Tank : 4 m3
Suction Tank : 25 m3
Settling Tank 1 : 25 m3
Settling Tank 2 : 30 m3
Shaker Tank : 30 m3
Agitators : 3- SOS Euro Drive
Gen Sets : (2) Stewart & Stevenson 375 KW
Engine : Detroit 60 Series 635HP
Panel : MCC
Well Control : Wagner Five Station 90 Gallon
Annular : 11" 3M Shaffer
Pipe Rams : 11" 3M Shafco
Manifold : 3 1/8" 35,000KPA
HCR : Cammeron HCR
BOP :
Tubulars
Collars : 18- 165mm 4.5" XH
Drill Pipe : 340- 101.6mm 4" FH X-95
HWDP : 60-101.6mm 4" FH
Overhead
Top Drive : Tesco 250 Ton, HMI, 475 HP
Hook / Block : Gardner Denver 200 Ton
Drilling Line : 28.6 mm
Miscellaneous
Water Tank : New self raising w/ slide out. 55 m3
Fuel Tank : TC-44 fuel tank, 24,000l storage
Boiler : 80 HP Lister
Features :
Hydraulic Skate Catwalk, Tow bar for skidding the rig, Rig Smart
Crown Saver, sub leveling jacks, BOP Lifting System.
Rig Loads
Rig : 26
Boiler : 1
Loader TP shack and misc. : 3
Racking capability : 4000 + M |
