Cabot 550 Portable Drilling Unit for sale
Portable Drilling Unit for Sale
600HP Portable Drilling Unit for sale
Portable Drilling Unit - Cabot 550 - For Sale
Description Drawworks
Rebuilt Cabot 550 drawworks with new Mckinney PD 150 water brake
and new brake pads. (2) new Kinecor hydraulic catheads. (2) new braden
PD12 hydraulic winches. Powered by new John Deere 600hp diesel motor
6135H485, Allison transmission CLBT5860DB.
Mast
Franks Cabot 98' 4-leg telescoping double mast, 250,000#SHL, hydraulically
raised and scoped with 5 sheave crown block and 2500' of new 1/1/8" drill line.
New sala block mounted on derrick.
Trailer
All above mounted on a 3 axle trailer

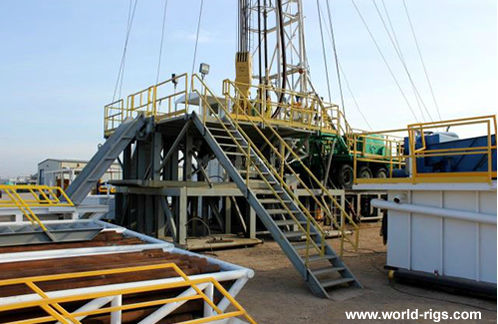

Substructure
3 piece sub with mud boat and ramp. RKB = 12.5'
Air Compressor
New Quincy D350-10 simplex reciprocating air compressor with 10hp
460/3/60 TEFC magnetic starter NEMA 4 enclosure and 200 gal air tank.
Mounted on mud boat.
Rotary Table
Rebuilt Oilwell SA 17 1/23"
Blocks
New Mckinney Artic T160 block hook
Kelly
4 1/4" x 38' long square drive kelly with drive bushings and kelly schuck.
Kelly Drive Bushings
17 1/2" split master bushings
Mud Pumps
#1 Ideco MM700 duplex pump, belt driven by a Cat D379 diesel engine, #2
Ideco MM700 duplex pump belt driven by a Cat D379 diesel engine.
Mud System
(1) 275bbl single tank system with a new 4 panel brandt king cobra shale shaker,
(2) 7.5hp agitators, (1) desander with 2-12" cones, (1) Caustic mixing barrell,
(1) eye wash station, (3) 400 watt lights, (1) mud hopper, (2) 5 x 6 centrifugle
pumps with 2-50hp electric motors.

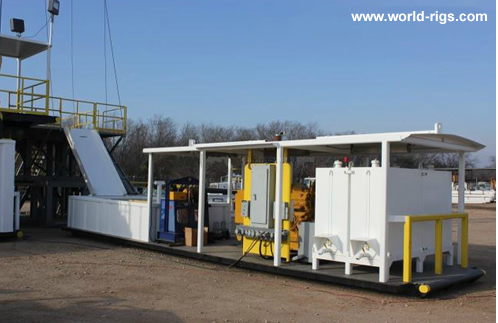

Generator Skid w/Lubester, Junk Box & Wireline
Generator, junk box with vdoor, wireline unit and lubester all on one skid. Skid is
40'3" long x 14'11" wide. Wireline unit is a new five star 15,000, Generator is a
Cat 320kw powered by a Cat 3408 PC motor with Eaton 45 kva transformer.

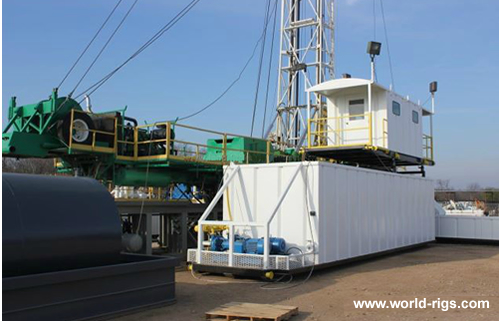

Water Tank & Top Doghouse
New 450bbl water tank with top doghouse hinged to support beams to lower into
water tank. New water tank is 35' long x 8'5" wide and has 2-3x2 centrifical
25hp pumps, new doghouse is 7' x 14' plus a porch on each end.
Fuel Tank : New 2000 gallon tank with electric fuel pump
Drill Pipe : 192 joints (6048') of 4 1/2" XH yellow band drill pipe
Drill Collars : 12 drill collars 6" - 6 1/4" with 4 1/2" XH connections
Subs : 6 lift nipples 4 1/2" XH pins

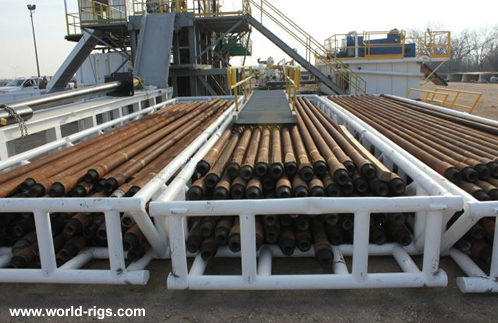

Pipe Baskets : 3 pipe baskets on skids
Catwalk : (1) 41" wide x 52' long and 46" high catwalk with pipe groove
Misc
1 new 55' 5000psi 4" kelly hose
2 new 15'4" x 5000psi vibrator hoses
1 new 12'4" x 5000psi vibrator hose
New 2" hoses with 2" high pressure manifold
1-6 mud jet
WorldRigs has Cabot 550 Portable Drilling Unit for sale
