| Specifications : |
National 80B Land Drilling Rig for Sale
Used Mechanical Drilling Rig for Sale
1000hp Box on Box Drilling Rig for Sale
SHL, Mechanical Drilling Rig for sale
Land Drilling Rig - National 80B - For Sale
1000hp National 80B Drilling Rig for sale
Drawworks
National 80-B, 1000 HP mechanical, driven by National
Compound, 540,000#, single line pull w/10 lines, Parmac
481 hydromatic auxiliary brake.

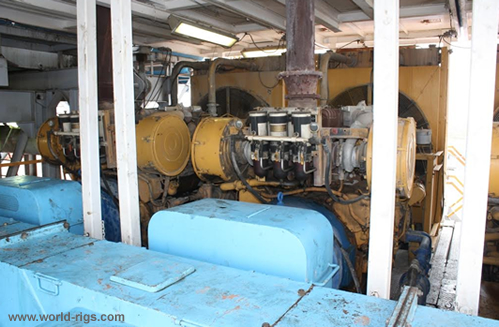

Prime Power
(3) Cat D3508 with National C-300-80 torque converters
AC & Aux Power
Cat 3406 with 325 KW AC and cat C-15 455 KW AC generator
sets. 1-1/4” wire rope 6x19 IWRC. Cold Start Air System, primary
rig air supply, floor hoisting systems.

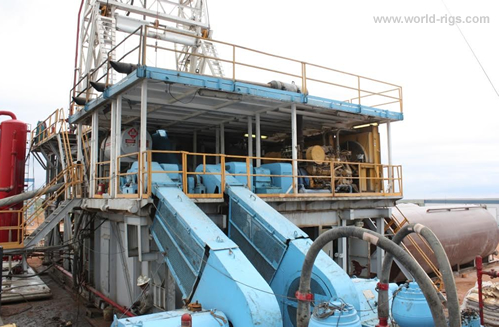

Mast/Substructure
DSI 142’ 760,000# hook load with 21’ box on box with 12 lines strung
with 450,000# set back, Crown block (6) 48” sheaves 1 ¼” grooved,
Fast line (1) 55” 1 ¼” grooved.
Traveling Equipment
National model 545-G-350 hook/block combo, National P-400 swivel
(400 ton), National C-275 rotary table

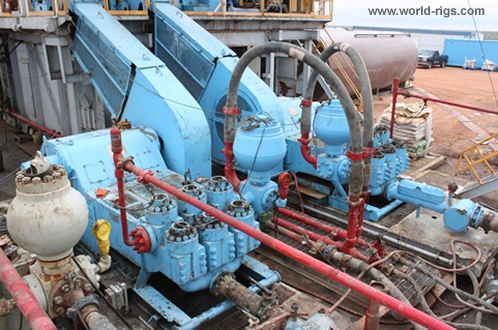

Mud Pumps
(2) National 9-P-100 triplex, 5,000psi, tail driven off National Compound
Mud System
(3) tank system (1,100bbl capacity), NOV Brandt DLMS-285P Liner
Motion Shaker, (4) Brandt Max 2000 Mud Agitators, NOV Brandt desander
(2) 12” Cones with 8x6x14 centrifugal driven by 60HP electric motor,
NOV Brandt (6) 6” cone desilter driven by 8x6x14 centrifugal with 50HP
electric motor, and 48 x 20 gas buster.

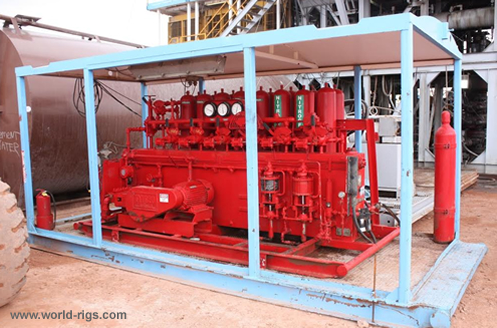

BOP Equipment
13 5/8”, 5.000# Annular, 13 5/8”, 5.000# Double Ram,
Koomey Type 80-3,000# Accumulator, 4 1/16”, 5,000# x 2 1/16”, 5,000# choke manifold.
Fuel Tank : 18,000 gal
Water Tank : 500 bbl
Auxiliary Equipment
Deadline Anchor, Weight indicator, Pump SPM & PSI Manual Tongs,
elevators, slips and clamps
|
