Continental Emsco D3 Type II Drilling Rig for sale
1000hp Continental Emsco D3 Type II Drilling Rig
Mechanical with Top Drive Drilling Rig for Sale
Land Drilling Rig - Continental Emsco D3 Type II - for sale
Used 1000hp Mechanical with Top Drive Rig for sale
Drawworks
Continental Emsco D3 Type II 1000 HP, Low low rated 525,000#
single line pull, w/10 lines, with twin GE 752 DC motor input.
Wichita Air actuated water cooled 236 disc brake, 1 ¼” wirerope
6x19 IWRC.
Prime Power

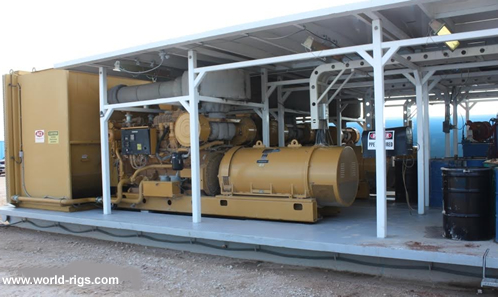

Omron SCR System, (3) generator bays, (3) SCR bays, (3) Caterpillar
3512B with Kato 1365 KW AC gen sets.
Auxillary
Cold start air system, primary rig air supply, floor hoisting systems.
Mast/Substructure

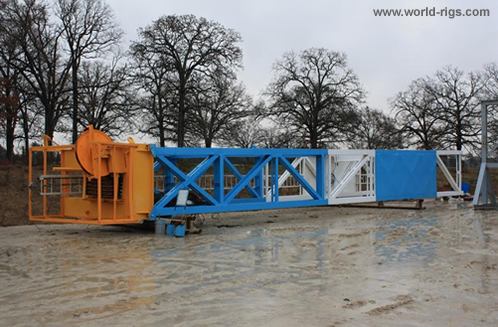

Dreco 142’, 550,000# hook load, with 12 lines strung, 20’ Box on Box sub, 330,000# setback,
Crown block (6) 42” sheaves 1 ¼” groove, Fastline (1) 50” 1 ¼” grooved.
Top Drive/Traveling Block/Pipe Handling
CanRig Model 6027 VF AC 275 Ton Top Drive, Oilwell 250 Ton Block,
SJ Petro 27 ½” Rotary/drwks driven.
Mud Pumps

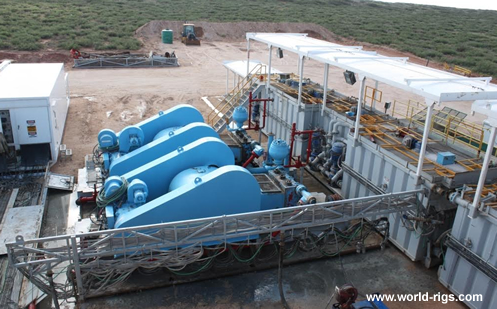

(2) Continental Emsco FB-1300, 5,000psi, each driven by (2) GE 752 DC motors.
Mud System
(2) tank system, 1200 bbl capacity, (2) National 285P linear motion shale shakers,
NOV Brandt desander 2 12” cones with 5x6 centrifugal driven by 100 HP electric motor,
NOV Brandt desilter 12 4” cones with 6x8 centrifugal driven by 100 HP electric motor,
NOV Brandt D-1000-C Degasser, 48 x 20 gas buster.
BOP Equipment

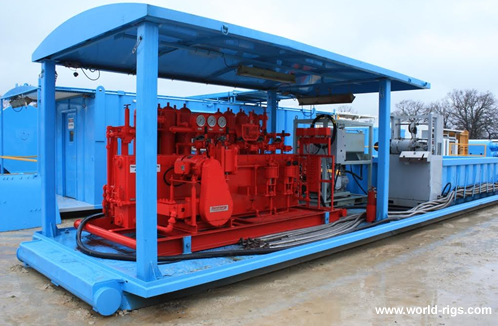

13 5/8” 5000# annular, 13 5/8” 5000# double ram, Church Energy 3000 PSI accumulator,
120 gal, 5 station with remote, 4 1/16” 5000# x 2 1/16” 5000# choke manifold.
Fuel Tank : 18000 gal
Water Tank : 500 bbl
Auxiliary
Deadline Anchor, Weight indicator, Pump SPM and PSI, Top Drive VF
Control house, SCR system controls, manual Tongs, elevators, slips and
clamps |
