| Specifications : |
Oilwell 760E 1000hp Drilling Rig for Sale
Box on Box 1000hp Drilling Rig for Sale
Used Oilwell 760E 1000hp Drilling Rig
SCR with Top Drive Drilling Rig for Sale
Land Drilling Rig - Oilwell 760E - For Sale
Used 1000hp Drilling Rig
Drawworks
Oilwell 760-E, 1000 HP, Low Low rated 600,000#,
single line pull, w/10 lines, twin GE 752 DC motor input, Wichita
Air actuated/water cooled 236 disc brake, 1 ¼” wire rope
6x19 IWRC.
Prime Power
Omron/SCR system, (3) Generator Bays, (3) SCR Bays,
(3) Caterpillar 3512B with Kato 1365 KW AC Gen Sets.
Auxilary
Cold start air system, primary rig air supply, floor hoisting systems

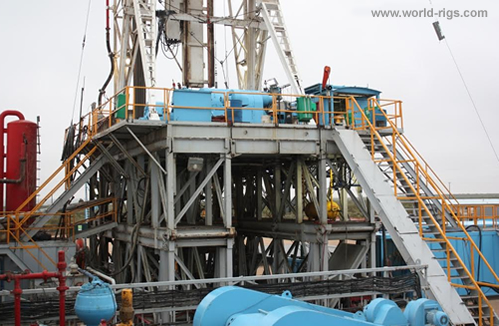

Mast/Substructure
Branham 142’, 600,000# hook load with 20’ box on box, 500,000#
setback, Crown block (6) 42” sheaves 1 ¼” groove, Fastline (1)
55” 1 ¼” grooved.

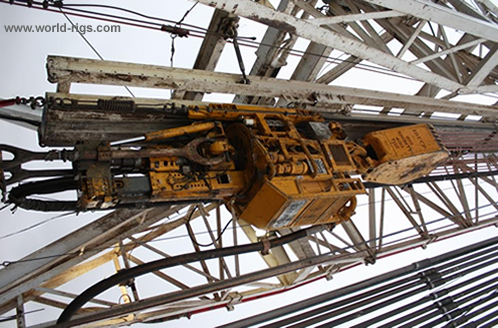

Top Drive – Traveling Block- Pipe Handling
CanRig Model 6027 VF AC 250 Ton, National 500 Ton Block,
27 ½” rotary, drawworks driven.

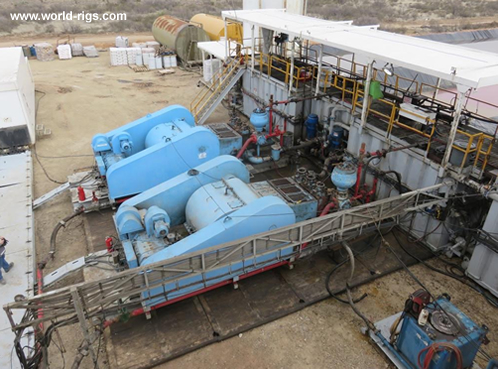

Mud Pumps
(2) Ideco T-1300, 1300 HP Triplex, each driven by twin
GE-752 DC motors
Mud System
(2) Tank system (1200 bbl Capacity), Twin National 285P linear
motion shale shakers, (7) NOV mud agitators, NOV Brandt
desander (3) 10” cones with 6x8x11 centrifugal driven by
100HP electric motor, NOV deSilter (20) 4” cones with
6x8x14 centrifugal driven by 100 HP electric motor,
NOV Brandt D-1000-C Degasser and 48 x 20 gas buster.
BOP Equipment
11” 5,000# Annular, 11” 10,000# Double Ram, Church Energy
3,000 psi accumulator, 180 gal, 6 station with remote, 4 1/16”
10,000# WP x 2 1/16 10,000# WP Choke Manifold H25 Trim.
Fuel Tank : 18,000 gal
Water Tank : 500 bbl
Auxilary Equipment
Deadline Anchor, Weight indicator, Pump SPM and PSI, Top
Drive control house, SCR system controls, manual tongs,
elevators, slips and clamps. |
