| Oilwell E2000 Drilling Rig for sale

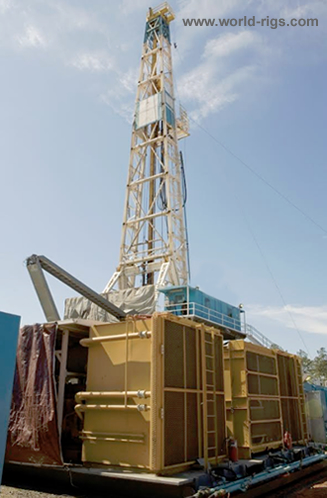

Box on Box 2000hp Oilwell E2000 Land Rig for Sale

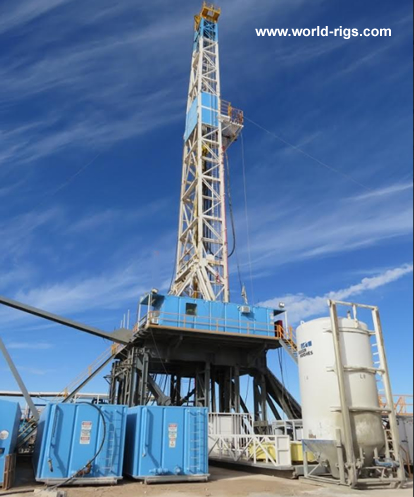

Used 2000hp Land Drilling Rig for Sale
Oilwell E2000 - 2000hp - Land Rig for Sale
SCR with Top Drive Rig for sale
Drawworks
Oilwell E2000, low low rated 711,000#, single line pull, w/10 lines,
driven by (2) GE 752 DC motors, Wichita 336 air operated/water
cooled disc brake, 1 3/8” wire rope 6x19 IWRC.
Prime Power
Omron/SCR System, 3 generator bays, 4 SCR bays, (3) Caterpillar
3512B w/Kato 1365 KW gen sets.
Auxiliary
Cold start air system, primary rig air supply, floor hoisting systems
Mast/Substructure
DSI 142’ 1,000,000# hook load, slingshot design 27’ RBC, 24.1’ RKB,
600,000# set back, Crown Block 6-60” Sheaves 1 3/8” groove, Fastline
1-60” 1 3/8” groove, hydraulic jack skidding system.
Top Drive – Traveling Block – Pipe Handling
Varco TDS11SA VF AC 500 Ton, Continental Emsco 500 Ton Block,
SJ Petro 27 ½” rotary table, drawworks driven
Mud Pumps
(2) Weatherford MP-16, 1600HP Triplex, 5000#psi driven
by (2) each, GE 752 DC motors.
Mud System
(3) tank system, 1200 bbl active capacity with 150 bbl TT,
tandem WFSI linear shale shakers, (8) NOV Max 2000 10HP mud agitators,
derrick desander (2) 12” cones with 6x8 centrifugal driven by 100 hp motor,
Derrick (12) 4” cones with 6x8 centrifugal driven by 100 hp motor, Derrick
Vaccu flow 1200 degasser and 48 x 20 gas buster.
BOP Equipment
13 5/8” 5000# annular, 13 5/8” 5000# double ram, Church
energy 3000 psi accumulator, 180 gal, 6 station with remote, 4 1/16” 10M x
3 1/16” 10M choke manifold.
Fuel tank
18000 gal
Water tank: 500 bbl
Auxiliary Equipment
Deadline Anchor, Weight indicator, pump SPM and PSI,
top drive control house, SCR system controls and MU/BO torque, manual tongs,
elevators, slips and clamps. |
