Description :

Drawworks :

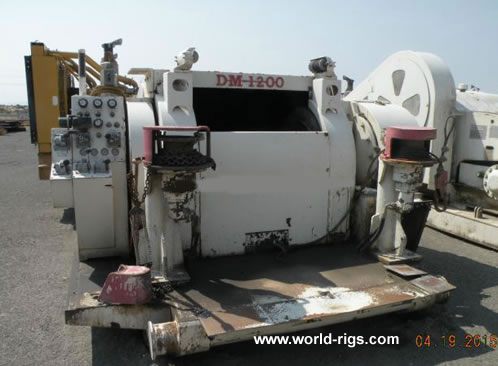

Drillmaster 1200M new (2009) single drum drawworks, 1200hp
Lebus grooved for 1-1/4" Drilling line, hydraulic operated makeup
& breakout winches, over-running clutch, Air driller's console,
crown-o-matic standard chain drive for rotary table

Compound :
2-Engine, In-line compound for rotary & drawworks drive.
Brake:
Superior a section 60" hydromatic brake

Drawworks Power:
No.1-Caterpillar C-18 diesel engine S/N# WJH01256,
600hp rated, w/24 volt electric start, radiator, guages,
Allison S-6610 6 speed transmission air clutch
Hours# 18,307
No.2 - Caterpillar C-18 diesel engine S/N# WJH01260,
600hp rated, w/24 volt electric start, radiator, gauges,
Allison S-6610 6 speed transmission air clutch
Hours# 17,854
Hydraulic power unit 40hp for tong winches and boom line winch

Mast:

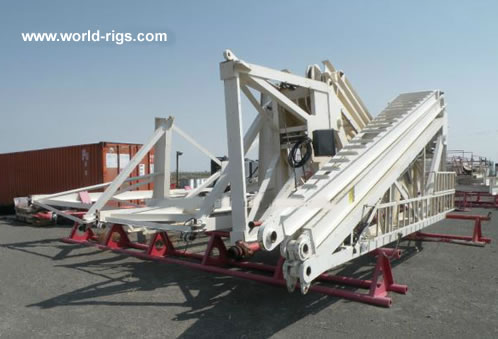

Drillmaster New 2009 SN#09864 20'1 1"W x 136'H Cantilever mast,
with a gross nominal capacity of 915,000 Lbs. and a 650,000 Lb. static hook load,
Max wind 91 knots,
with ten (10) lines. Crown block w/ (5) 42' Sheave cluster & 1-56" fast line sheave
grooved for 1-1/4" diameter drilling line.
Each crown sheave wire rope groove is flame hardened.
Each crown sheave is fitted with Timken roller bearings and grease seals.
Derrick compete with Crown safety platform, 20 finger racking board W/ electric mule,
Bridal lines, tong counter weights, survey line sheaves,
Tugger sheaves, Ladder, Derrick climber, Geronimo line, 4" standpipe &
manifod and Derrick stand.
Last certification 8/23/2009

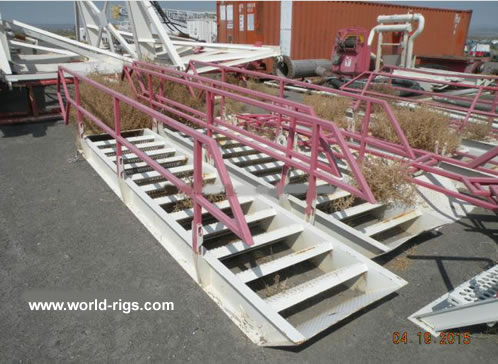

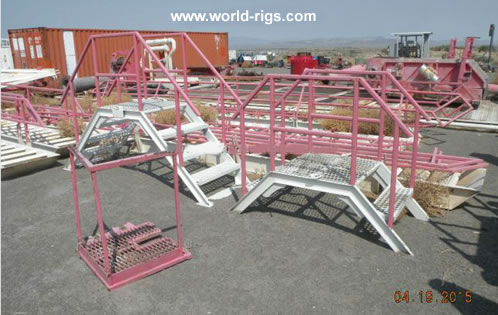

Substructure :
Drillmaster New (2009) 29'10"W x 20'H x 48'8"L
(4) Box-on-box substructure w/rotary beams, V-door ramp,
stairs, (2) air reciever tanks, National deadline anchor, Hydrualic power unit 40hp,
Safety rails, inside Catwalk trolley, 7'W x 14'L built in tool room (ODS) (3) stairs,
Outside wall Winterized, Jacking door, 12' x 12' setback spreader, interval stairway,
Vapor proof lighting, Skidded with oilfield tail rolls

Pump : (Primary)
CNPC Equipment F-1000 triplex mud pump news 2009,
S/N BZ11-040E, 1,000 hp.
w/ LANZOU Pulsation Dampener
MF 5,000 Psi. Pressure Gauge
Five Star 6" x 8" x 14" charging pump p/b TESCO 75hp. electric motor,
Chinese 3"Shear Relief Value, Master skidded w/ (2) Engines belt compound

Pump Power
Caterpillar C-18 Diesel Engines S/N WJHO1709,
575 hp w/24 Volt electric start, Radiator, gauges, V-Belt Drive Eaton 18CB500
Air Flex clutch, Mounted pump master skid.
Hours # 14,911
Caterpillar C-18 Diesel engine S/N WJH01683,
575 hp w/24 Volt electric start, radiator, gauges,
V-belt drive Eaton 18CB500 Air flex clutch,
Mounted pump master skid
Hours#14,859

Pump (Secondary)
CNPC Equipment F1000 triplex mud pump new 2009,
S/N BZ11-024E, 1,000hp.
w/ Lanzhou pulsation dampener,
MF 5,000 psi. Pressure gauge
Five star 6" x 8" x 14" charging pump p/b Worldwide 75hp. Electric motor,
3" Shear relief valve, Master skidded w/ (2) Engine belt compound

Pump Power
Caterpillar C-18 Diesel engine S/N WJH-1696,
575 hp w/24 volt electric start, Radiator, guages,
V-Belt Drive, Eaton 18CB500 Air flex clutch,
Mounted pump master skid.
Hours# 14,209
Caterpillar C1-8 diesel engine S/N WJH-1713,
575 hp w/ 24 volt electric start, radiator, guages,
V-Belt drive, EATON 18CB500 Air flex clutch,
Mounted pump master skid.
Hours#14,209

Rotating Equipment:
Rotary table
Liberty RT-275, New 2009, complies with API split master bushing,
W/ chain drive sprocket, 500 ton capacity

Swivel
Ideco 450

Kelly
5-1/4" x 42' Hex Kelly W/ HDS kelly drive bushing

Kelly Spinner
OWI 1500 Kelly spinner S/N 00474B w/ (2) Air Motor,

Kelly Valves
Upper Kelly Valve.
Lower Kelly Valve.

Traveling Equipment
Sentry rig equipment company
350 Ton capacity new 2009
4G350 travelling  block w/ (5) 36" sheaves, 1-1/4" line,
Unitized "hydra-hook" 350 ton capacity

Blowout Preventer and valves
1 Each -13-5/8" x 5000# Jiangsu Xianz Hong Petroleum
Double Gate BOP,Top & Bottom stud configuration
Including - 1set of 5" pipe rams blocks & 1set of Blind Rams,
With 2 - 4" outlets on each side of body of BOP

1 Each - 13-5/8" Shaffer Annular BOP
Includes rubber element

1 Each - 13 5/ 8" x 5000# Type D Drilling spool W/ -2" Side outlet & 3" Side outlet
(Matched to choke manifold

1 Each - choke manifold - 3" x 5000# complete
Inc-steel Flex line W/ Flanges to connect to BOPs or drilling spools

Closing Unit
2008 Jiangsu Xianz Hong Petroleum Model FXQ640-6
Closing Unit Accumulator, 6 station,
Rig floor controls and minitor panel,
Complete W/15 bottles, 30 hp Cat 3517 charge pump, 2 Air pumps, & set up for
Nitrogen bottle backup
Suitcase closing Unit skid 7'-1 0" x 35' with junk basket

Choke Manifold and Valaves
Jiangsu Xianz Hong Petroleum Choke manifold w/ (1) -way cross, (3) 4-1/16"x5M
Gate valves, (4) 2-9/16" x 5M gate valves, (1) Manual adjustable chokes,
Hydraulic adjustable chokes,
Mounted oil field skid.
W/ 2 kill valves- & 2-choke valves mounted at drilling spool

Rig Houses:
Dog house,
Drillmaster 9'1 1"W x 39' 1 1"L
Doghouse/change house combination w/ 17;5"L
Driller's house w / knowlegde box (5) lockers, bench storage, Heater, Lights.
5'L Breezeway, 1 7'5"L Change house, w/bench storage,(16-Lockers,
Cabinets, Heater & Lights. Oil Field skidded.

Generator/Utility Houses
Drillmaster 1 1'10"W x 37'9"L x 11' 6"T
Utility House wLights, Oil field skidded to include the following items.

No #2 380 Kw. AC Caterpillar Generator package powered by Caterpillar C-15 diesel
engine S/N JRE01970 w/ 24 volt electric start, Radiator, HD Air cleaner guages.
Marathon 572RSL4025 Generator end SN# 554268-1106, complete with oil field skid.
Hours# 14,574

No. 1 Gardner-Denver EBE99N New 2006
Electro saver II rotary screw air compressor S/N# S237421,
P/b Toshiba 30hp. Electric motor, mounted 240 gallon horizontal tank.
Hours# 14,128

No.2 Gardner- Denver EBE99N New 2006
Electro Saver II Rotarty screw air compressor S/N# S237419,
P/b Toshiba 30hp. electric motor, mouted 240 gallon horozontal tank.
Hours# 14,400

Siemens Interlock panel, 600 Amp 480 volt main lockout disconnects breakers,

Allen Bradley electrical load center & breakers,

Square D 225 amp 240 volt panel with breakers

Square D 75KVA transformer 480 volt to 240 volt

Drillmaster 7'9"W x 13"H x 43'1"L Electrical suitcase

Drillmaster 2'5"W x 1 3"H x 36'3"L Electrical

Suitcase.

Mud System :
Drillmaster 9'6"W x 7'H x 34'5"L, 394 Bbl. Suction tank
10'L covered porch, (3) compartments,
(3) Max 2000 mud agitators p/b TECO 25hp. electric motors,
Sloped bottom, top mounted walkways, safely rails, lights, oil field skidded.
Five Star 6" x 8" x 14" centrifugal mixing pump S/N 5284, p/b Baldor 75 hp.
Electric motor.
Five Star 6" x 8" x 14" centrifugal mixing pump S/N 5284, p/b Baldor 75 hp.
Electric motor.
With internal jetting system, 3 dump gates.

drillmaster 9'6 "W x 7'H x 34'7"L, 394 Bbl. shaker tank
10'L covered porch, (3) Compartments
Max 2000 mud agitator agitators p/b TESCO 25 hp. electric motors,
Sloped bottom, top mounted walkways, safely rails, lights, skidded.
With internal jetting system, 3 dump gates.

Five Star 6" x 8" x 14" centrifugal mixing pump S/N
5269, p/b Baldor 75 hp. electric motor.

Five Star 6" x 8" x 14" centrifugal mixing pump S/N
5283, p/b Baldor 75 hp electric motor.

Shale shaker, Shaker, Fluid Systems Inc., Single screen,
Linear motion shale shaker S/N2450,

Shale shaker, Shaker, Fluid Systems Inc., Single screen,
Linear motion shale shaker S/N3089

NOI DSN-ZH-10CTX Desander S/N 8714-5732,w/ (2) 10" cones.

NOI DSL-10GG-4CTX Desilter S/N 8714-5731,w/ (10) 4" cones.

Drilco "Deep Pit" Degasser p/b TESCO 10 hp. electric motor

Bubble Buster: Geothermal type bubble buster

Mud House
Drillmaster 9' 1 1"W x 26'L Mud house w/mud house w/mud hopper,
Test sink, ventilation, fan, electric heater,
Lights, double side door, (2) end doors, skidded. Inculdes 7'H Tri-stand on one
end the other end sets on suction tank.

Fuel Tank
Drillmaster 7'1 1"Wx8'Hx30'L, 13,860 gallon fuel tank
w/(2) AMT 1/2 hp. fuel transfer pumps p/b Baldor 1/2 hp. electric motor,
With three (3) compartements, combo lubester oilfield skidded.

Water Tank
Drillmaster 10'10"W x 8'1"H x 35'L, 529 Bbl. Water tankx
w/ 10'L covered extension, pump room, oilfield skidded

Five Star 3"x4"x1 1" Centrifugal water Pump
S/N 5420, p/b Tesco 20 hp. electric motor

Five Star 3"x4"x1 1" Centrifugal water pump
S/N5267, p/b Tesco 20 Hp. Electric motor.

Instrumentation
Weight indicator
Mud guages.

Ancillary Equipment:
Drillmaster 5'W x 2'4"H x 60'L, 2-Section catwalk w/ steel deck and stands for string blocks

Pipe racks 5 sets 29" x 30'1 set 29" x 12' 1 set 41" x 30'

Five Star 'Retriever" electric measuring device S/N 862, w/ 15,000 Ft. of. 092
Wire line

2 sets drill pipe elevators 5"

2 sets of drill pipe slips 5"

2 sets drill collar slips 7" & 9"

2 sets tongs with all head for pipe & casing

2 sets of safety clamps

Mud box

108" 4" elevator bails

Crossover, bottom hole, lifting subs

Air hoists air wrench, Model HUL40, S/N-REM10370, 9000 lb. pull rating

Air hoist air wrench, Model KSUL, S/N-REM13962, 10,500 lb. pull rating

4,000 ft. of 1-1/4" drill line, mounted spooler stand

3-1/2" x 5,000 Psi. rotary hose

Vibrator hose 2 each 3 1/2" x 18'

Rat hole

Mouse hole

8 rig matting boards

Small hand tools & wrenches

Fluorescent & mercury-vapor rig lights & wiring explosion proof

Atco office/ living shack all electric w/ oil field skid

Description :

Drawworks :
Drillmaster 1200M new (2009) single drum drawworks, 1200hp
Lebus grooved for 1-1/4" Drilling line, hydraulic operated makeup
& breakout winches, over-running clutch, Air driller's console,
crown-o-matic standard chain drive for rotary table

Compound :
2-Engine, In-line compound for rotary & drawworks drive.
Brake:
Superior a section 60" hydromatic brake

Drawworks Power:
No.1-Caterpillar C-18 diesel engine S/N# WJH01256,
600hp rated, w/24 volt electric start, radiator, guages,
Allison S-6610 6 speed transmission air clutch
Hours# 18,307
No.2 - Caterpillar C-18 diesel engine S/N# WJH01260,
600hp rated, w/24 volt electric start, radiator, gauges,
Allison S-6610 6 speed transmission air clutch
Hours# 17,854
Hydraulic power unit 40hp for tong winches and boom line winch

Mast:
Drillmaster New 2009 SN#09864 20'1 1"W x 136'H Cantilever mast,
with a gross nominal capacity of 915,000 Lbs. and a 650,000 Lb. static hook load,
Max wind 91 knots,
with ten (10) lines. Crown block w/ (5) 42' Sheave cluster & 1-56" fast line sheave
grooved for 1-1/4" diameter drilling line.
Each crown sheave wire rope groove is flame hardened.
Each crown sheave is fitted with Timken roller bearings and grease seals.
Derrick compete with Crown safety platform, 20 finger racking board W/ electric mule,
Bridal lines, tong counter weights, survey line sheaves,
Tugger sheaves, Ladder, Derrick climber, Geronimo line, 4" standpipe &
manifod and Derrick stand.
Last certification 8/23/2009

Substructure :
Drillmaster New (2009) 29'10"W x 20'H x 48'8"L
(4) Box-on-box substructure w/rotary beams, V-door ramp,
stairs, (2) air reciever tanks, National deadline anchor, Hydrualic power unit 40hp,
Safety rails, inside Catwalk trolley, 7'W x 14'L built in tool room (ODS) (3) stairs,
Outside wall Winterized, Jacking door, 12' x 12' setback spreader, interval stairway,
Vapor proof lighting, Skidded with oilfield tail rolls

Pump : (Primary)
CNPC Equipment F-1000 triplex mud pump news 2009,
S/N BZ11-040E, 1,000 hp.
w/ LANZOU Pulsation Dampener
MF 5,000 Psi. Pressure Gauge
Five Star 6" x 8" x 14" charging pump p/b TESCO 75hp. electric motor,
Chinese 3"Shear Relief Value, Master skidded w/ (2) Engines belt compound

Pump Power
Caterpillar C-18 Diesel Engines S/N WJHO1709,
575 hp w/24 Volt electric start, Radiator, gauges, V-Belt Drive Eaton 18CB500
Air Flex clutch, Mounted pump master skid.
Hours # 14,911
Caterpillar C-18 Diesel engine S/N WJH01683,
575 hp w/24 Volt electric start, radiator, gauges,
V-belt drive Eaton 18CB500 Air flex clutch,
Mounted pump master skid
Hours#14,859

Pump (Secondary)
CNPC Equipment F1000 triplex mud pump new 2009,
S/N BZ11-024E, 1,000hp.
w/ Lanzhou pulsation dampener,
MF 5,000 psi. Pressure gauge
Five star 6" x 8" x 14" charging pump p/b Worldwide 75hp. Electric motor,
3" Shear relief valve, Master skidded w/ (2) Engine belt compound

Pump Power
Caterpillar C-18 Diesel engine S/N WJH-1696,
575 hp w/24 volt electric start, Radiator, guages,
V-Belt Drive, Eaton 18CB500 Air flex clutch,
Mounted pump master skid.
Hours# 14,209
Caterpillar C1-8 diesel engine S/N WJH-1713,
575 hp w/ 24 volt electric start, radiator, guages,
V-Belt drive, EATON 18CB500 Air flex clutch,
Mounted pump master skid.
Hours#14,209

Rotating Equipment:
Rotary table
Liberty RT-275, New 2009, complies with API split master bushing,
W/ chain drive sprocket, 500 ton capacity

Swivel
Ideco 450

Kelly
5-1/4" x 42' Hex Kelly W/ HDS kelly drive bushing

Kelly Spinner
OWI 1500 Kelly spinner S/N 00474B w/ (2) Air Motor,

Kelly Valves
Upper Kelly Valve.
Lower Kelly Valve.

Traveling Equipment
Sentry rig equipment company
350 Ton capacity new 2009
4G350 travelling  block w/ (5) 36" sheaves, 1-1/4" line,
Unitized "hydra-hook" 350 ton capacity

Blowout Preventer and valves
1 Each -13-5/8" x 5000# Jiangsu Xianz Hong Petroleum
Double Gate BOP,Top & Bottom stud configuration
Including - 1set of 5" pipe rams blocks & 1set of Blind Rams,
With 2 - 4" outlets on each side of body of BOP

1 Each - 13-5/8" Shaffer Annular BOP
Includes rubber element

1 Each - 13 5/ 8" x 5000# Type D Drilling spool W/ -2" Side outlet & 3" Side outlet
(Matched to choke manifold

1 Each - choke manifold - 3" x 5000# complete
Inc-steel Flex line W/ Flanges to connect to BOPs or drilling spools

Closing Unit
2008 Jiangsu Xianz Hong Petroleum Model FXQ640-6
Closing Unit Accumulator, 6 station,
Rig floor controls and minitor panel,
Complete W/15 bottles, 30 hp Cat 3517 charge pump, 2 Air pumps, & set up for
Nitrogen bottle backup
Suitcase closing Unit skid 7'-1 0" x 35' with junk basket

Choke Manifold and Valaves
Jiangsu Xianz Hong Petroleum Choke manifold w/ (1) -way cross, (3) 4-1/16"x5M
Gate valves, (4) 2-9/16" x 5M gate valves, (1) Manual adjustable chokes,
Hydraulic adjustable chokes,
Mounted oil field skid.
W/ 2 kill valves- & 2-choke valves mounted at drilling spool

Rig Houses:
Dog house,
Drillmaster 9'1 1"W x 39' 1 1"L
Doghouse/change house combination w/ 17;5"L
Driller's house w / knowlegde box (5) lockers, bench storage, Heater, Lights.
5'L Breezeway, 1 7'5"L Change house, w/bench storage,(16-Lockers,
Cabinets, Heater & Lights. Oil Field skidded.

Generator/Utility Houses
Drillmaster 1 1'10"W x 37'9"L x 11' 6"T
Utility House wLights, Oil field skidded to include the following items.

No #2 380 Kw. AC Caterpillar Generator package powered by Caterpillar C-15 diesel
engine S/N JRE01970 w/ 24 volt electric start, Radiator, HD Air cleaner guages.
Marathon 572RSL4025 Generator end SN# 554268-1106, complete with oil field skid.
Hours# 14,574

No. 1 Gardner-Denver EBE99N New 2006
Electro saver II rotary screw air compressor S/N# S237421,
P/b Toshiba 30hp. Electric motor, mounted 240 gallon horizontal tank.
Hours# 14,128

No.2 Gardner- Denver EBE99N New 2006
Electro Saver II Rotarty screw air compressor S/N# S237419,
P/b Toshiba 30hp. electric motor, mouted 240 gallon horozontal tank.
Hours# 14,400

Siemens Interlock panel, 600 Amp 480 volt main lockout disconnects breakers,

Allen Bradley electrical load center & breakers,

Square D 225 amp 240 volt panel with breakers

Square D 75KVA transformer 480 volt to 240 volt

Drillmaster 7'9"W x 13"H x 43'1"L Electrical suitcase

Drillmaster 2'5"W x 1 3"H x 36'3"L Electrical

Suitcase.

Mud System :
Drillmaster 9'6"W x 7'H x 34'5"L, 394 Bbl. Suction tank
10'L covered porch, (3) compartments,
(3) Max 2000 mud agitators p/b TECO 25hp. electric motors,
Sloped bottom, top mounted walkways, safely rails, lights, oil field skidded.
Five Star 6" x 8" x 14" centrifugal mixing pump S/N 5284, p/b Baldor 75 hp.
Electric motor.
Five Star 6" x 8" x 14" centrifugal mixing pump S/N 5284, p/b Baldor 75 hp.
Electric motor.
With internal jetting system, 3 dump gates.

drillmaster 9'6 "W x 7'H x 34'7"L, 394 Bbl. shaker tank
10'L covered porch, (3) Compartments
Max 2000 mud agitator agitators p/b TESCO 25 hp. electric motors,
Sloped bottom, top mounted walkways, safely rails, lights, skidded.
With internal jetting system, 3 dump gates.

Five Star 6" x 8" x 14" centrifugal mixing pump S/N
5269, p/b Baldor 75 hp. electric motor.

Five Star 6" x 8" x 14" centrifugal mixing pump S/N
5283, p/b Baldor 75 hp electric motor.

Shale shaker, Shaker, Fluid Systems Inc., Single screen,
Linear motion shale shaker S/N2450,

Shale shaker, Shaker, Fluid Systems Inc., Single screen,
Linear motion shale shaker S/N3089

NOI DSN-ZH-10CTX Desander S/N 8714-5732,w/ (2) 10" cones.

NOI DSL-10GG-4CTX Desilter S/N 8714-5731,w/ (10) 4" cones.

Drilco "Deep Pit" Degasser p/b TESCO 10 hp. electric motor

Bubble Buster: Geothermal type bubble buster

Mud House
Drillmaster 9' 1 1"W x 26'L Mud house w/mud house w/mud hopper,
Test sink, ventilation, fan, electric heater,
Lights, double side door, (2) end doors, skidded. Inculdes 7'H Tri-stand on one
end the other end sets on suction tank.

Fuel Tank
Drillmaster 7'1 1"Wx8'Hx30'L, 13,860 gallon fuel tank
w/(2) AMT 1/2 hp. fuel transfer pumps p/b Baldor 1/2 hp. electric motor,
With three (3) compartements, combo lubester oilfield skidded.

Water Tank
Drillmaster 10'10"W x 8'1"H x 35'L, 529 Bbl. Water tankx
w/ 10'L covered extension, pump room, oilfield skidded

Five Star 3"x4"x1 1" Centrifugal water Pump
S/N 5420, p/b Tesco 20 hp. electric motor

Five Star 3"x4"x1 1" Centrifugal water pump
S/N5267, p/b Tesco 20 Hp. Electric motor.

Instrumentation
Weight indicator
Mud guages.

Ancillary Equipment:
Drillmaster 5'W x 2'4"H x 60'L, 2-Section catwalk w/ steel deck and stands for string blocks

Pipe racks 5 sets 29" x 30'1 set 29" x 12' 1 set 41" x 30'

Five Star 'Retriever" electric measuring device S/N 862, w/ 15,000 Ft. of. 092
Wire line

2 sets drill pipe elevators 5"

2 sets of drill pipe slips 5"

2 sets drill collar slips 7" & 9"

2 sets tongs with all head for pipe & casing

2 sets of safety clamps

Mud box

108" 4" elevator bails

Crossover, bottom hole, lifting subs

Air hoists air wrench, Model HUL40, S/N-REM10370, 9000 lb. pull rating

Air hoist air wrench, Model KSUL, S/N-REM13962, 10,500 lb. pull rating

4,000 ft. of 1-1/4" drill line, mounted spooler stand

3-1/2" x 5,000 Psi. rotary hose

Vibrator hose 2 each 3 1/2" x 18'

Rat hole

Mouse hole

8 rig matting boards

Small hand tools & wrenches

Fluorescent & mercury-vapor rig lights & wiring explosion proof

Atco office/ living shack all electric w/ oil field skid
