Description

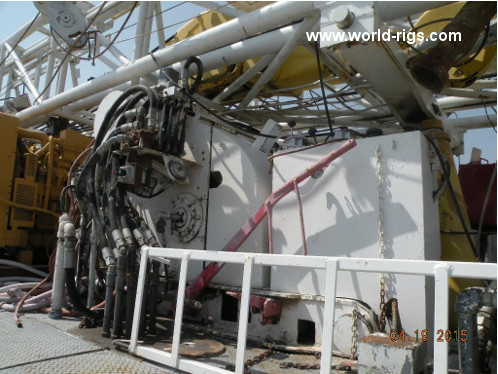

Drawworks :
Brewster, Model N-4, Single Drum Drawworks, 650Hp, Lebus Grooved
for 1-1/8" Line, Hydraulic Makeup & Breakout Catheads, Air Driller's Console,
Crown-O-Matic, 8” water cooled brakes,

Compound :
Brewster 2-Engine, In-Line Compound

Brake :
D & H 15" Double Hydromatic Brake With jaw clutch

Drawwworks Power:
No. 1 - CATERPILLAR 3306 Diesel Engine 361HP, S/N 64Z33301
w/ 24 Volt Electric Start, Radiator,Gauges,
ALLISON 955 Torque Converter.

No. 2 - CATERPILLAR 3306 Diesel Engine 361HP, S/N 64Z33298 w/
24 Volt Electric Start, Radiator,Gauges,
ALLISON 955 Torque Converter

Mast:
SPENCER HARRIS 97'H Cantilever Mast, 285,000 Lb. Static Hook Load,
Crown Block w/ (4) 30" Sheave Cluster & (1) 30" Fastline Sheave, 1-1/8" Line,
Racking Board, Tong Counter Weights, Ladder, DerrickClimber, Geronimo,
4" Standpipe & Manifold

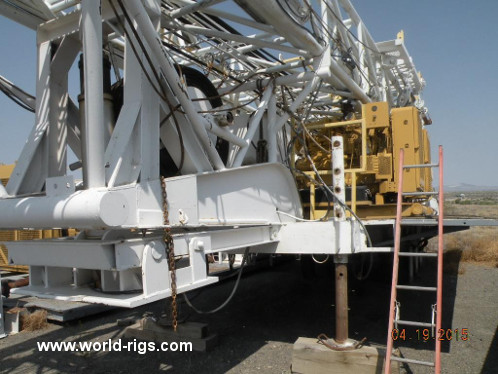

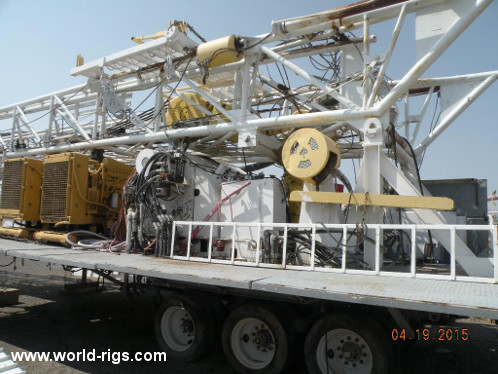

Carrier:
SPENCER HARRIS 40'L, Tri-Axle, Dual Wheel Trailer w/ Leveling
Jacks, 57'8"L Back-On-Ramp, Fold Out Walkways, Deadline Anchor,
Safety Rails.

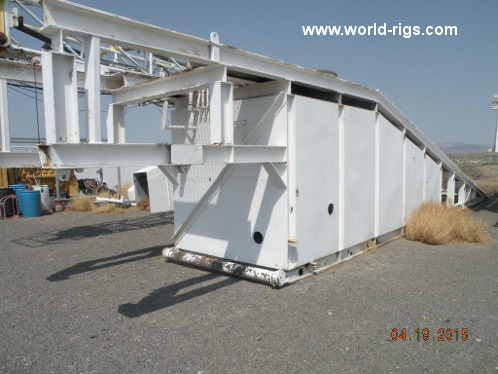

Substructure:
SHOPBUILT 11'6"W x 16'H x 23'6"L Swing Up Substructure w/
Rotary Beams, (Refurbished in 2009)With Certifications, V Door Ramp,
Stairs Safety Rails, Skidded.

Pump: (Primary)
GARDNER DENVER PZ9 Triplex Mud Pump, 1000 Hp. W / Forged
Steel Fluid End, Quick Change Valve & Cylinder Head Caps, HYDRIL
Pulsation Dampener, OTECO 3" Shear Relief Valve, Pressure Gauge,
Charging Pump, V-Belt Drive Assembly, Master Skidded w/ Engine

Pump Power:
CATERPILLAR D-398 Diesel Engine S/N 6685860 w/ Air Start,
Radiator, Gauges, Mounted Pump Master Skid.

Pump: (Standby)
NATIONAL N1100 Duplex Mud Pump, 500 Hp. w/ Forged Steel
Fluid End, Quick Change Valve & Cylinder Head Caps,
HYDRIL Pulsation Dampener, OTECO 3" Shear Relief Valve, Pressure Gauge,
Charging Pump, V-Belt Drive Assembly, Master Skidded w/ Engine

Pump Power:
CATERPILLAR D-398 Diesel Engine S/N 66B5860 w/ Air Start,
Radiator, Gauges, Mounted Pump Master Skid.

Rotary Table
Gardner Denver 27 -1/2" Rotary Table w/ Split Master Bushings,
with raised floor

Swivel
BREWSTER 6S 220 Ton Swivel

Kelly
Kelly, Square drive , 5-1/4" x 37', with Kelly bushing

Kelly Valves
Upper Kelly Valve.
Lower Kelly Valve

Traveling Block / Hook
BREWSTER 175 Ton Block/Hook Combination, with elevator links

Blowout Preventer and Valves
SHAFFER LWS Double gate, Blowout Preventer 13 5/8" X 3,000 psi
13 5/8"Dia. x 30"H x 3 M Drilling Spools. 3,000 Psi. Choke Manifold.
Choke Valves- Kill Valves-

Closing Unit
Closing Unit., 6 station, with drillers control panel
120 Gal 5 station accumulator w/remote

Rig Houses:
Dog House, 10'W x 50'L Doghouse w/ (4) Lockers, Knowledge Box,
Parts Room, Bench Storage, (1) Heater, Air Conditioner, Lights,
Skidded

Shopbuilt 8'W x 25'L Mud House w/ Pump parts Room, Mud Hopper,
Heater, Lights, Skidded.

Utility Houses/Generators:
Utility House, 10'W x 50'L, Electrical Panel, Air Compressor, Transformer

No. 1 - DETROIT 350 Kw. AC Generator
Powered By DETROIT Series 60 Diesel Engine w/ Electric Start, Radiator, Gauges.

No. 2 - CATERPILLAR 234 Kw. AC Generator
Powered By Caterpillar, 3306, Diesel Engine w/ Electric Start, Radiator, Gauges
All above Mounted 12'W x 50'L Utility House w/ Parts Room, Lights, Skidded

Mud System:
Shopbuilt, 10'W x 6'H x 42'L, 432 Bbl. Suction Tank w19' Porch,
(3) Compartment, (3) OILWORKS Pit boss 10 Hp.
Mud Agitators p/b BALDOR 10 Hp. Electric Motors,
Slant Bottom, Internal Plumbing,
Top Mounted Walkways, Safety Rails, Lights, Skidded.
MISSION 5" x 6" Centrifugal Pump p/b TECO 50 Hp. Electric Motor

Shopbuilt 10'W x 6'H x 42'L, 432 Bbl. Shaker Tank w/ 9'
Covered Porch, (4) Compartment,
(1) OILWORKS Pitboss 10 Hp. Mud Agitator S/N 2143 p/b BALDOR 10 Hp.
Electric Motor, Slant Bottom,
Internal Plumbing, Top Mounted Walkways, Safety Rails, Lights, Skidded.
FIVE STAR 5" x 6" Centrifugal Pump p/b TECO 50 Hp. Electric Motor
FIVE STAR 5" x 6" Centrifugal Pump p/b TECO 50 Hp. Electric Motor
FLUID SYSTEMS, Single Screen, Linear Motion Shale Shaker S/N 2314
O'DRILL / MCM, Desilter w/ (8) 4" Cones
O'DRILL / MCM, Desander w/ 2 10" Cones

Water Tank
Shopbuilt 10'W x 8'H x 40'L, 549 Bbl. Water Tank w/Parts Room, Parts
Bins, Lubester, Lights, Centrifugal Water Pump, with Dog house stand
inside, Oilfield Skidded

Fuel Tank
Shopbuilt 8'W x 8'H x 30'L, 13,837 Gallon Fuel Tank w/ (2) Fuel Transfer
Pumps, Oilfield Skidded

Trailers
20' Office trailer w/furniture

Miscellaneous Equipment Including

Approx. 6' X 20' Bubble buster flash tank
1 set type C tongs w/heads
12" x 400 x 10" crossover spool
41 Misc. handling and crossover subs
Wire line unit XCE serial # 01 006N4
2 pin ROP and weight indicator
2 sets slips
400K weight indicator
2 sets elevators
3" Marlow trash pump
