Rack & Pinion, Super Single Drilling Rig for sale


Name    :    Rack & Pinion, Super Single Drilling Rig for sale
ID    :    WR635
Price   :    Inquire for pricing
Specifications   :    Super Single Drilling Rig for Sale
850HP Trailer Mounted Rack & Pinion Rig for sale
10,000ft Drilling Depth Super Single Rig for Sale
Trailer Mounted Rack & Pinion, Super Single Rig
Parallelogram Style Drilling Rig - For Sale
Rack & Pinion, Super Single Drilling Rig for sale
850HP Super Single Rig for Sale
Land Drilling Rig for Sale



General Description
Estimated Drilling Depth : 10,000 ft
Estimated Rig Move Loads : 22
Estimated Camp Move Loads : 4
Rated HP : 850

Mast
Height : 80.00 ft
Static Hook Load Capacity: 300,000 lbs
Mast Racking Capacity : N/A

Substructure
Style : Parallelogram
Height : 14.00 ft
Clear Height : 11.00 ft
Casing Capacity : 300,000 lbs
Maximum Setback Load (lbs.) : 300,000

No Drawworks

Top Drive / Power Swivel
Make : Tesco
Model : 250 HMI 475
Capacity : 250 Ton
Torque - Continuous : 21,000 ft-lb @ 56 rpm

No Swivel
No Rotary Table

Power Generation
Engines : 3 ea. Detroit Diesel Series 6063HV35
Generators : 3 ea. Stamford Power System HCI534D
SCR / VFD / DC/DC : Rack & Pinion Rig

Enhancements
Iron Roughneck : NOV IR-3080-55-AHM

Mud System

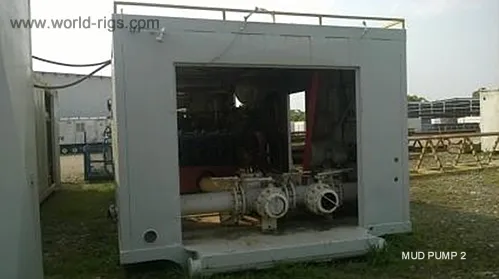

Mud Pumps : 2 ea NOV F-800
Power Rating : 800 hp @ 150 spm
Reserve Mud Volume : 0 bbls
Pressure Rating : 5,000 psi
Active Mud Volume : 700 bbls
Shale Shakers : 2 ea. MI Swaco

Desander : N/A
Desilter : N/A
Mud Cleaner : N/A
Centrifuge : N/A

Well Control
Choke Manifold : 2 1/16" 5,000 psi
BOP Closing Unit : Control Technology, 5 station 3,000 psi

WorldRigs has Rack & Pinion, Super Single Drilling Rig for sale
