Alta 1500 HP AC/VFD Drilling Rig for sale


Name    :    Alta 1500 HP AC/VFD Drilling Rig for sale
ID    :    WR815
Price   :    Inquire for pricing
Specifications   :    Alta 1500 HP AC/VFD Drilling Rig for sale
1500HP AC/VFD Rig for sale
Land Drilling Rig for Sale
Used Drilling Rig - Alta 1500HP - For Sale
AC/VFD Rig for Sale



Mast
Clear Height : 142’
Max. Static Hook Load (12 Lines) : 800,000 lbs
Max. Wind Capacity : 75 knots

Substructure
Floor Height : 25’
Clear Height : 20’-6”
Rotary Capacity : 800,000 lbs
Setback Capacity : 600,000 lbs
Hole Opening : 37-1/2”

Top Drive
Max. Static Hook Load Rating : 500 tons
Max. Speed : 265 rpm
Max. Intermittent Torque : 71,000 ft-lbs
Max. Continuous Torque : 51,400 ft-lbs
Pressure Rating : 7,500 psi

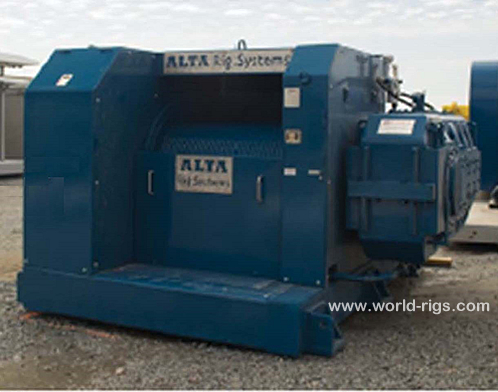

Drawworks
Rated Capacity : 1500 hp
Max. Capacity (12 lines) : 800,000 lbs
Drum Groove : 1-3/8”

Mud Pumps
Input Horsepower Rating : 2,200 hp
Maximum Pump SPM : 120 rpm
Maximum Liner Size : 9”
Minimum Liner Size : 5”
Stroke : 14

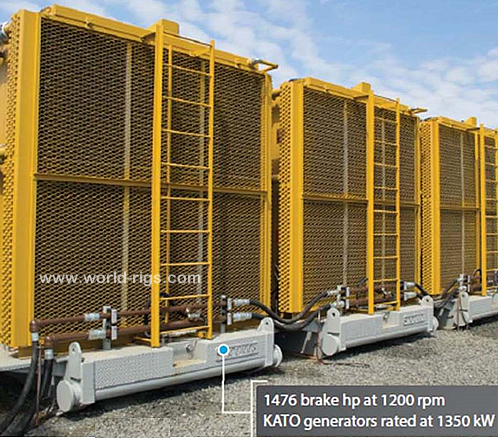

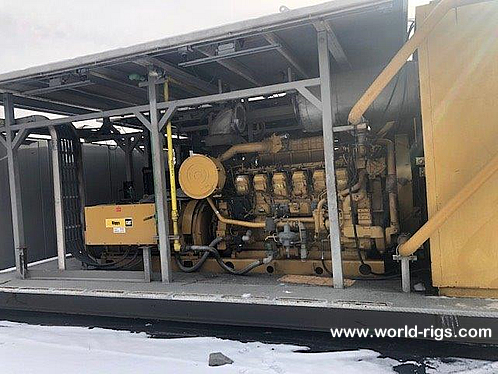

Power Generation
Generator Power : 1350 kW @ 1200 rpm
Engine Power : 1476 HP @ 1200 rpm

WorldRigs has Alta 1500 HP AC/VFD Drilling Rig for sale
