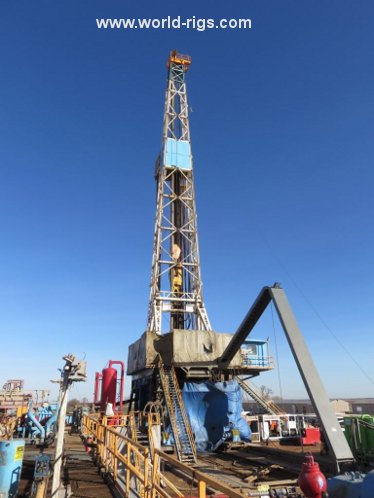

National 610E Drilling Rig for Sale
750 HP National 610E Drilling Rig - For Sale
Drilling Rig - National 610E for Sale
National Drilling Rig for Sale
National 610E 750 HP Drilling Rig for Sale
National 610E Drilling Rig for Sale in USA
Land Drilling Rig - For Sale
Description :
Drawworks National 610-E (750 HP) drawworks with: Wichita 325KKB disk brake 1-1/4” Lebus grooving
Mast/Sub DSI 142ft beam leg mast 650,000 static hook load 22ft Swing-Up sub
Power (3) Detroit Diesel 12V2000 Gensets (1100HP) with: 800 KW generators Ross Hill 4 SCR Bay
Traveling/Rotary Varco TDS-10 (250 ton) AC top drive Traveling Block (250 ton) Cont Emsco C275 Rotary Table
Mud System (2) RSF 1000 (1000 hp) mud pumps Each driven by (1) DC traction motor
(2) Tank mud system (840 bbl capacity) 80 bbl sloped bottom sand trap 100 bbl premix/pill pit
Mud Systems (Cont) Trip tank (110 bbl) (2) Derrick FLC 504 linear motion shakers (1) Desilter (10) 5” cones
BOP Equipment (1) 11-5,000# Annular BOP (1) 11-5,000# Double ram BOP (1) 11-5,000# drilling spool with: (1) 2-1/16” 5,000# check valve (2) 2-1/16” 5,000# manual kill line valves (1) 4-1/16” 5,000# manual choke valve (1) 4-1/16” 5,000# HCR choke valve 4-1/16” x 3-1/16””- 5,000# choke manifold
Accumulator 120 gallon bottle capacity, 5 station Triplex air pump w/20 hp electric motor (2) Auxiliary air pumps Remote closing unit f/accumulator
Instrumentation Martin-Decker Type D weight indicator Pump pressure gauge Tong torque gauge
Handling Tools (Cont) 1) Set 2-1/4” x 108”, 250 ton elevator links (2) 4-1/2” SDXL drill pipe slips (1) 5-1/2”-7” drill collar slips (1) 6-3/4”-8-1/4” drill collar slips (1) Drill collar safety clamp
Auxiliary Equipment Gardner Denver PL30A cold start piston air compressor (34 cfm @ 175 psi) mounted on 240 gal horizontal air tank Powered by Honda 24 hp gas motor, electric start
(2) Palitek 30D air compressors w/30 hp electric motor (120 cfm @ 125 psi)
Oilworks Retriever wireline unit 15,000ft-.092” line
(1)Braden PD-12 hydraulic winch (12,000# capacity) (1)IR Man Rider air hoist (5000# capacity) Hydraulic power unit (2) 70 gpm, 100 hp
Brake water cooling unit 2 x 3 x 11, 30 hp centrifugal pumps 19 bbl tank, Heat exchanger
Houses & Misc. Top doghouse Parts/workshop house Water tank (500 bbl) w/(2) 3x4 centrifugal pumps (25 hp) Diesel fuel tank w/filters & transfer pumps (8) Pipe racks-18”H
Location : USA
WorldRigs has National 610E Drilling Rig - For Sale
