| Specifications : |
JC 50D SCR Drilling Rig for Sale
1200 HP SCR Tesco Top Drive Drilling Rig for Sale
Drilling Rig - JC 50D SCR - For Sale
1200 HP JC 50D SCR Drilling Rig for Sale
1200HP Used Drilling Rig For Sale in USA
Used Land Rigs for Sale
Used JC 50D SCR Drilling Rig for Sale
Description :
JC 50D - 1200HP Diesel Electric cantilever triple Drilling Rig regularly utilized
and ready to work. All components are Canadian & North American
stringent regulatory agency compliant,cold weather ready with recent
boiler recertification,plumbed for steam & electric heat.
Equipment summary :

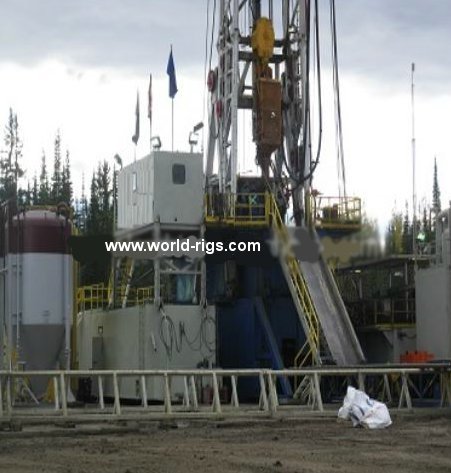

Diesel Electric cantilever triple built in 2007.Depth rating 5000m

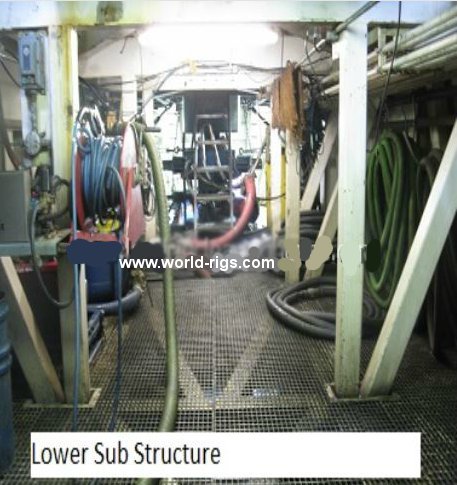

Box on Box sub structure, AER Class 4 or 5 BOP
ForumTM hydraulic cat walk system.
High Kelly JC 50 D DC powerd drawworks
10 line blocks strung to Tesco 350 ton Top Drive
Dual mud tanks c/w dual shale shakers,Integral hard top roof system
& mixing shack.
2-1300 HP triplex slush pumps DC powered (5000 PSI circulating system)
Dog house/water tank combination c/w tool shed
Change shack & accumulator building
#1,#2 & #3 Cummins powered DC gen sets
Power house SCR control building
2 pump houses
2 Generator houses
Boiler House

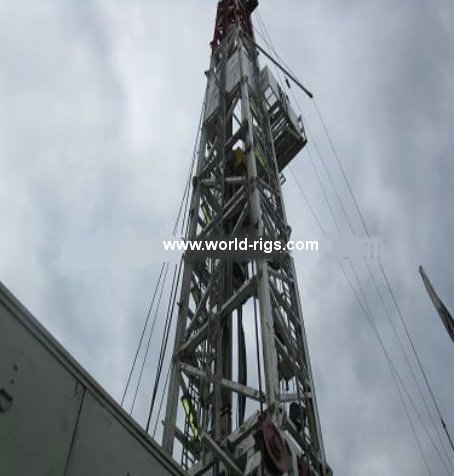

Mast Type :
High Kelly Beam Leg Cantilever Triple,315,000 daN 700,000# SHL w/12
Lines,racking capacity 5000m,16,000ft- 4-1/2" Drill Pipe.
Substructure Type :
Box on Box, with 20ft clear height, rotary capacity of 311,375 daN (350 ton).
Setback 311,375 daN (350 ton ). Forum TM Hydraulic catwalk. Moves without cranes

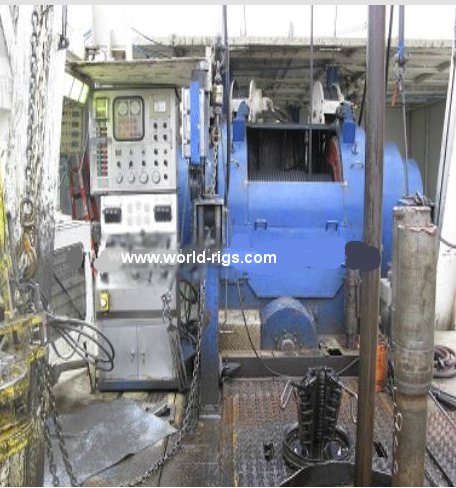

Drawworks :
RigmasterTM E90DC,90,000 Lbs Single Line Pull,745 kW (1200 hp), with Eaton
WC 1150 (Double 36"), and Yonge YZ - 208X2 drive. (Spare gear box available)
Elecrical Power Generation :
SCR unit power supplied by 3 Stamford 928 kW gens powered by
Cummins KTA 38-A (Spare KTA 38-A available)
Hoisting and Rotating Equipment
Top Drive :
Tesco EXI 600 HP 311,375 daN (350 ton)
Travelling Block : 5x42" 311,375 daN (350 ton)
Rotary Table : ZP - 275(National)
Pipe Spinner : Spinner Hawk Model 950 (Additionally Available)
Mud Tank :
187 m3 (1187 bbls), 6 Aagitators, 3-6"x5x11"centrifugal pumps,
2 Brandt King Cobra shale shakers,
Trip Tank Volume : 3.12 m3
Features : Integrel Hard top Lift roof w/tarps
Mud Pumps 2 - CSF - 1300(5000 PSI Circulating System) 12" stroke,
powered by 960kw (1300hp) GE 752 traction motots.
Well Control System :
Annular Preventor,11" 5000 psi double gate & single ram Shaffer type,
twin choke & kill lines
Choke Manifold :
Double wing 31/8" 35 mPa(5000 psi) Remote choke compatible
Accumulator :
Dong Su,7 station (Critical Sour compliant), 680 liters (180 Gal)
Degasser : Dual Poor-boy degassers & tank
Auxiliary Equipment :
Rig Manager accommodation, Tool shack,Simonneau 125 HP Boiler
Misc sub containers, Flare line rack,All pipe contained in tubs
Notes :
Major Component loads(Excluding pipe tubs,matting & misc.loads)=
@20 depending on move parameters @45 location move loads
BOP stack & Pipe Tubs negotiable
Tig Managers accommodations included
Drill pipe,Drill collars & HWDP not included
Tongs,Slips,Elevators,Bails & misc handling equipment negotiable
Location : USA |
