| Specifications : |
1500 HP Mechanical Land Rig for Sale
2007 Built Mechanical Land Rig for Sale

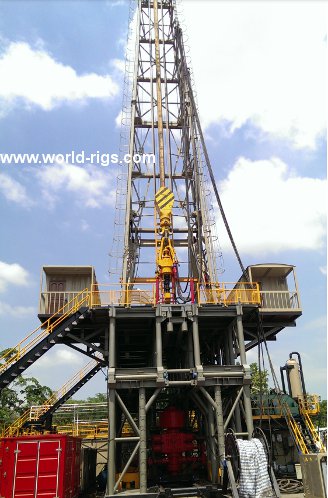

Mechanical Land Rig - 2007 Built for Sale

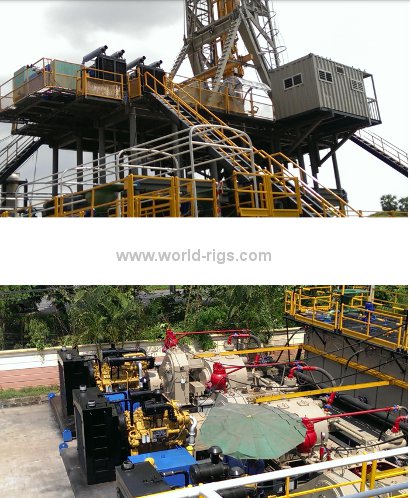

Used Mechanical Land Rig for Sale

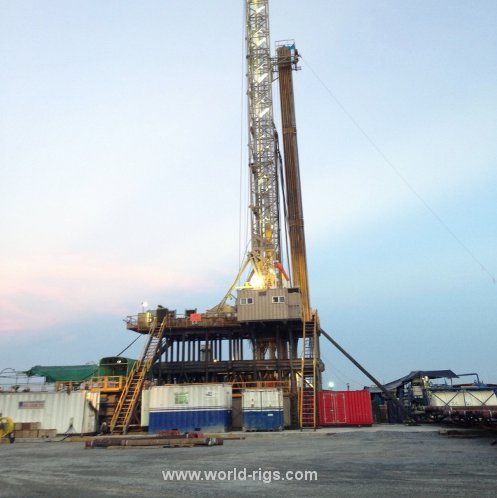

Drilling Rig - 1500 HP Mechanical

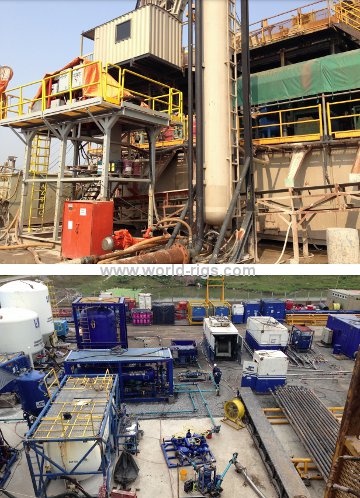

1500 HP Used Mechanical Land Rig for Sale
Mechanical Land Rig for Sale
Description :
Rated Depth : 3500m (5” DP)
Year : 2007
Actual Status : Warm stacked
General Rig Specifications :
Derrick and Substructure
Derrick/mast
Make type : Skytop (open view)
Height m : 44
Width of base m x m : 16.405 x 7.054
Gross nominal capacity MT : 250
Number of lines No : 10
Ladders with safety cages and rest platform : Yes
Counter balance, system for rig tongs and pipe spinning tong
Derrick / Mast to be fitted with heavy duty, vapour tight, fluorescent
lighting system, certified for use in division 1 or division 2
areas as required by IP, API c/w safety retaining wires : Yes
Racking Platform
Racking platform capacity of 3.5" DP m : 5000
Racking platform capacity of 5" DP m : 3800
Racking platform capacity of 4.75” DC No : 7
Racking platform capacity of 6.5" / 6.75” DC No : 4
Racking platform capacity of 8" DC No : 4
Racking platform capacity of 9.5" DC No : 4
Casing Stabbing Board
Adjustable from/to height m : 8 – 11m from rig floor
Substructure
Make/type : Aztec
Height m : 7.75
Width m : 7
Setback capacity MT : 150
Simultaneous setback + Hookload capacity MT + MT : 400
Clear height below Rotary Table beams : 6.75
Provision for single hole and Kelly scabbard : Yes
Skidding capability : Yes
Draw Works and Associated Equipment
Draw Works
Make/type : RMI
Drum type (Counterbalanced/Grooved) : Lebus Grooving
Spinning cathead type : EZY Torque
Breakout cathead type : EZY Torque
Crown block safety device : Yes
Crown block safety device model : Crown-O-Matic
Input power continuous HP : 1200
Input power maximum HP :1500
Drum diameter mm : 640
Maximum line pull MT : 250
Blockline size inch/mm : 1 ¼ “
Independent fresh water cooling system for draw works and brake : Yes
Draw Works Power
Type : Mechanical
Number of engines No : 2
Engine make : GM Detroit Deisel
Engine model : 12V92
Output power continuous HP : 1200
Output power intermittent (max.) HP : 1600
Auxiliary Brake
Make : Parmac
Model : V80
Independent fail safe back-up system (specify type) : Yes, hydraulic
Hoisting Equipment
Crown Block
Make/type : Aztec
Rated capacity MT : 250
No. of sheaves : 6
Sheave diameter mm : 762
Sheave grooved for line size mm : 32
Crown-o-matic : Yes
Pad-eye for wire line logging blocks, certified to 10MT : Yes
Travelling Block
Make/type : Jereh / YG225
Rated capacity MT : 225
No. of sheaves : 5
Sheave diameter mm : 1120
Sheave grooved for line size mm : 32
Hook
Make/type : Jereh / YG225
Rated capacity MT : 225
Complete with spring assembly/hook locking device : Yes
Swivel
Make/type (Incorporated Kelly spinner, double acting) : Jereh / XLS225 with spinner
Rated capacity MT : 225
Test/working pressure mPa : 35
C/W gooseneck and wash pipe minimum ID mm : 75
C/W 6 5/8" reg. left hand pin connection : Yes
C/W access fitting for wireline entry on top of gooseneck : Yes
Drilling Line
Size (min.) mm : 32
Type : 6 x 19 IPS IWRC
Length (min.) m : 1000
C/W support frame for drum/cover : Yes
Drilling line drum power driven : Yes
Spare reel drilling line : Yes
Anchor Dead Line
Make/type : Jereh
C/W weight sensor : Yes
Rotation System
Rotary Table
Make/type : Jereh / ZP-275
Minimum opening in : 27 ½ “
Rated capacity MT : 450
Maximum continuous torque Nm : 28,000
Master Bushings (split hinged master bushing c/w lock down)
Make : Jereh
Type : ZP-275
Full range of inserts bowls to suit running all casing sizes:-
18- 5/8””, 13-3/8”, 10-3/4”, 10”, 9-7/8”,9.5/8”, 7”,6-5/8”,4-1/2”
Including dedicated lifting slings and bit breaker adapter plates : Yes
Kelly Bushing
Make : Jereh
Type : Square
Top Drive
Make : DJ Petroleum
Type : TD40HY
Rated Capacity MT : 250
Test/Working Pressure mPa : 70/35
Type of drive motor : Hydraulic
Output Power (Continuous) HP : 540
Output Torque (Continuous) Nm : 35,000
Two speed gearbox : Yes
Maximum Rotary Speed rpm : 180
Top Drive (cont.)
Remote Upper IBOP : Yes
Wireline entry possible from top of unit : Yes
Fitted with pipe handler for remote breakout/make-up : Yes
Make up torque Nm : 50,000
Break out torque Nm : 50,000
Derrick Winches
Rig Floor Winches
Type : Hydraulic
Capacity MT : 5
Wire diameter mm : 12.7
Automatic brakes : Yes
Overload protection : No
Automatic spooling : No
Monkey Board Work Winch
Type (air winch or hydraulic racking arm option) : Hydraulic
Capacity MT : 1.5
Wire diameter mm : 6.35
Automatic brakes : No
Overload protection y/n : No
Automatic spooling y/n : No
Rig Floor Man-Riding Winch
Fully Certified for “man-riding” : Yes
Type : Hydraulic
Non-twist wire : Yes
Wire diameter mm : 12.7
Automatic brakes : Yes
Overload protection : Yes
Automatic spooling : No
Rig Power Plant
Diesel Engine Plant
Quantity No : 2
Make : GM Detroit Deisel
Type : 12V92
Maximum continuous power HP : 830
At rotation speed of RPM : 1900
Equipped with spark arrestors : Yes
Mufflers installed : Yes
Emergency Shutdown
Required emergency shutdown switches for the complete
power system located at the drillers position and power plant : Yes
Emergency Lighting System
Battery back up emergency lighting system. Lighting units
situated at key locations around rig and rig site offices : Yes
Auxiliary Power Supply
Provision for power supply for a mud logging unit with a typical power
requirement of 220 Volt, 60 Hz, single/three phase as available : Yes
Rig Service Air System
Air Compressors
Quantity No : 3
Make/ Model : FS TA-120
Rated capacity L/min : 1591
Working press Bar : 9.65
Rig Site Fuel System
Quantity No : 2
Capacity L : 20,000
Detailed specification will be given on request. |
