Hydraulic Super Single TXD 200 Rig for Sale
Hydraulic Super Single TXD 200 Rig - 2006 Built - For Sale
Mechanical Drilling Rig - 2006 Built - For Sale
2006 Built Hydraulic Super Single TXD 200 Rig for Sale
Hydraulic TXD 200 Rig for Sale
Used 2006 Built Super Single Rig for Sale
Used Hydraulic Super Single TXD 200 Rig for Sale
Description :
General Type : Hydraulic Super Single TXD 200 Year of Manufacturer : 2006
A. General Characteristics
Operating Capabilities Depth rating with 5 inch Drill Pipe : 2,500m (8,200ft) Maximum rated static hook load : 200,000 lb (90,909 kg) Gross Nominal Capacity (lb) : 200,000 lb (90,909 kg) Maximum top drive load (lb) : 200,000 lb (90,909 kg) Maximum operating wind speed (kt) : 93

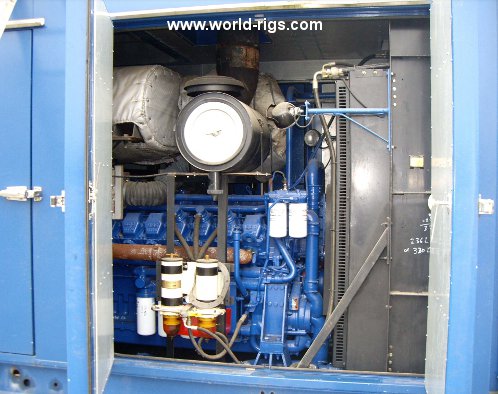

Rig Power System Main Drilling Unit Engine Make / Model : Detroit Engine DDC/MTU Quantity : 1 Prime Power (HP) : 760 Engine Speed (rpm) : 1800 Auxiliary air supply : Kaeser ASD 37 Maximum Pressure : 11 bar Maximum output : 110 cfm or 3.1 m³/min Additional equipment : 110 cfm or 3.1 m³/min Additional equipment : Kaeser TC36 air dryer and airline lubricators Power supply unit : 1 x Genset 550kVA, 400 volts at 50Hz. Containerised and silenced Power Distribution : Containerized distribution unit.
Fuel Supply Rig fuel tank : 2 x 110 gal (415 lt) fuel tanks.
Rig site Diesel fuel tank : 1 No. 30,000 litre bunded tank, transfer pump and supply manifold. Automated Monitoring with GSM Sim card alerts to fuel companies and management.
Automated feed system : Rig, Pumps and Rig generator feed from auto fuelling system. Average fuel consumption : 130-210Lt per hour
Hydraulic System Quantity hydraulic fixed pumps : 3 Quantity hydraulic variable pumps : 7 All hydraulic circuits are filtered to : 7 microns System capacity : 798lt (210gl)
Remote Hydraulic Supply Separate hydraulic pump and controls plumbed to outlet ports with twin quick connect fittings are mounted to provide hydraulic oil supply for customer’s auxiliary equipment
Maximum Oil Flow : 58 gpm Maximum Pressure : 5000 psi Horsepower Requirement : 175 hp approx.
B. Drilling Equipment

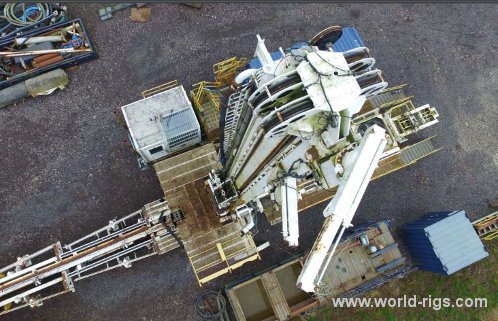

Telescopic Mast
Mast height (Max ): 23.7m (78’) Top drive travel : 50ft Gross nominal capacity : 200,000 lb (90,909 kg) Pull-down capacity : 32,000 lb (14,545 kg)
Substructure Trailer Mounted, Highly mobile configuration complete with automated pipe handler Full length Sub Base : 16.5m long x 600mm high x 3m wide, Weight: 25 Tonne Clear height below rotary beams : 3.96m (13ft) Adjustable
Feed Line System Line size : 2 x 27” PD Nylatron, 1½” OD 8 x 26 Wire Rope King strength : 128.2 tons per strand
Top Head Drive System Pipe Handling : Automated Hoist Capacity : 200,000 lb (90,909kg)
Rotary Table Mast Base : 30” (762mm) Spider Bowl : Full Circle (FCR) Slip type : Adapts Cavins Model F Power Slip, 2-” OD to 8” OD Range : Pneumatic Power : 400,000lbs
C. Rig Floor Handling Equipment
Automated Pipe & Casing Handling System Tubular Length : 13.11m (43ft) Max Tubular Dia : 30” Slide Travel (ft) : 8 Load Height (inch) : 42” Size range of Drill Pipe : Up to 10 ¾”
Pipe Racking Rig racks : Approximately 38 pcs of 4 1/2” OD upset range 2 or 3 drill pipes in one layer. Separate Racks : 4 No. 8.5m long x 1.07m high
Power Breakout With slips Range : 4½” - 8” diameter Maximum clamp force : Adjustable to 47,000 lb Maximum make-up torque (ft lb) : 53,000 Maximum break-up torque (ft lb) : 53,000 Mobile Breakout system (Scorpion) : 1 unit
Bit Subs Quantity : 1 Size (inch) : 4½” to 12 ¼”
Bit Subs Load capacity (lb) : 2,400 kg (5,300 lb) Drum Speed : 151 – 165 fpm Located at : Top right hand side of the outer mast Type of brakes : Automatic spring applied, hydraulic release Capacity : 150ft (46m) of ½” HSLR cable
Survey Winch Capacity : 3,300m(10,826ft) x .092” survey line Max load rating : 3,000lbs
Drill Collar Safety Clamp Quantity : 2 Size range (inch) : Up to 9 5/8”
D. Mud System

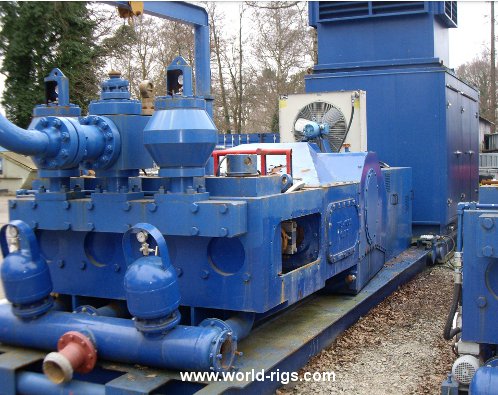

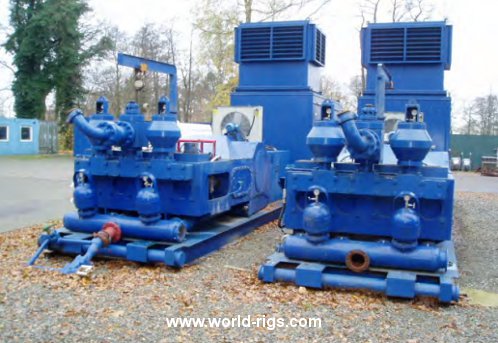

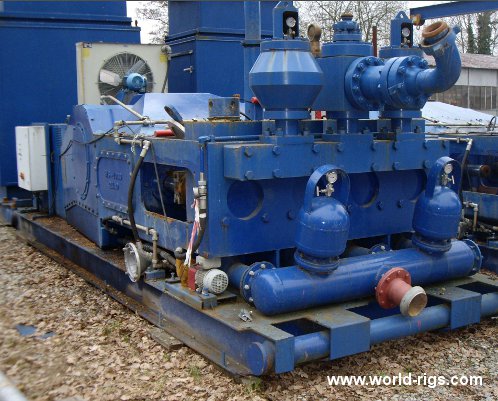

Mud Pumps Mud pump make / model : White Star /WS 1,000 Quadraplex Quantity : 2 Output (Combined) GPM/LPM : 6” liners - 1,410 GPM (5,336 LPM) Liner sizes available (inch) : 4” - 6½” Pump Motor : Detriot Diesel corporation Motor rated capacity (HP) : 1,050 HP Pulsation dampener make / type : White Star 7.5 gallon (Hydril type) Pressure rating (psi) : 5000 psi
Stand Pipe Stand pipe type / size (inch) : 4” Pressure rating (psi) : 5,000 psi Gauge make / type : Perma-CAL 3 ½” ID x 5,000 psi

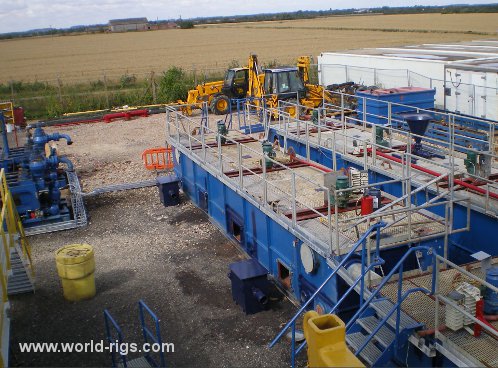

Solids Control Equipment
Shale Shaker Make / Model : Mud Data 803 SD Linear Motion Shale Shaker Quantity : 2 Vibrating Strength : Up to 8.0G(Adjustable) Treating capacity (each) : 444 GPM (2,000 LPM) Screen Area : 2.8m²
Centrifugal Pumps : 4” x 18 Model : Mission magnum Quantity : 2 x Mix pumps Flow : 2 x Charge Pumps 1 x Trip tank pump 1 x Drill water pump
Water Tanks Drilling water Storage tank : 22,000lt (160bbl) Fire Water tank : 44,000lt (280bbl)
E. Blowout Preventer, Control Equipment and Associated Equipment
Annular Preventer Annular Preventer make / type : White Star /WS 1,000 Quadraplex Size : 11” Working pressure (psi) : 5,000 psi
Ram Type Preventer Double ram BOP make / type : Hydril double 11” x 5000 psi Size : 11” Working pressure (psi) : 5,000 psi
Rams for Ram Type Preventer Variable Rams Blind Shear Rams : 11” 1 No. set Fixed-Bore Pipe Rams : 1 No set of each 3 ½”
Accumulator Unit and Controls Accumulator Unit make / type : 210 Gallon, 5 station, By-Pass Valve, Air Actuation with Remote Panel
Number / total capacity of bottle (gal) : 12 x 11gl bottles = 132gallon
Test Pump : 1 No 10,000 psi Single Pump Hydrostatic Portable Test Unit with ITT Barton Chart Recorder
Choke Manifold Choke manifold make / type : 1 No 3 1/8” DMS 5,000 psi with two manual adjustable chokes Pressure rating (psi) : 5,000 psi Drilling chokes quantity : 2 No.
Coflexip Hose for BOP / Choke Manifold Fire proof, acid resistant, steelbanded flexible hose for connecting the BOP stack to the choke manifold : 3” x 5,000 psi with 2 No 3″ 5,000 psi, Mc Evoy valves and choke hose
Top Hole Diverter Equipment Drilling Spool with 8” outlet, 60ft of 8” steel flanged pipe work. Steel containment tank
G. Drill String
Drill Pipe 3½” S135 Range II Premium NC38 : 220 Joints - 2,000m (6,500ft)
Heavy Weight Drill Pipe 5” x 4½” IF Hard Banded – Range II : 6 No. (180ft) 3½” x 3½ IF Hard Banded – Range II : 6 No. (258ft)
Drill collars 6¾” x 4½”IF – Range 2 : 8 No. (248ft) 4¾ x 3½” IF – Range 2 : 12 No. (372ft)
H. Drilling Instrumentation and Control Equipment

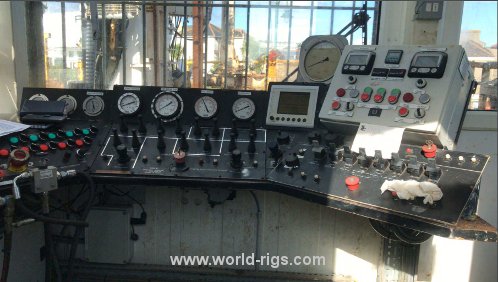

Drillers Console
Schramm iControl • Weight on bit(WOB)in pounds (lbs). • Rotation speed in revolutions per minute (rpm). • Rotation torque in foot pounds (ft-lbs). • Bit depth in feet(ft). • Line pressure. • Air compressor sump pressure. • Air compressor temperature. • Hydraulic oil temperature • All engine information & diagnostic codes. • All drill rig diagnostic codes in easy to read text
I. Other Equipment
Air Drilling Package(Not inlcuded in day rate)
Schramm iControl
WorldRigs has Hydraulic Super Single TXD 200 Rig - For Sale
Images
Hydraulic Super Single TXD 200 Rig for Sale
Hydraulic Super Single TXD 200 Rig - 2006 Built - For Sale
Mechanical Drilling Rig - 2006 Built - For Sale
2006 Built Hydraulic Super Single TXD 200 Rig for Sale
Hydraulic TXD 200 Rig for Sale
Used 2006 Built Super Single Rig for Sale
Used Hydraulic Super Single TXD 200 Rig for Sale
Hydraulic Super Single TXD 200 Rig for Sale
Hydraulic Super Single TXD 200 Rig - 2006 Built - For Sale
Mechanical Drilling Rig - 2006 Built - For Sale
2006 Built Hydraulic Super Single TXD 200 Rig for Sale
Hydraulic TXD 200 Rig for Sale
Used 2006 Built Super Single Rig for Sale
Used Hydraulic Super Single TXD 200 Rig for Sale
Description :
General Type : Hydraulic Super Single TXD 200 Year of Manufacturer : 2006
A. General Characteristics
Operating Capabilities Depth rating with 5 inch Drill Pipe : 2,500m (8,200ft) Maximum rated static hook load : 200,000 lb (90,909 kg) Gross Nominal Capacity (lb) : 200,000 lb (90,909 kg) Maximum top drive load (lb) : 200,000 lb (90,909 kg) Maximum operating wind speed (kt) : 93
Rig Power System Main Drilling Unit Engine Make / Model : Detroit Engine DDC/MTU Quantity : 1 Prime Power (HP) : 760 Engine Speed (rpm) : 1800 Auxiliary air supply : Kaeser ASD 37 Maximum Pressure : 11 bar Maximum output : 110 cfm or 3.1 m³/min Additional equipment : 110 cfm or 3.1 m³/min Additional equipment : Kaeser TC36 air dryer and airline lubricators Power supply unit : 1 x Genset 550kVA, 400 volts at 50Hz. Containerised and silenced Power Distribution : Containerized distribution unit.
Fuel Supply Rig fuel tank : 2 x 110 gal (415 lt) fuel tanks.
Rig site Diesel fuel tank : 1 No. 30,000 litre bunded tank, transfer pump and supply manifold. Automated Monitoring with GSM Sim card alerts to fuel companies and management.
Automated feed system : Rig, Pumps and Rig generator feed from auto fuelling system. Average fuel consumption : 130-210Lt per hour
Hydraulic System Quantity hydraulic fixed pumps : 3 Quantity hydraulic variable pumps : 7 All hydraulic circuits are filtered to : 7 microns System capacity : 798lt (210gl)
Remote Hydraulic Supply Separate hydraulic pump and controls plumbed to outlet ports with twin quick connect fittings are mounted to provide hydraulic oil supply for customer’s auxiliary equipment
Maximum Oil Flow : 58 gpm Maximum Pressure : 5000 psi Horsepower Requirement : 175 hp approx.
B. Drilling Equipment
Telescopic Mast
Mast height (Max ): 23.7m (78’) Top drive travel : 50ft Gross nominal capacity : 200,000 lb (90,909 kg) Pull-down capacity : 32,000 lb (14,545 kg)
Substructure Trailer Mounted, Highly mobile configuration complete with automated pipe handler Full length Sub Base : 16.5m long x 600mm high x 3m wide, Weight: 25 Tonne Clear height below rotary beams : 3.96m (13ft) Adjustable
Feed Line System Line size : 2 x 27” PD Nylatron, 1½” OD 8 x 26 Wire Rope King strength : 128.2 tons per strand
Top Head Drive System Pipe Handling : Automated Hoist Capacity : 200,000 lb (90,909kg)
Rotary Table Mast Base : 30” (762mm) Spider Bowl : Full Circle (FCR) Slip type : Adapts Cavins Model F Power Slip, 2-” OD to 8” OD Range : Pneumatic Power : 400,000lbs
C. Rig Floor Handling Equipment
Automated Pipe & Casing Handling System Tubular Length : 13.11m (43ft) Max Tubular Dia : 30” Slide Travel (ft) : 8 Load Height (inch) : 42” Size range of Drill Pipe : Up to 10 ¾”
Pipe Racking Rig racks : Approximately 38 pcs of 4 1/2” OD upset range 2 or 3 drill pipes in one layer. Separate Racks : 4 No. 8.5m long x 1.07m high
Power Breakout With slips Range : 4½” - 8” diameter Maximum clamp force : Adjustable to 47,000 lb Maximum make-up torque (ft lb) : 53,000 Maximum break-up torque (ft lb) : 53,000 Mobile Breakout system (Scorpion) : 1 unit
Bit Subs Quantity : 1 Size (inch) : 4½” to 12 ¼”
Bit Subs Load capacity (lb) : 2,400 kg (5,300 lb) Drum Speed : 151 – 165 fpm Located at : Top right hand side of the outer mast Type of brakes : Automatic spring applied, hydraulic release Capacity : 150ft (46m) of ½” HSLR cable
Survey Winch Capacity : 3,300m(10,826ft) x .092” survey line Max load rating : 3,000lbs
Drill Collar Safety Clamp Quantity : 2 Size range (inch) : Up to 9 5/8”
D. Mud System
Mud Pumps Mud pump make / model : White Star /WS 1,000 Quadraplex Quantity : 2 Output (Combined) GPM/LPM : 6” liners - 1,410 GPM (5,336 LPM) Liner sizes available (inch) : 4” - 6½” Pump Motor : Detriot Diesel corporation Motor rated capacity (HP) : 1,050 HP Pulsation dampener make / type : White Star 7.5 gallon (Hydril type) Pressure rating (psi) : 5000 psi
Stand Pipe Stand pipe type / size (inch) : 4” Pressure rating (psi) : 5,000 psi Gauge make / type : Perma-CAL 3 ½” ID x 5,000 psi
Solids Control Equipment
Shale Shaker Make / Model : Mud Data 803 SD Linear Motion Shale Shaker Quantity : 2 Vibrating Strength : Up to 8.0G(Adjustable) Treating capacity (each) : 444 GPM (2,000 LPM) Screen Area : 2.8m²
Centrifugal Pumps : 4” x 18 Model : Mission magnum Quantity : 2 x Mix pumps Flow : 2 x Charge Pumps 1 x Trip tank pump 1 x Drill water pump
Water Tanks Drilling water Storage tank : 22,000lt (160bbl) Fire Water tank : 44,000lt (280bbl)
E. Blowout Preventer, Control Equipment and Associated Equipment
Annular Preventer Annular Preventer make / type : White Star /WS 1,000 Quadraplex Size : 11” Working pressure (psi) : 5,000 psi
Ram Type Preventer Double ram BOP make / type : Hydril double 11” x 5000 psi Size : 11” Working pressure (psi) : 5,000 psi
Rams for Ram Type Preventer Variable Rams Blind Shear Rams : 11” 1 No. set Fixed-Bore Pipe Rams : 1 No set of each 3 ½”
Accumulator Unit and Controls Accumulator Unit make / type : 210 Gallon, 5 station, By-Pass Valve, Air Actuation with Remote Panel
Number / total capacity of bottle (gal) : 12 x 11gl bottles = 132gallon
Test Pump : 1 No 10,000 psi Single Pump Hydrostatic Portable Test Unit with ITT Barton Chart Recorder
Choke Manifold Choke manifold make / type : 1 No 3 1/8” DMS 5,000 psi with two manual adjustable chokes Pressure rating (psi) : 5,000 psi Drilling chokes quantity : 2 No.
Coflexip Hose for BOP / Choke Manifold Fire proof, acid resistant, steelbanded flexible hose for connecting the BOP stack to the choke manifold : 3” x 5,000 psi with 2 No 3″ 5,000 psi, Mc Evoy valves and choke hose
Top Hole Diverter Equipment Drilling Spool with 8” outlet, 60ft of 8” steel flanged pipe work. Steel containment tank
G. Drill String
Drill Pipe 3½” S135 Range II Premium NC38 : 220 Joints - 2,000m (6,500ft)
Heavy Weight Drill Pipe 5” x 4½” IF Hard Banded – Range II : 6 No. (180ft) 3½” x 3½ IF Hard Banded – Range II : 6 No. (258ft)
Drill collars 6¾” x 4½”IF – Range 2 : 8 No. (248ft) 4¾ x 3½” IF – Range 2 : 12 No. (372ft)
H. Drilling Instrumentation and Control Equipment
Drillers Console
Schramm iControl • Weight on bit(WOB)in pounds (lbs). • Rotation speed in revolutions per minute (rpm). • Rotation torque in foot pounds (ft-lbs). • Bit depth in feet(ft). • Line pressure. • Air compressor sump pressure. • Air compressor temperature. • Hydraulic oil temperature • All engine information & diagnostic codes. • All drill rig diagnostic codes in easy to read text
I. Other Equipment
Air Drilling Package(Not inlcuded in day rate)
Schramm iControl
WorldRigs has Hydraulic Super Single TXD 200 Rig - For Sale
Images
Hydraulic Super Single TXD 200 Rig for Sale
Hydraulic Super Single TXD 200 Rig - 2006 Built - For Sale
Mechanical Drilling Rig - 2006 Built - For Sale
2006 Built Hydraulic Super Single TXD 200 Rig for Sale
Hydraulic TXD 200 Rig for Sale
Used 2006 Built Super Single Rig for Sale
Used Hydraulic Super Single TXD 200 Rig for Sale
If you are interested in the featured equipment,
please contact us on email or call +65 97768837.
