| Specifications : |

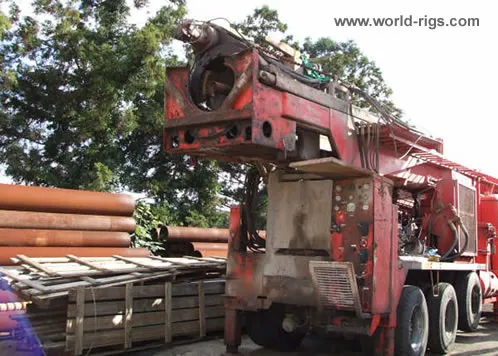

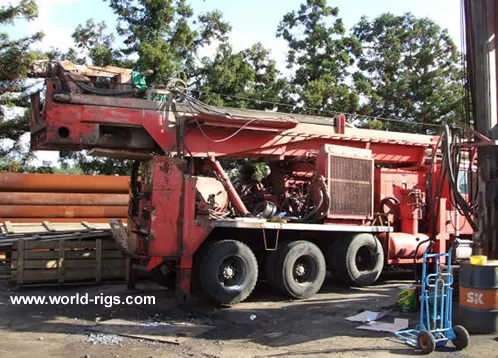

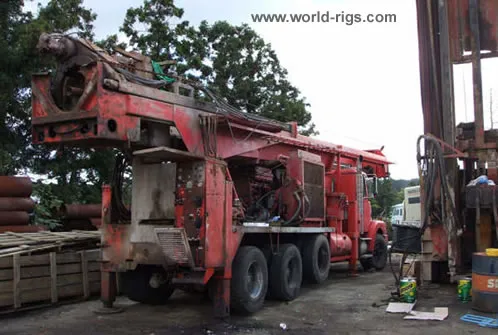

Foremost Barber DR12/36 Drilling Rig For Sale
1995 Built Foremost Barber DR12/36 Drilling Rig
1995 Foremost Barber DR12/36 drill rig
Sullair 1150 CFM / 350 PSI Air Compressor
Cummins KTA19 Diesel Deck Engine (2 Stage) - 600 HP @ 2100 RPM
Cat 12 GPM triplex water injection pump @ 600 psi
Lower Rotary Casing Drive
Opening : 24.7" (627mm)
Stroke : 12' (3 660mm)
Rotation : 0-22rpm
Torque(max) : 1,000,000 lb.in., (113 000Nm)
Hoist Capacity : 72,000 lbs (33,000kg)
combined with top drive 108,000 lb (49,000kg)
Pull Down Capacity : 33,000 lbs (15,000kg)
Top Drive
Stroke : 26' (7 930mm)
Rotation : 0-90 rpm
Torque(max) : 84,000 lbs. in., (9 470Nm)
Hoist Capacity : 37,400 lb.in (17,000kg)
Pull Down Capacity : 16,500lb (7,500kg)
Hoist Speed : 0-64 ft./min (0-20m/min)
Jib Boom / Winch: Pullmaster M5 winch with 120' ft of wire rope single line pull of 6,000 lbs
Mounted on a Volvo GMC truck
Cummins L10 Diesel Engine at 300 HP @ 2100 RPM
Transmission : Fuller RTX11708LL
10" inch drill pipes (100 meters availiable for an extra cost)
Accessories at an Extra Cost:
Drill Pipe (4 1/2" x 30' ft) 15 unitsDrill Pipe (30' ft) 18 unitsHammer Bits (15"-17")Hammer Bit (12")Spindle Adapter (4 1/2" * 1) and (10" * 1)Casing Jaw 10" one set , 16" one set and 24" one setDischarge Swivel * 1
Location: South Korea
|
